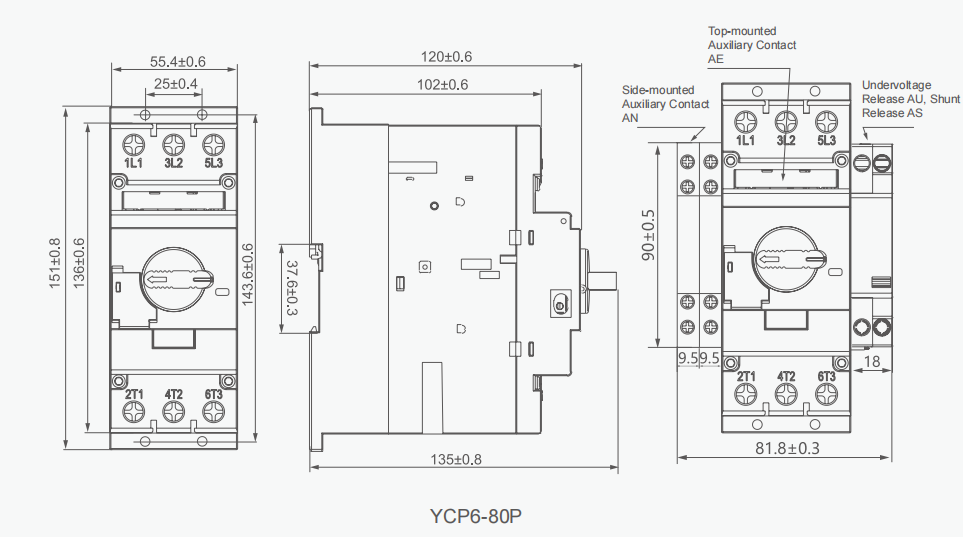

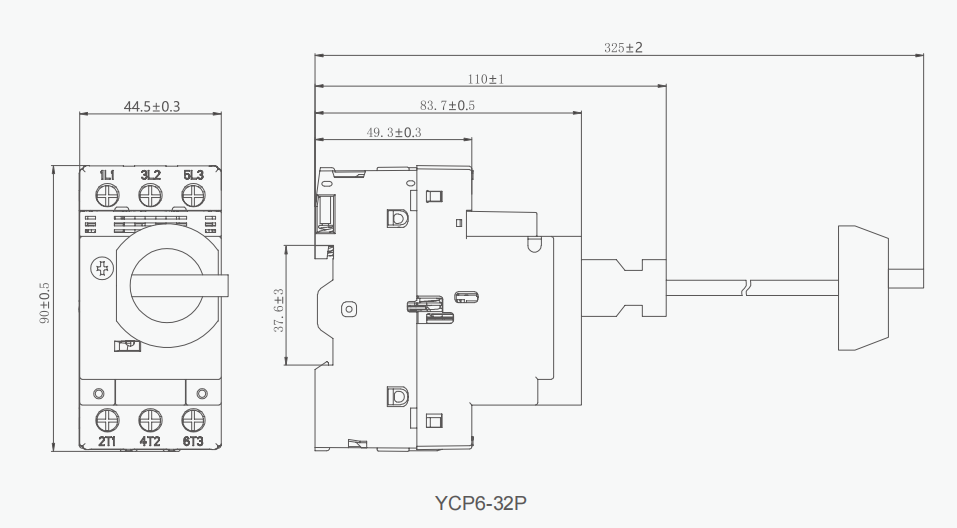

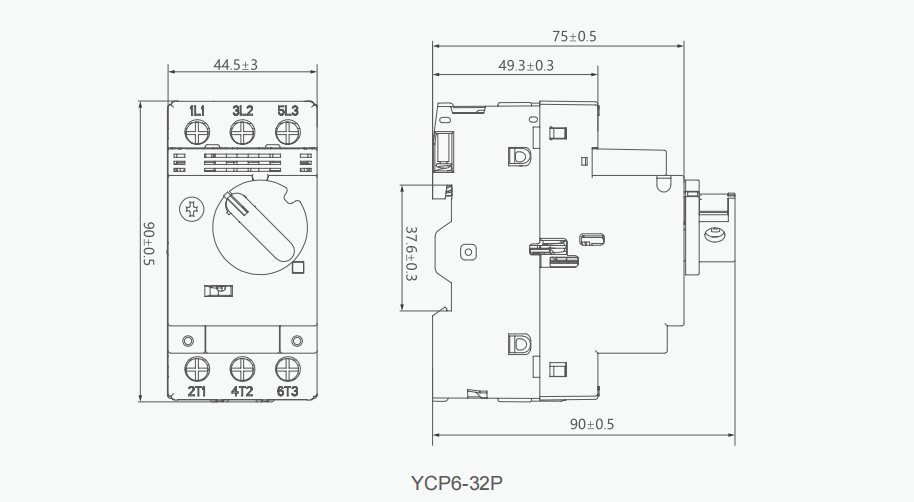

| Model | Frame current | Operating method | Rated current | |
| YCP6 | 32 | P | 0.16 | |
| Motor Circuit Breaker | 32:32A 80:80A |
P: Knob operation | 32A: 0.16 0.25 0.4 0.63 1 1.6 2.5 4 6.3 10 14 18 23 25 32 |
80A: 25 32 40 50 65 73 80 |
| Model | Rated currentln (A) |
Setting current adjustment range (A) |
Rated ultimate short-circuit breaking capacity ICU,rated operating short circuit breaking capacity ICS (KA) | Flashover distance (mm) |
|||||||
| Standard Breaking Capacity | High Breaking Capacity | ||||||||||
| 400/415V | 690V | 400/415V | 690V | ||||||||
| ICU | ICS | ICU | ICS | ICU | ICS | ICU | ICS | ||||
| YCP6-32P-0.16 | 0.16 | 0.1-0.16 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 40 |
| YCP6-32P-0.25 | 0.25 | 0.16-0.25 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 40 |
| YCP6-32P-0.4 | 0.4 | 0.25-0.4 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 40 |
| YCP6-32P-0.63 | 0.63 | 0.4-0.63 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 40 |
| YCP6-32P-1 | 1 | 0.63-1 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 40 |
| YCP6-32P-1.6 | 1.6 | 1-1.6 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 40 |
| YCP6-32P-2.5 | 2.5 | 1.6-2.5 | 100 | 100 | 3 | 2.25 | 100 | 100 | 8 | 8 | 40 |
| YCP6-32P-4 | 4 | 2.5-4 | 100 | 100 | 3 | 2.25 | 100 | 100 | 8 | 8 | 40 |
| YCP6-32P-6.3 | 6.3 | 4-6.3 | 100 | 100 | 3 | 2.25 | 100 | 100 | 6 | 6 | 40 |
| YCP6-32P-10 | 10 | 6-10 | 100 | 100 | 3 | 2.25 | 100 | 100 | 6 | 6 | 40 |
| YCP6-32P-14 | 14 | 9-14 | 15 | 7.5 | 3 | 2.25 | 100 | 100 | 6 | 6 | 40 |
| YCP6-32P-18 | 18 | 13-18 | 15 | 7.5 | 3 | 2.25 | 50 | 25 | 4 | 4 | 40 |
| YCP6-32P-23 | 23 | 17-23 | 15 | 6 | 3 | 2.25 | 50 | 25 | 4 | 4 | 40 |
| YCP6-32P-25 | 25 | 20-25 | 15 | 6 | 3 | 2.25 | 50 | 25 | 4 | 4 | 40 |
| YCP6-32P-32 | 32 | 24-32 | 10 | 6 | 3 | 2.25 | 50 | 25 | 4 | 4 | 40 |
| YCP6-80P-25 | 25 | 17-25 | 1 | / | / | 1 | 100 | 100 | 6 | 3 | 50 |
| YCP6-80P-32 | 32 | 23-32 | / | 1 | / | 1 | 100 | 100 | 6 | 3 | 50 |
| YCP6-80P-40 | 40 | 30-40 | 1 | / | / | 1 | 50 | 50 | 6 | 3 | 50 |
| YCP6-80P-50 | 50 | 37-50 | 1 | / | / | 1 | 50 | 50 | 6 | 3 | 50 |
| YCP6-80P-65 | 65 | 48-65 | 1 | / | / | / | 50 | 50 | 6 | 3 | 50 |
| YCP6-80P-73 | 73 | 62-73 | 1 | 1 | / | 1 | 50 | 30 | 6 | 3 | 50 |
| YCP6-80P-80 | 80 | 70-80 | 1 | / | / | 1 | 50 | 30 | 6 | 3 | 50 |
| Type | Standard power ratings of 3-phase molors 50/60Hz in category AC-3 | Current setting range | |||||
| 230/240V | 400V | 415V | 440V | 500V | 690V | ||
| kW | kW | kW | kW | kW | kW | ||
| YCP6-32P-0.16 | - | - | - | - | - | 0.1-0.16 | |
| YCP6-32P-0.25 | - | - | - | - | 0.16-0.25 | ||
| YCP6-32P-0.4 | - | - | - | - | - | - | 0.25-0.4 |
| YCP6-32P-0.63 | - | - | - | - | - | 0.37 | 0.4-0.63 |
| YCP6-32P-1 | - | - | 0.37 | 0.37 | 0.55 | 0.63-1 | |
| YCP6-32P-1.6 | - | 0.37 | - | 0.55 | 0.75 | 1.1 | 1-1.6 |
| YCP6-32P-2.5 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
| YCP6-32P-4 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4 |
| YCP6-32P-6.3 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4-6.3 |
| YCP6-32P-10 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6-10 |
| YCP6-32P-14 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 9 | 9-14 |
| YCP6-32P-18 | 4 | 7.5 | 9 | 9 | 9 | 11 | 13-18 |
| YCP6-32P-23 | 5.5 | 11 | 11 | 11 | 11 | 15 | 17-23 |
| YCP6-32P-25 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 20-25 |
| YCP6-32P-32 | 7.5 | 15 | 15 | 15 | 18.5 | 25 | 24-32 |
| YCP6-80P-25 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 17-25 |
| YCP6-80P-32 | 7.5 | 15 | 15 | 15 | 18.5 | 22 | 23-32 |
| YCP6-80P-40 | 1 | 18.5 | 18.5 | 1 | 1 | 30 | 30-40 |
| YCP6-80P-50 | / | 30 | 30 | 1 | / | 45 | 37-50 |
| YCP6-80P-65 | 1 | 30 | 30 | 1 | / | 45 | 48-65 |
| YCP6-80P-73 | 1 | 37 | 37 | / | 1 | 55 | 62-73 |
| YCP6-80P-80 | 1 | 37 | 37 | / | / | 55 | 70-80 |
| Type | Frame size rated current Inm | Hourly operation cycles | Operation cycle number | ||||||
| Electrical life | Mechanical life | ||||||||
| YCP6-32P | 32 | 120 | 10000 | 100000 | |||||
| YCP6-80P | 80 | 120 | 10000 | 20000 | |||||
| Type | Distribution breaker | Circumstance temperature |
|||||||
| Setting current multiple | Tripping time | Status | |||||||
| YCP6-32P YCP6-80P |
1.05 | 1h non-tripping | Initial | +20℃±2℃ | |||||
| 1.3 | 1h tripping | Following serial 1 | |||||||
| 1.5 | <2min tripping | ||||||||
| Type | Distribution breaker | Circumstance temperature |
|||||||
| Setting current multiple | Tripping time | Status | |||||||
| YCP6-32P YCP6-80P |
1.05 | 2h non-tripping | Initial | +20℃±2℃ | |||||
| 1.2 | 2h tripping | Following serial 1 | |||||||
| 1.5 | Action within 2 minutes | ||||||||
| 7.2 | 2~10s 2h tripping | Initial | |||||||
| Type | Setting current multiple | Status | Specified time |
Expected results |
Circumstance temperature |
||||
| Any two-phase | Third phase | ||||||||
| YCP6-32P YCP6-80P |
1.0 | 0.9 | Cold state | t≥2h | non-tripping | +20℃±2℃ | |||
| 1.15 | 0 | Thermal state (In immediate order 1.) |
t≤2h | tripping | |||||
| Type | Test current | Start status | Specified time | Expected results | Circumstance temperature | ||||
| YCP6-32P YCP6-80P |
0.8×12×In | Cold state | t≥0.2s | non-tripping | +20℃±5℃ | ||||
| 1.2×12×In | Cold state | t≤0.2s | tripping | +20℃±5℃ | |||||
| Attachment Name | YCP6-32P/YCP6-80P | Accessory Specifications | |
| Undervoltage release | YCP6-AU115 | 110~150V,50Hz;127V,50Hz | |
| YCP6-32PAU225 | 220~240V,50Hz | ||
| YCP6-32PAU385 | 380~400V,50Hz;400V,60Hz | ||
| Shunt release | YCP6-32P AS115 | 110~150V,50Hz;127V,60Hz | |
| YCP6-32P AS225 | 220~240V,50Hz | ||
| YCP6-32P AS385 | 380~400V,50Hz;440V,60Hz | ||
| Instantaneous auxiliary contacts (front hanging) |
YCP6-32P AE20 | 2NO | |
| YCP6-32P AE11 | 1NO+1NC | ||
| Instantaneous auxiliary contacts (side hanging) |
YCP6-32PAN20 | 2NO | |
| YCP6-32P AN11 | 1NO+1NC | ||
| Fault signal contacts and instantaneous auxiliary contacts |
YCP6-32PAD1010 | Fault signal contact NO | NO |
| YCP6-32PAD1001 | NC | ||
| YCP6-32PAD0110 | Fault signal contact NC | NO | |
| YCP6-32PAD0101 | NC | ||
| Working with categories | AC-15 | DC-13 | |||||||||||||
| Rated operating voltage Ue(V) | 24 | 48 | 110/127 | 230/240 | 24 | 48 | 60 | ||||||||
| Rated operating current le(A) | 2 | 1.25 | 1 | 0.5 | 1 | 0.3 | 0.15 | ||||||||
| Normal working power P(W) | 48 | 60 | 127 | 120 | 24 | 15 | 9 | ||||||||
| Working with categories |
Connected | Division | Number of cycles and operating frequencies of the pass-through operation |
||||||||||||
| I/le | U/UE | cosφ or T0.95 |
I/le | U/UE | cos中or T0.95 |
Number of Operation Loops |
Number of operation cycles per minute |
Electrified time | |||||||
| AC-14 | 24 | 48 | 48 | 6 | 1.1 | 0.7 | 24 | 48 | 60 | ||||||
| AC-15 | 2 | 1.25 | 1.25 | 10 | 1.1 | 0.3 | 1 | 0.3 | 0.15 | ||||||
| DC-13 | 48 | 60 | 60 | 1.1 | 1.1 | 6Pe | 24 | 15 | 9 | ||||||
A motor starter is a device used to start, stop, and protect an electric motor. It helps control motor operation while providing protection against faults such as overload, short circuit, and phase failure. In many industrial applications, a motor starter improves operational safety and helps extend motor service life.
A standard circuit breaker mainly protects the circuit from overload and short circuit, while a motor starter is designed specifically for motor applications. A motor starter can combine isolation, switching, overload protection, short circuit protection, and motor-specific functions such as phase failure protection, making it more suitable for motor control systems.
A contactor is primarily used to switch the motor on and off, while a motor starter usually includes both switching and protection functions. In practical applications, a motor starter can work independently or together with a contactor, depending on the control method and protection requirements of the motor system.
The right motor starter should be selected based on the motor’s rated current, voltage, power, and starting method. YCP6 supports applications up to AC 690V and 80A, with multiple adjustable current ranges for different motor sizes, making it suitable for a wide range of three-phase motor protection and control applications. :contentReference[oaicite:1]{index=1}
A motor starter can provide several important protection functions, including overload protection, short circuit protection, isolation protection, and phase failure protection. YCP6 also includes temperature compensation and is designed for direct starting and control of three-phase squirrel-cage asynchronous motors. :contentReference[oaicite:2]{index=2}
Phase failure protection helps prevent motor damage when one phase of a three-phase power supply is lost or becomes unbalanced. Without this protection, the motor may overheat, lose torque, or fail prematurely. This is an important function for maintaining reliable motor performance in industrial systems.
Yes, motor starters are widely used for three-phase motor applications. YCP6 is designed for direct start and control of three-phase squirrel-cage asynchronous motors and can also be used for distribution line protection and infrequent load switching. :contentReference[oaicite:3]{index=3}
A manual motor starter is a motor control device operated directly by a handle or rotary knob, allowing users to start or stop the motor manually while still providing protective functions. YCP6 uses knob operation and combines motor protection and control in one compact device. :contentReference[oaicite:4]{index=4}
Yes, overload protection is one of the core functions of a motor starter. It helps disconnect the motor when current remains above the safe operating range for too long, reducing the risk of overheating and winding damage. For motor applications, overload protection is essential for safe and reliable operation.
Depending on the application, a motor starter can be equipped with accessories such as auxiliary contacts, fault signal contacts, undervoltage release, shunt release, and external operating handles. YCP6 supports these accessory options, allowing more flexible control, signaling, and protection in motor control panels. :contentReference[oaicite:5]{index=5}
