YCMET-R British Distribution Box


YCMET-R British Distribution Box

All DANSON units are white coloured. All units feature a robust metalbase, lid & door. The DIN rail is complete with a useful alignment and fixing mechanismthat allows quickin stallation. Cable entry points are located on top, bottom, side andrear surfaces.

Main Incomer Rating: 4-way enclosures: 63A; 6, 8, 10, 12, 14, 16, 18& 24-way enclosures: 100A. Degree of protection to BS EN 60529 to IP2XC. Precautions must be taken to main tain theIP rating, e.g.use of cable glands and knockouts. BS EN 61439-3

Product Details

General

Main Incomer Rating: 4-way enclosures: 63A; 6, 8, 10, 12, 14, 16, 18& 24-way enclosures: 100A. Degree of protection to BS EN 60529 to IP2XC. Precautions must be taken to maintain theIP rating, e.g.use of cable glands and knockouts. BS EN 61439-3

Technical data

Model	Dimension(mm)
YCMET-R-4	11017591
YCMET-R-6	160259112
YCMET-R-8	196259112
YCMET-R-10	232259112
YCMET-R-12	268259112
YCMET-R-14	304259112
YCMET-R-16	376259112
YCMET-R-18	448259112
YCMET-R-24	484259112

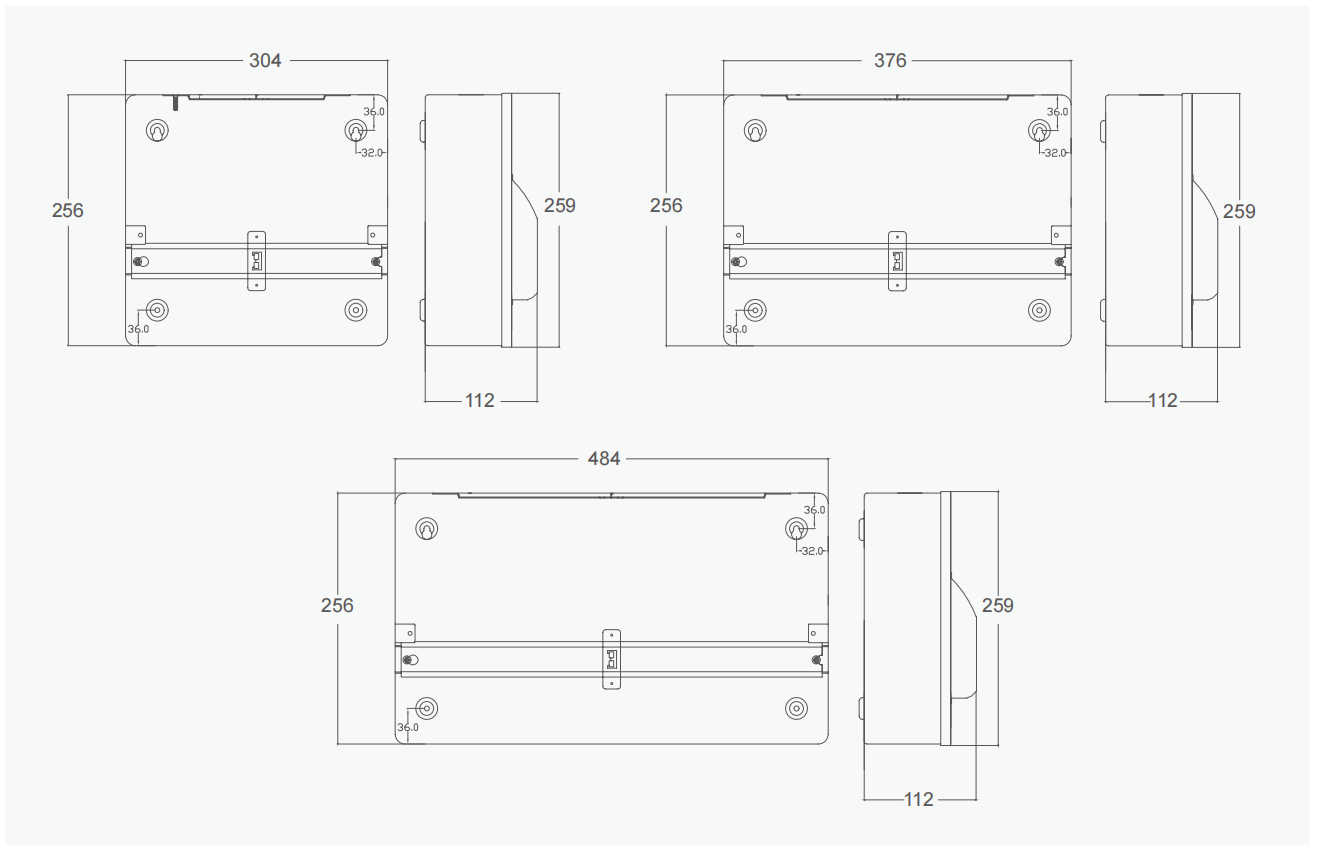

Overall and mounting dimensions(mm)

FAQ - YCMET-R Series

1. What are the material specifications for the YCMET-R enclosure?

The YCMET-R units are constructed with a robust metal base, lid, and door. They feature a clean white finish, providing both industrial durability and a professional aesthetic for modern installations.

2. What is the maximum incomer rating for a 12-way distribution box?

For mid-to-large capacity configurations, including the 12-way model, the YCMET-R series provides a 100A main incomer rating to support demanding residential and commercial loads.

3. Where are the cable entry points located on the unit?

To ensure maximum flexibility during site wiring, the enclosure is designed with multiple cable entry points located on the top, bottom, side, and rear surfaces.

4. Does the YCMET-R comply with British electrical standards?

Yes, the YCMET-R series is fully compliant with the BS EN 61439-3 standard, ensuring it meets rigorous safety and performance requirements for final distribution.

5. How does the DIN rail design simplify the installation process?

The unit is equipped with a DIN rail that features an integrated alignment and fixing mechanism. This specialized design allows for rapid and precise mounting of components, reducing labor time.
