YC7VAs-WIFI-kWH Overvoltage and Undervoltage Protector


YC7VAs-WIFI-kWH Overvoltage and Undervoltage Protector

YC7VAs-WIFI-kWh is an AC single-phase protector integrating adjustable overvoltage, undervoltage, overcurrent and leakage detection with WiFi energy metering. It disconnects faulty circuits, restores supply after a preset delay and enables app-based monitoring, timers and real-time power statistics.

Product Details

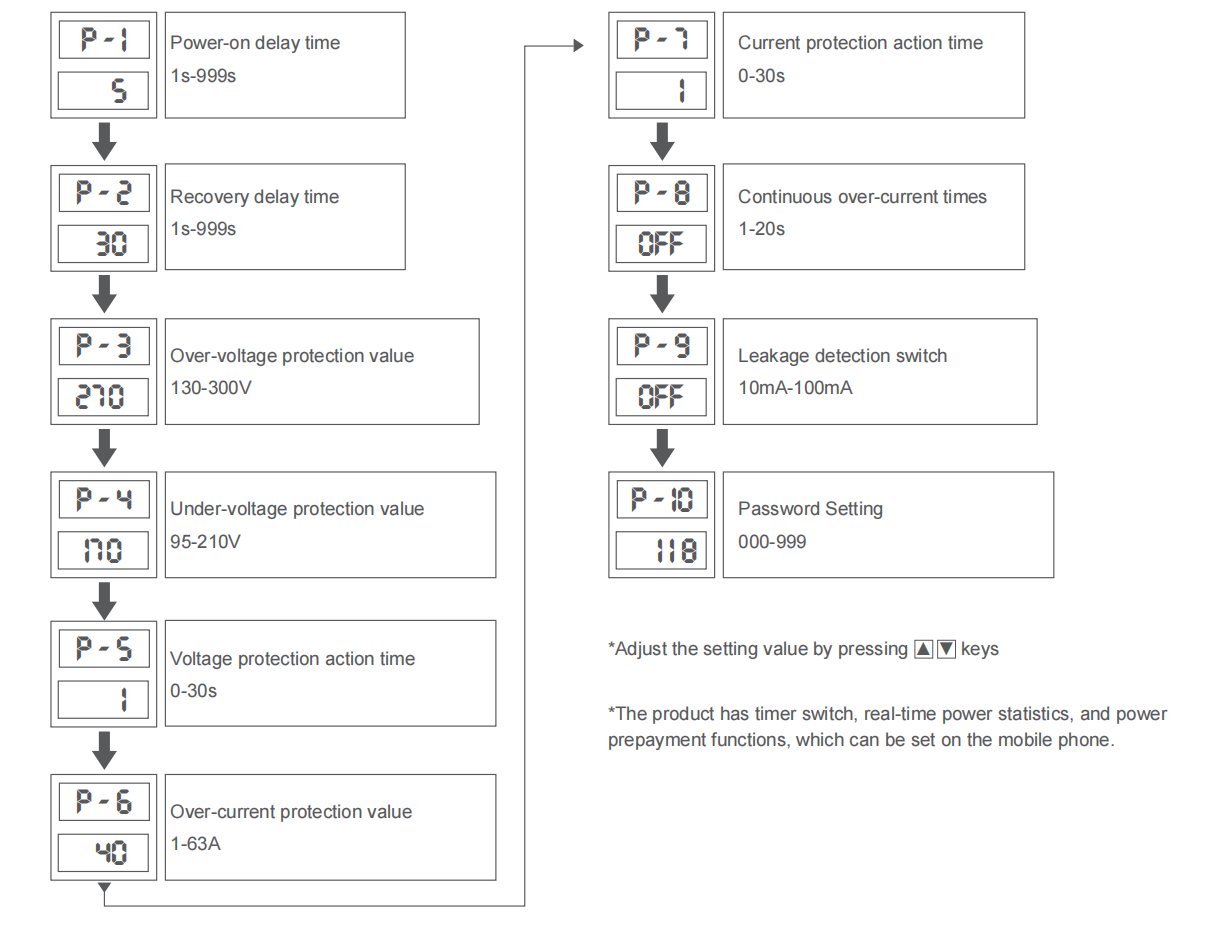

Function	Setting Range	Default Value
Input voltage	AC 95–300V
Power-on delay time	1–999s	5s
Over-voltage protection setting	130–300V	270V
Over-voltage recovery setting	125–295V	265V
Under-voltage protection setting	95–210V	170V
Under-voltage recovery setting	100–215V	175V
Overcurrent protection setting	1–63A (63A type)	40A
Continuous overcurrent trip count	1–20 times	OFF
Leakage current protection setting	10–100mA	OFF
Voltage protection trip delay	0–30s	1s
Recovery delay	1–999s	30s
Overcurrent protection trip delay	0–30s	1s
Mechanical endurance	≥100000 times
Power consumption	≤2W
Password setting	000–999	118
Dimensions	85 × 37 × 69 mm
