Universal Filter Group for Electrical Cabinets
Universal Filter Group for Electrical Cabinets
CNC Electric Universal Filter Group is designed for electrical cabinets, control panels, and enclosure ventilation systems. Available in models 801–806, with ABS resin body, nylon fiber composite filter, IP55 protection, and compatibility with different axial fan sizes.
Contact Us
Product Details

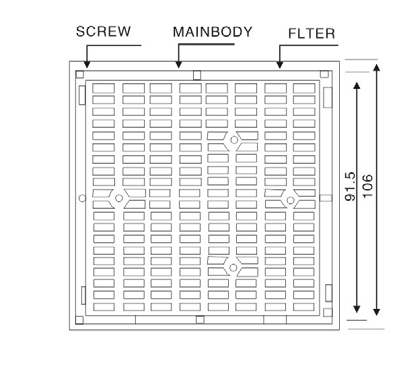

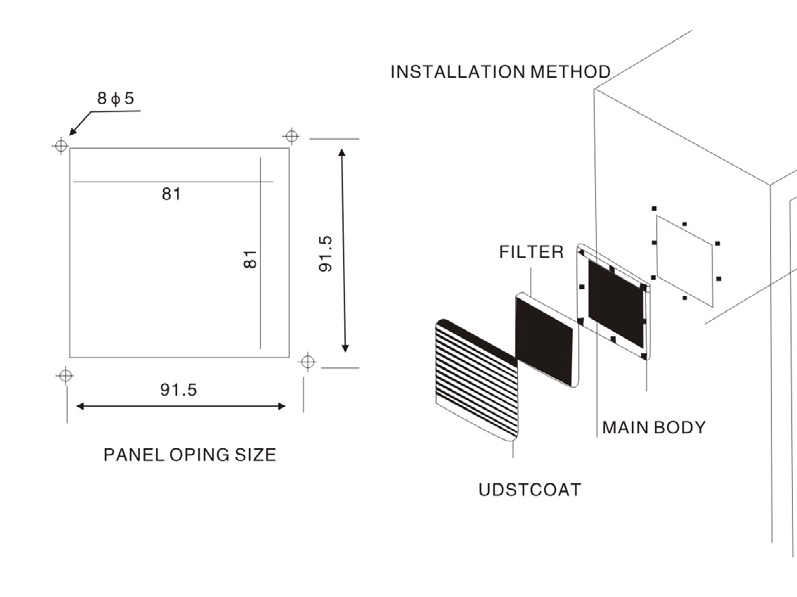

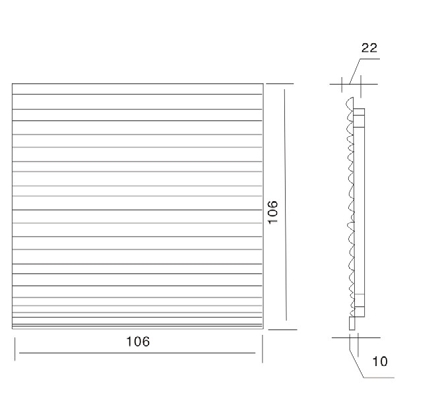

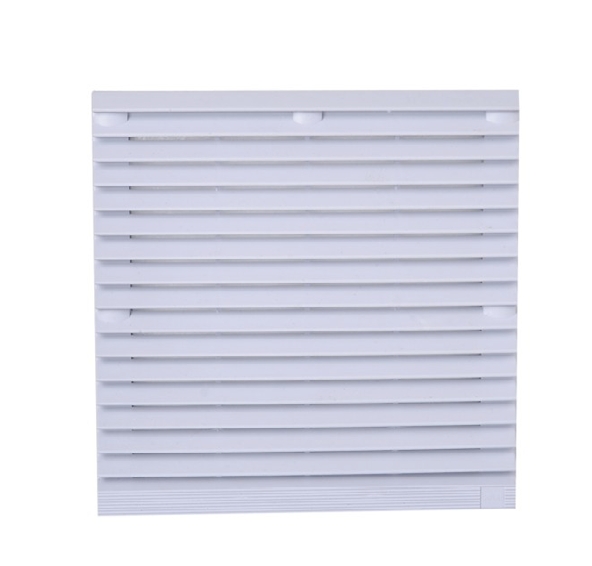

UniversalFilter Group:801
| Technical data | ||
| General Network Body Material | ABS Resin (Flammable, Ultraviolet Resistance)94V-O,UL Fire Line | |
| Filtration Material | Nylon Fiber Composite | |
| Filtration Pressure Loss | Initial 6.7mm End:20mm AQ | |
| Maximum wind speed | 1.5M/SEC | |
| All ranges | 50m³/MIN | |
| Preventive yield | AF186% (feed yeid:520g/m²) (JAPAN AIR FILTER INSTIUDE) | |
| General fan | Suitable for 80 fans: 8025/8038 | |
| Waterproof rating | IP55 | |
| Annex | Filter X 1pcs | Screw group X8 PCs |

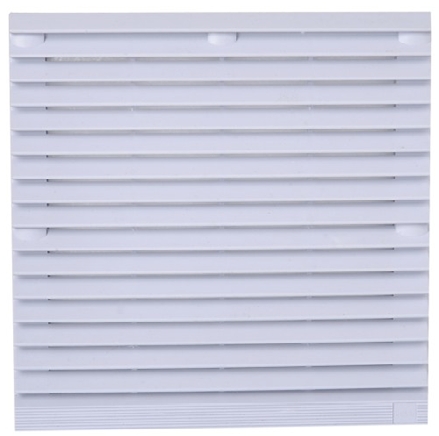

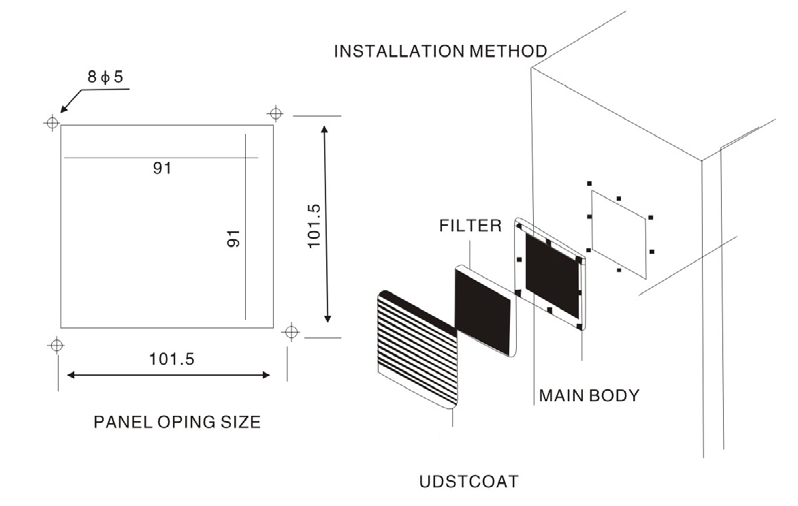

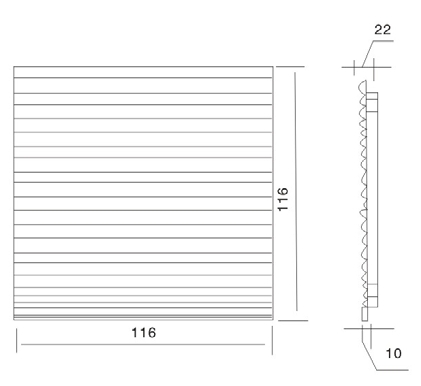

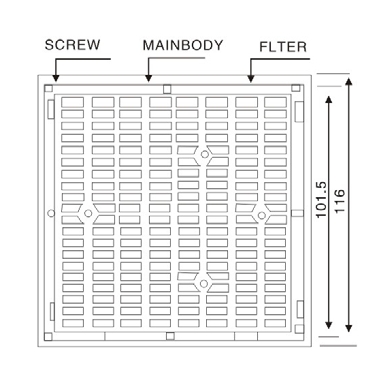

UniversalFilter Group:802
| Technical data | ||
| General Network Body Material | ABS Resin (Flammable, Ultraviolet Resistance)94V-O,UL Fire Line | |
| Filtration Material | Nylon Fiber Composite | |
| Filtration Pressure Loss | Initial 6.7mm End:20mm AQ | |
| Maximum wind speed | 1.5M/SEC | |
| All ranges | 50m³/MIN | |
| Preventive yield | AF186% (feed yeid:520g/m²) (JAPAN AIR FILTER INSTIUDE) | |
| General fan | Suitable for 80 fans: 8025/8038 | |
| Waterproof rating | IP55 | |
| Annex | Filter X 1pcs | Screw group X8 PCs |

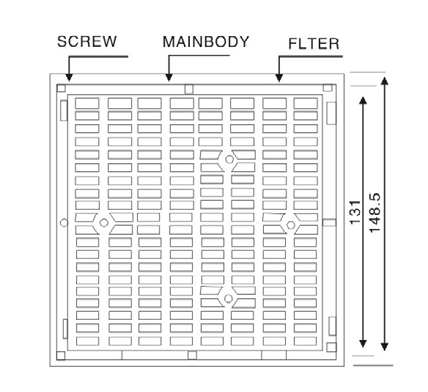

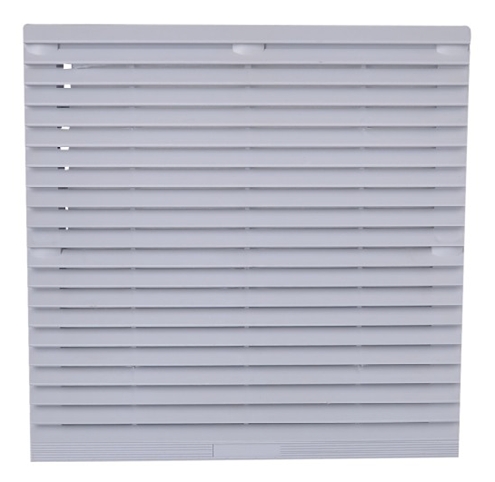

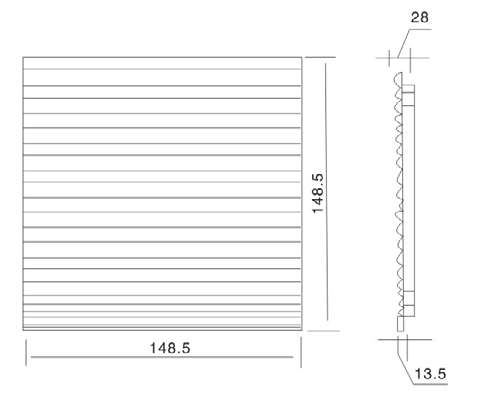

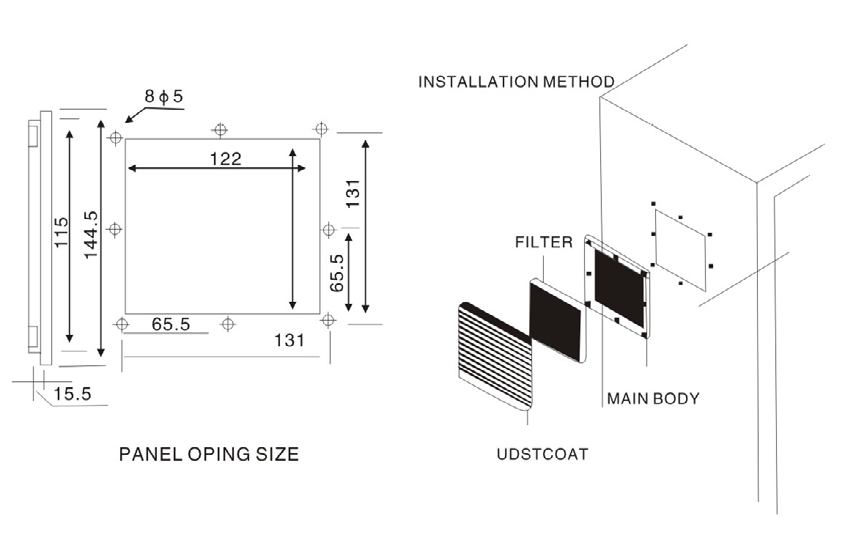

UniversalFilter Group:803
| Technical data | ||
| General Network Body Material | ABS Resin (Flammable, Ultraviolet Resistance)94V-O,UL Fire Line | |
| Filtration Material | Nylon Fiber Composite | |
| Filtration Pressure Loss | Initial 6.7mm End:20mm AQ | |
| Maximum wind speed | 1.5M/SEC | |
| All ranges | 50m³/MIN | |
| Preventive yield | AF186% (feed yeid:520g/m²) (JAPAN AIR FILTER INSTIUDE) | |
| General fan | Suitable for 80 fans: 8025/8038 | |
| Waterproof rating | IP55 | |
| Annex | Filter X 1pcs | Screw group X8 PCs |

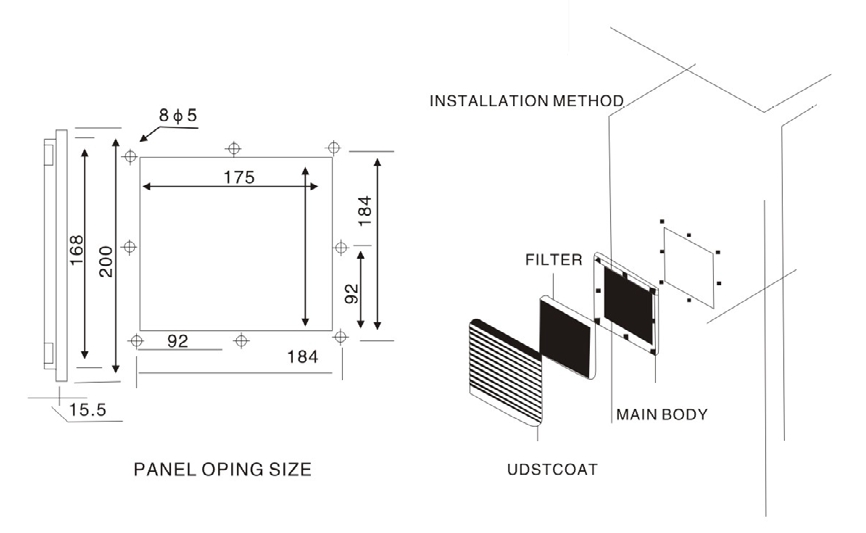

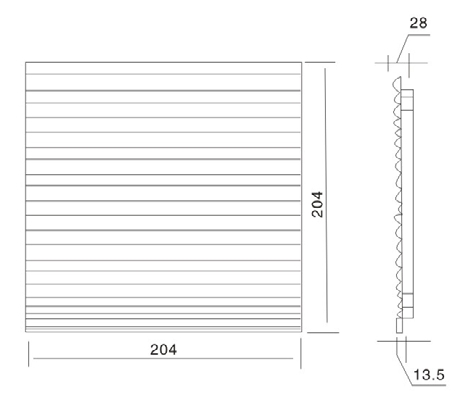

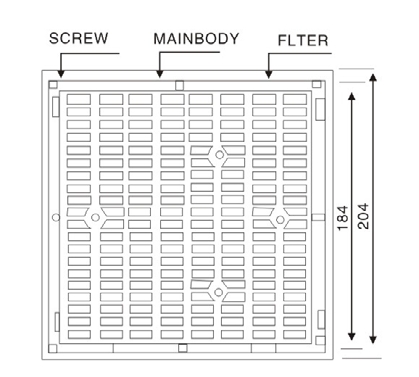

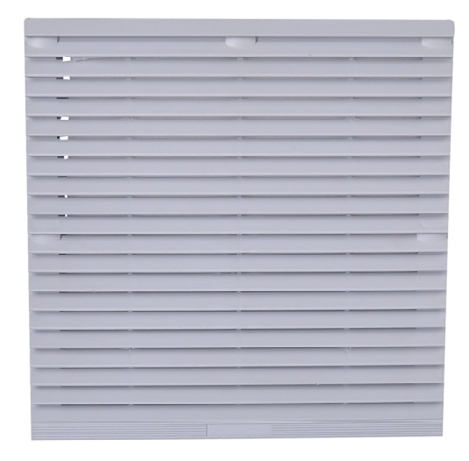

UniversalFilter Group:804
| Technical data | ||
| General Network Body Material | ABS Resin (Flammable, Ultraviolet Resistance)94V-O,UL Fire Line | |
| Filtration Material | Nylon Fiber Composite | |
| Filtration Pressure Loss | Initial 6.7mm End:20mm AQ | |
| Maximum wind speed | 1.5M/SEC | |
| All ranges | 50m³/MIN | |
| Preventive yield | AF186% (feed yeid:520g/m²) (JAPAN AIR FILTER INSTIUDE) | |
| General fan | Suitable for 150/170 series fans: 15050/17238/17250/17150/12025/12038 | |
| Waterproof rating | IP55 | |
| Annex | Filter X 1pcs | Screw group X8 PCs |

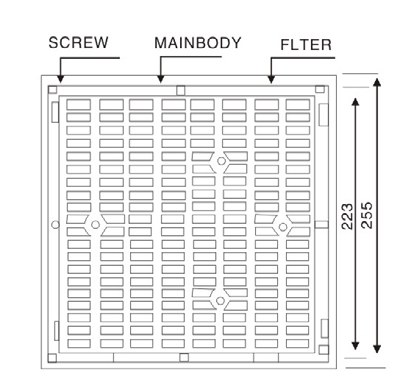

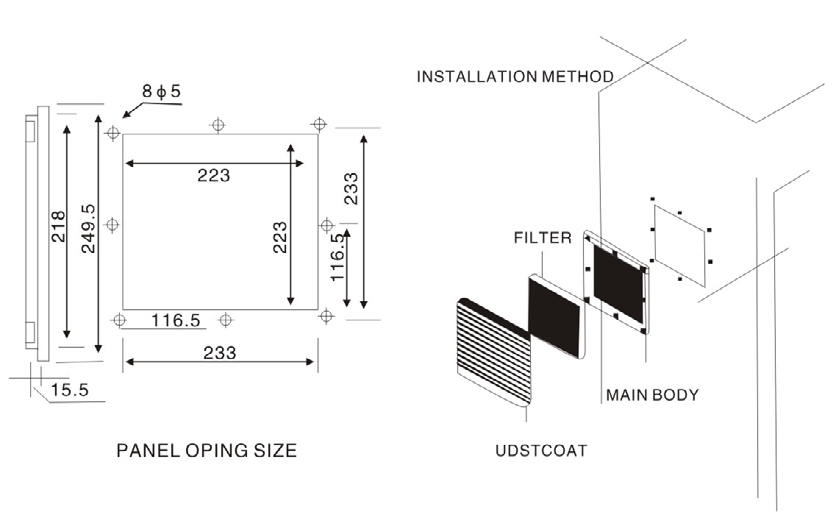

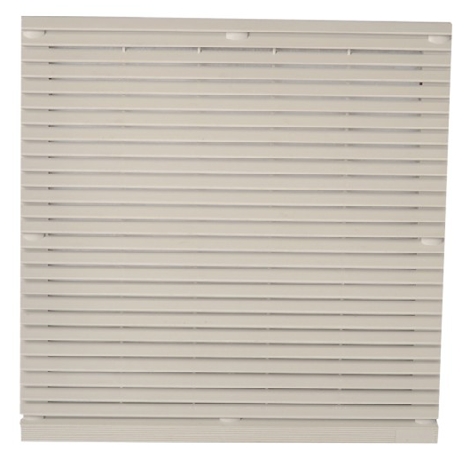

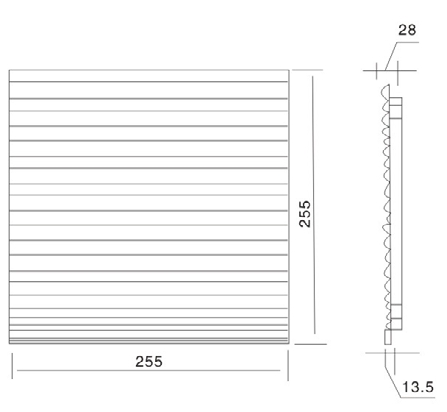

UniversalFilter Group:805
| Technical data | ||
| General Network Body Material | ABS Resin (Flammable, Ultraviolet Resistance)94V-O,UL Fire Line | |
| Filtration Material | Nylon Fiber Composite | |
| Filtration Pressure Loss | Initial 6.7mm End:20mm AQ | |
| Maximum wind speed | 1.5M/SEC | |
| All ranges | 50m³/MIN | |
| Preventive yield | AF186% (feed yeid:520g/m²) (JAPAN AIR FILTER INSTIUDE) | |
| General fan | Suitable for: 17250/17150/17238/20060/22060/22580 axial fans | |
| Waterproof rating | IP55 | |
| Annex | Filter X 1pcs | Screw group X8 PCs |

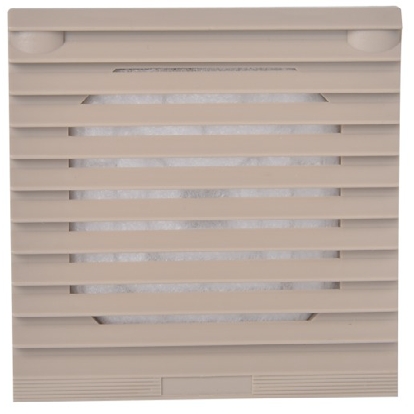

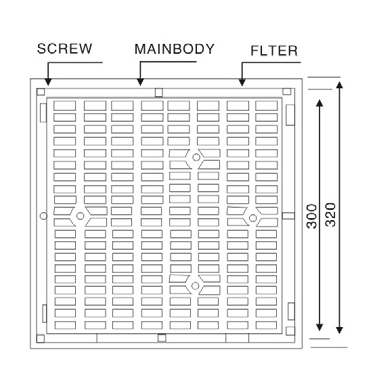

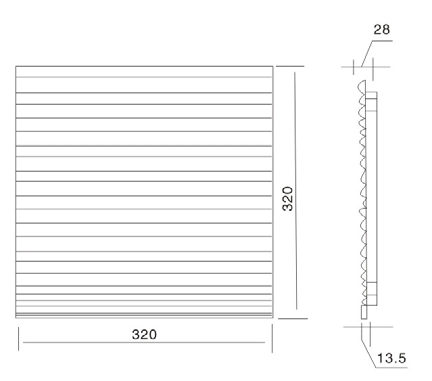

UniversalFilter Group:806
| Technical data | ||
| General Network Body Material | ABS Resin (Flammable, Ultraviolet Resistance)94V-O,UL Fire Line | |
| Filtration Material | Nylon Fiber Composite | |
| Filtration Pressure Loss | Initial 6.7mm End:20mm AQ | |
| Maximum wind speed | 1.5M/SEC | |
| All ranges | 50m³/MIN | |
| Preventive yield | AF186% (feed yeid:520g/m²) (JAPAN AIR FILTER INSTIUDE) | |
| General fan | Suitable for: 17250/17150/17238/20060/22060/22580 axial fans | |
| Waterproof rating | IP55 | |
| Annex | Filter X 1pcs | Screw group X8 PCs |
