STO011/ STS011 Thermostat for Electrical Enclosures
STO011/ STS011 Thermostat for Electrical Enclosures
DIN rail thermostat for electrical enclosures, available in normally closed and normally open contact types. Suitable for controlling heaters, cooling fans, alarms, air conditioners, and dehumidifiers in control cabinets.
Contact Us
Product Details

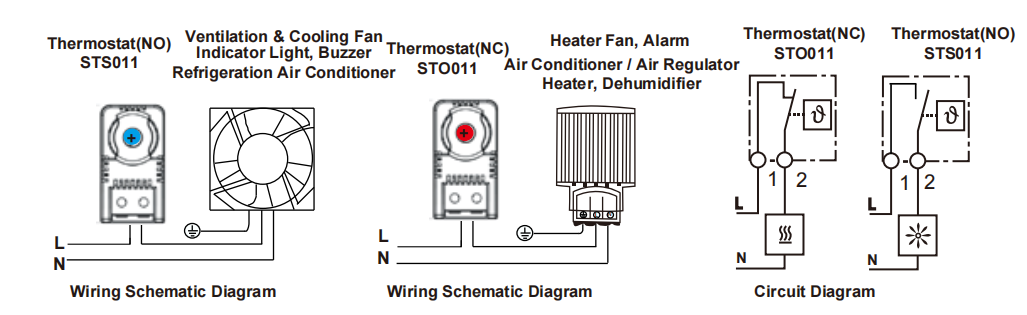

STO011: Thermostat (normally closed); contact breaker for regulating heaters. The contact opens when temperature is rising.
STS011: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devices when temperature limit has been exceeded. The contact closes when temperature is rising.
| STS011 | ||
| 1NC(SPST-NC) | ||
| Max switchingcapacity | 250VAC 10(2)A 120V AC 15(2)AC DC(30/110/220)V (1/0.3/0.15)A |
|
| Operating/Storage temperature |
(-45...+80)C | |
| Switch temperature difference |
7±4 | |
| Protection type | TP20 | |
| Service life | >100000cycles | |
| Mounting | clip for 35mm DINrail EN60715 |
|
| Casing | plastic according to ULV-0,light grey |
|
| setting Range | Art.No. (NC)STO011 | Art.No. (NO)STS011 |
| O to+60℃ | T810 | T820 |
| -20 to +40℃ | T811 | T821 |
| -10to+50℃ | T812 | T822 |
| +20to+80℃ | T813 | T823 |
| +14 to +122F | T814 | T824 |
| +32 to +140F | T815 | T825 |
| -15to+45℃ | T816 | T826 |

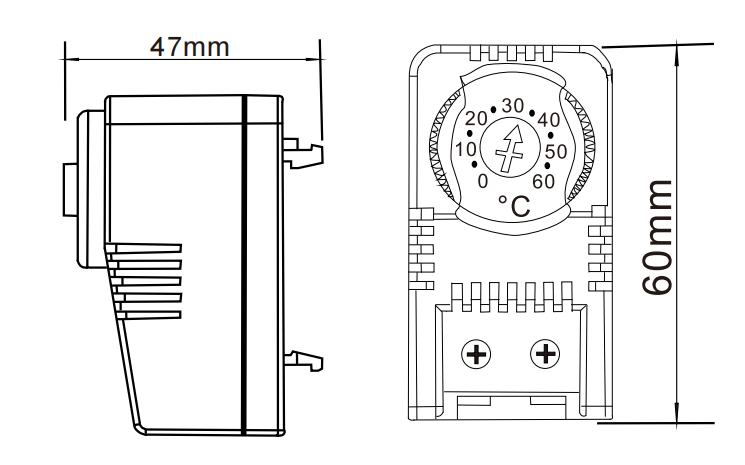

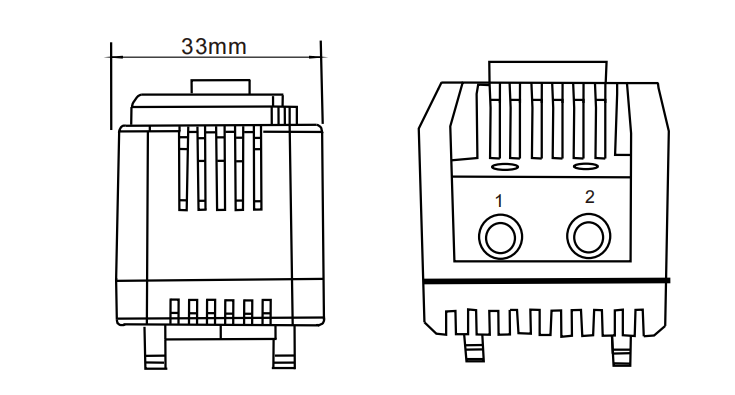

Overall and mounting dimensions
