Feature
·Analogue time switch
·1 channel
Daily program
·With power reserve(NiMH rechargeable battery)
·96switching segments
·Quartz controlled
·Shortest switching time:15 minutes
·Clock hands for time display andin addition 12/24 hour recognition
·Simple summer/wintertime correction
·Time canbe changed dockwise oranti-clockwise
·DuoFix spring terminals
·For 2 conductors each
·Wire or strand (withor without wire end sleeve)
·Wire diameter:0.5-2.5 mm²
·Button for releasing plug-in connection
·Switching preselection
·Manual switch with3 positions:Continuous ON/AUTO/continuousOFF
·Switching status display

Applications

-Suitable for applications where function and time requirements are know.

-Time switch , possible to be used for pump decay time after switching heating off, switching of fans.

General

Time Switch is control element with time as control unit and can automatically turn on or tunrn off power supply of various consumer equipments according to preset time by user. The controlled objects are circuit equipments and household appliances such as street lamps, neon lamps, advertising lamps, manufacturing equipments, broadcast & television equipments, etc., which requires turning on and off at definite time

YCT8-W Intelligent Control Relay supports Tuya App remote control, scheduled switching, and wireless start-stop control. It features AC85-240V wide voltage operation, 16A rated current, and COM/NO/NC relay output.

SSR-3 Solid State Relay is used for contactless AC load switching in industrial control systems. It supports 380VAC/660VAC load voltage, 10A–200A load current, and different control input options including 3–32VDC and 70–280VAC.

With no mechanical contacts, fast switching response, LED working indication, and bolted mounting, SSR-3 is suitable for heating equipment, motor control, temperature control systems, automation equipment, and other applications that require frequent and reliable switching.

CNC Electric Solid State Relay (SSR) is a high-performance electronic switching device designed for fast, silent, and maintenance-free control of AC or DC loads. Built for industrial reliability, CNC Electric SSR relays offer longer service life, zero-cross switching, low noise, and stable performance compared with traditional mechanical relays. Widely used in industrial automation, temperature control systems, packaging machinery, HVAC equipment, and power control applications, CNC Electric SSR relays support multiple input/output options with load currents up to 90A to meet diverse installation and operating requirements.

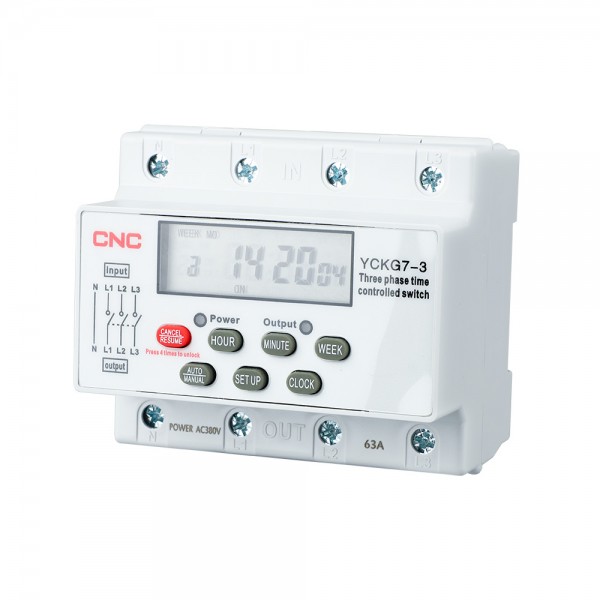

The YCKG7-3 Three-Phase Time Control Switch is a precision-engineered timer designed for automated power management in AC380V industrial and commercial systems. Compliant with IEC 60947-4-1, it enables reliable scheduling for street lights, machinery, HVAC systems, and more. With 16 programmable timers, weekly/daily cycles, and rugged durability, it optimizes energy efficiency while reducing manual intervention.
