Isolator in Substation

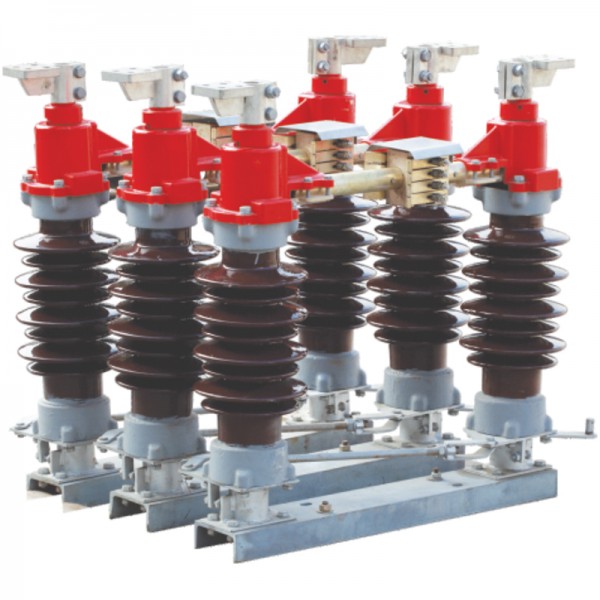

The Isolator in Substation product series, represented by the flagship GW4 Outdoor Isolation Switch, is engineered for high-voltage electrical isolation and switching in 35-110kV substations. Designed for three-phase AC 50Hz outdoor environments, this series delivers reliable performance in critical scenarios such as no-load line switching, electrical isolation of live equipment (e.g., busbars, circuit breakers), and safe maintenance operations. Key models (GW4-40.5, 72.5, 126, 145kV) cover a wide range of rated voltages (40.5kV–145kV) and currents (630A–4000A), with robust features including.
Why Choose
CNC's GW4 Isolator in Substation
GW4 outdoor MV isolation switch is suitable for three-phase AC 50Hz outdoor high-voltage electrical equipment in 35-110kV substations, with rated voltage 40.5kV-145kV and rated current 630A-4000A.
Provides safety-compliant insulation distance when the knife is in open position;
Ambient temperature adaptation: -30℃~+40℃, altitude ≤3000m, wind speed ≤35m/s;
Withstands earthquake intensity ≤8 degrees and pollution level ≤III class;
Rated short-time withstand current 20kA-46kA, peak withstand voltage 185kV-750kV.
About CNC Electric
CNC Electric was founded in 1988 with the launch of our inaugural molded case circuit breakers — marking the beginning of our journey in power solutions. With a focus on product development and manufacturing, we reorganized into a corporate group by 1995 and introduced our first full low-voltage series, earning a reputation for rugged reliability.
Many of our products are CE, TUV, and RoHS certified, ensuring reliability and compliance. We focus on both efficient production and environmental responsibility, integrating sustainable practices into our processes.
Solution
We provide our customer with profitable growth by offering integrated comprehensive electrical solution.
Bulk Wholesale
Global supply chain support with competitive pricing for large quantity orders. Dedicated account managers and flexible delivery terms.
WhatsApp: +8618958711903 E-mail: [email protected]OEM Partnership
Custom manufacturing solutions tailored to your brand requirements with strict quality control and confidential production.
Dealer Network
Join our global dealer program with exclusive territories, marketing support, and technical training resources.
Relevant Case
Angola's Natural Gas Processing Plant Project
Donglin Cement Plant Electrical Distribution System Upgrade
Nigeria Water Pump Control Solution Project
Nikopol Ferroalloy Plant Electrical Upgrade
Nikopol Ferroalloy Plant Upgrade
Project Introduction for Bulgarian Factory Electrical Project
FAQ
What is the function of an isolator?
Isolators isolate live electrical equipment from power sources, creating a visible break to ensure safe maintenance and prevent accidental energization.
Why is an isolator used in a substation?
Substations use isolators to safely disconnect high-voltage components (e.g., busbars, circuit breakers) during maintenance, enabling no-load line switching and enhancing operational safety.
How do isolators work?
Isolators operate via manual/mechanical mechanisms to open/close contacts, forming an insulation gap that electrically separates circuits under no-load conditions.
What is an insulator in a substation?
Insulators are devices (e.g., porcelain/composite) that support live conductors while preventing current leakage to ground, ensuring electrical insulation in substations.
