Quick Answer
A Surge Protective Device, or SPD, is an electrical device used to protect electrical systems and equipment from transient overvoltage. It limits sudden voltage spikes and diverts surge current safely to the grounding system.
SPDs are commonly used in distribution boards, industrial control panels, commercial buildings, solar PV systems, and other electrical installations where sensitive equipment needs protection.
What Is a Surge Protective Device?
A Surge Protective Device is designed to reduce the damage caused by voltage surges.
A voltage surge is a short but sudden increase in voltage. It may be caused by lightning, power grid switching, motor operation, or other electrical disturbances. Although a surge may last only a very short time, it can damage electronic components, insulation, control systems, and power equipment.
An SPD does not stop a surge from happening. Its purpose is to limit the surge voltage to a safer level and discharge the surge current to earth.
Why Is SPD Important?
Modern electrical systems contain many sensitive devices, such as inverters, PLCs, smart meters, communication equipment, security systems, and electronic control units.
Without surge protection, these devices may suffer from:
- Equipment failure
- Insulation damage
- Data loss
- System downtime
- Higher maintenance cost
- Reduced service life
For commercial buildings, factories, solar PV systems, and critical electrical installations, SPD protection is an important part of system reliability.

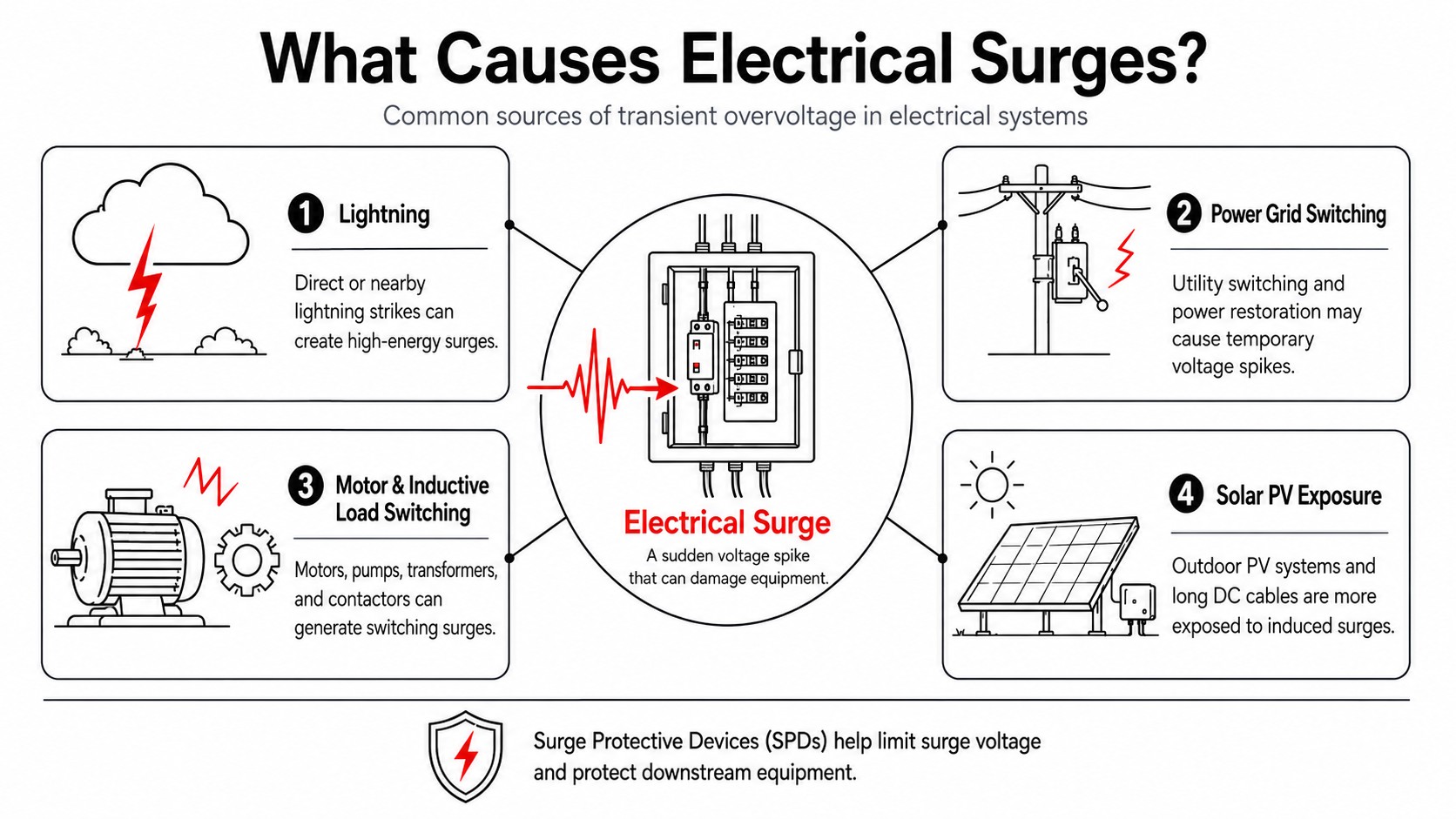

What Causes Electrical Surges?
Common causes of electrical surges include:
1. Lightning
Direct or nearby lightning strikes can create high-energy surges in power lines, grounding systems, or outdoor electrical equipment.
2. Power Grid Switching
Utility switching, transformer operation, and power restoration may produce temporary voltage spikes.
3. Motor and Inductive Load Switching
Large motors, pumps, compressors, contactors, and transformers can generate surges when switching on or off.
4. Solar PV System Exposure
Solar PV systems are often installed outdoors with long DC cables, making them more exposed to induced surges and lightning-related overvoltage.

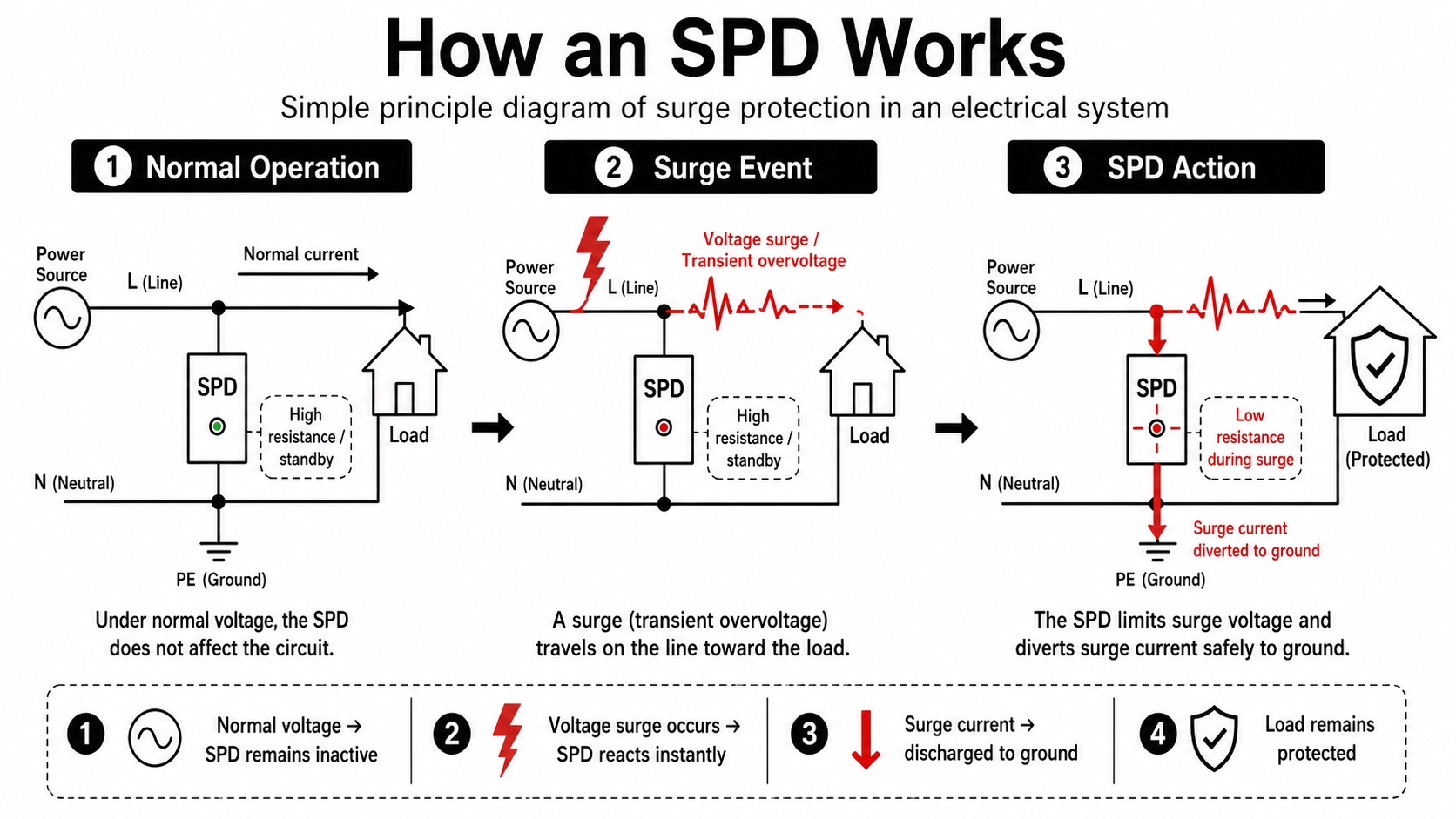

How Does an SPD Work?
Under normal voltage, the SPD remains inactive and does not affect the electrical circuit.
When a surge occurs, the voltage rises quickly. Once it exceeds the SPD’s operating threshold, the SPD creates a low-resistance path and diverts the surge current to the grounding system.
After the surge is discharged, the SPD returns to its normal state.
| Condition | SPD Status | Function |
|---|---|---|
| Normal voltage | High-resistance state | No effect on the circuit |
| Surge voltage | Low-resistance state | Discharges surge current |
| After surge | Returns to normal | Continues protection |

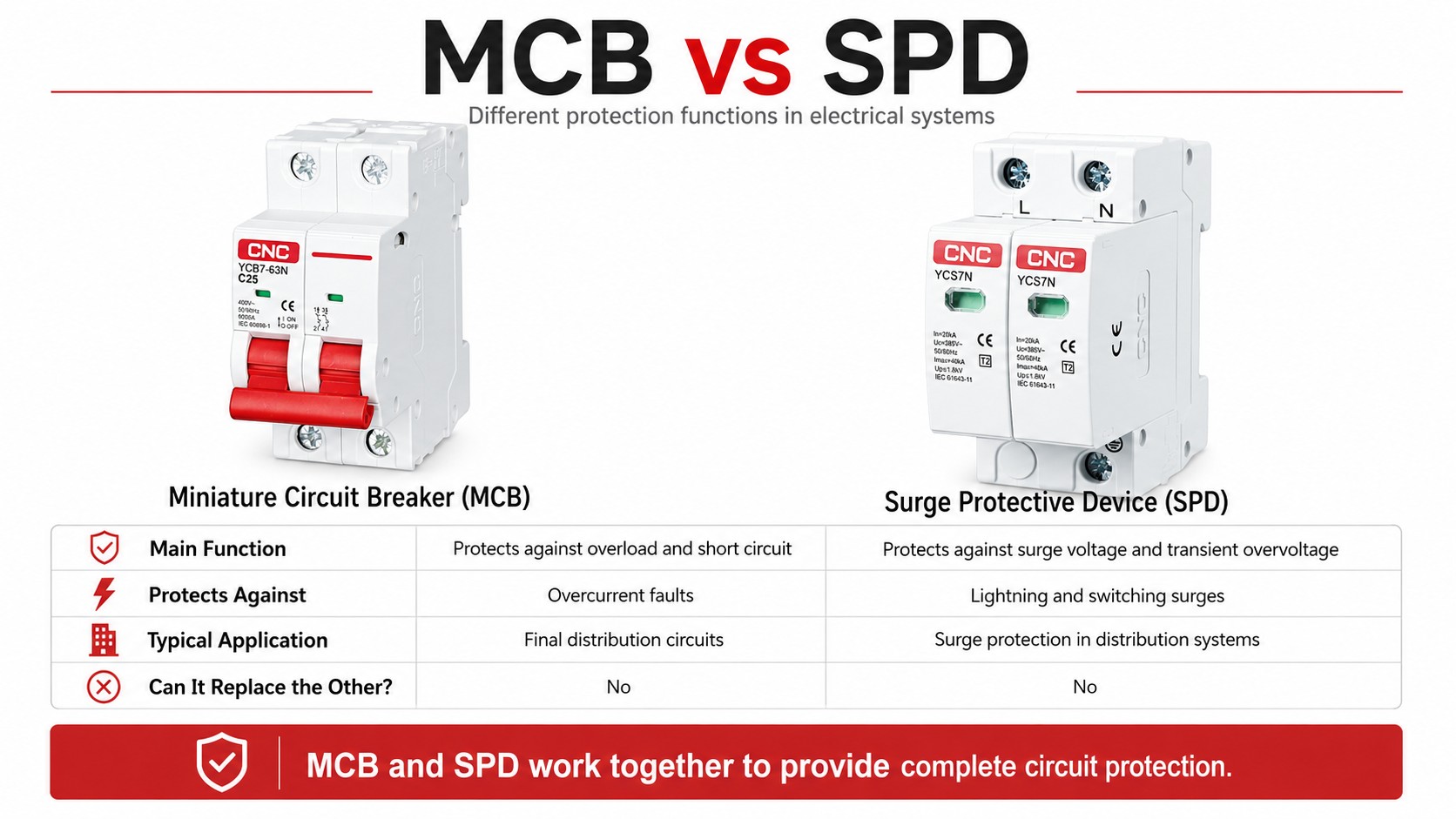

SPD vs Circuit Breaker: What Is the Difference?
An SPD is not the same as a circuit breaker.
| Device | Main Function | Protects Against |
|---|---|---|
| Circuit Breaker | Cuts off abnormal current | Overload and short circuit |
| RCD/RCCB | Detects leakage current | Earth leakage and electric shock |
| SPD | Limits transient overvoltage | Lightning surge and switching surge |
A circuit breaker cannot replace an SPD, and an SPD cannot replace a circuit breaker. In many systems, they should be used together to provide complete protection.
Common Types of SPD
Type 1 SPD
Type 1 SPD is usually installed at the main power entrance. It is used to discharge high-energy surges, especially in buildings with external lightning protection systems or high lightning exposure.
Type 2 SPD
Type 2 SPD is commonly installed in distribution boards. It protects electrical equipment from residual surges and switching overvoltage. It is the most widely used SPD type in low-voltage systems.
Type 3 SPD
Type 3 SPD is installed close to sensitive terminal equipment. It provides fine protection and is usually used together with upstream Type 1 or Type 2 SPD.
AC SPD and DC SPD
AC SPD and DC SPD are designed for different systems.
| SPD Type | Application |
|---|---|
| AC SPD | Residential, commercial, and industrial AC distribution systems |
| DC SPD | Solar PV systems, battery systems, and DC power circuits |
For solar PV systems, DC SPD is commonly installed in PV combiner boxes or near inverter DC inputs. AC SPD may also be installed on the inverter output side or distribution board.
Key Parameters When Choosing an SPD
When selecting an SPD, the following parameters should be checked:
| Parameter | Meaning |
|---|---|
| Uc | Maximum continuous operating voltage |
| In | Nominal discharge current |
| Imax | Maximum discharge current |
| Iimp | Lightning impulse current for Type 1 SPD |
| Up | Voltage protection level |
| Poles | 1P, 1P+N, 2P, 3P, 3P+N, 4P |
The selected SPD should match the system voltage, grounding type, installation position, and protection requirement.
Where Is SPD Commonly Used?
SPDs are widely used in:
- Residential distribution boards
- Commercial buildings
- Industrial control panels
- Data and communication systems
- Outdoor electrical equipment
- Solar PV systems
- PV combiner boxes
- Inverter protection systems
- Main and sub-distribution panels
CNC Electric SPD Solutions
CNC Electric provides surge protective devices for low-voltage AC systems and solar DC applications. These products can be used together with MCB, MCCB, RCCB, RCBO, isolator switches, PV fuses, and combiner boxes to build complete electrical protection solutions.
Typical applications include residential power distribution, commercial buildings, industrial control panels, solar PV systems, and outdoor electrical installations.
Conclusion
A Surge Protective Device is used to protect electrical systems from transient overvoltage caused by lightning, switching operations, and other electrical disturbances.
It works by limiting the surge voltage and discharging surge current to the grounding system. For modern electrical installations, especially systems with sensitive equipment or outdoor exposure, SPD protection is an important part of electrical safety and reliability.
FAQ
What is a surge protective device?
A surge protective device is an electrical protection device used to limit transient overvoltage and divert surge current to the ground.
How does an SPD work?
An SPD remains inactive during normal voltage. When a surge occurs, it quickly conducts and discharges surge current to reduce the voltage reaching downstream equipment.
Is an SPD the same as a circuit breaker?
No. A circuit breaker protects against overload and short circuit, while an SPD protects against transient overvoltage.
Where should SPD be installed?
SPD can be installed in main distribution boards, sub-distribution boards, near sensitive equipment, PV combiner boxes, and inverter protection systems.
What is the difference between Type 1 and Type 2 SPD?
Type 1 SPD is used for high-energy lightning current at the service entrance. Type 2 SPD is used in distribution boards to protect against residual surges and switching overvoltage.
Can AC SPD be used for DC systems?
No. AC SPD should not be used in DC systems unless it is specifically rated for DC applications. Solar PV systems require DC-rated SPD.
Does a solar PV system need SPD?
Yes, SPD is recommended for many solar PV systems because PV arrays and long DC cables are exposed to lightning-induced surges and transient overvoltage.
How do I know if an SPD needs replacement?
Many SPDs have a visual indicator. If the indicator shows a fault status, the SPD module should be checked or replaced.
