Voltage fluctuations can reduce equipment efficiency, cause unexpected shutdowns, and shorten equipment life. Selecting the right voltage stabilizer depends on the input voltage range, load capacity, response speed, output accuracy, load characteristics, and operating environment.
Main Types of Voltage Stabilizers
1. Servo Voltage Stabilizer
A servo voltage stabilizer uses a motor-driven voltage regulator and transformer to adjust the output voltage continuously.
Main advantages:
- High output-voltage accuracy
- Smooth and continuous voltage regulation
- Suitable for continuous voltage fluctuations
- Available for high-power single-phase and three-phase systems
- Reliable for industrial and commercial loads
Limitations:
- Mechanical components require periodic maintenance
- Response is slower than static electronic types
- Not ideal for extremely rapid voltage changes
Typical applications:
- Manufacturing machinery
- CNC machines
- Air-conditioning systems
- Commercial buildings
- Medical and laboratory equipment
- Distribution systems with unstable utility voltage
2. Electronic Voltage Stabilizer
Electronic voltage stabilizers regulate voltage through relays, thyristors, or other semiconductor switching devices. They contain fewer moving components and generally respond faster than servo stabilizers.
Main advantages:
- Fast voltage correction
- Compact construction
- Low maintenance requirements
- Suitable for frequent voltage changes
- Cost-effective for residential and light commercial loads
Limitations:
- Relay-type models regulate voltage in steps
- Output accuracy depends on the control design
- Switching may create brief voltage transitions
Typical applications:
- Household appliances
- Office equipment
- Security systems
- Small commercial facilities
- Telecommunications equipment
- Light industrial loads
3. IGBT Voltage Stabilizer
An IGBT voltage stabilizer is an advanced static electronic solution that uses high-frequency power electronics to correct voltage without mechanical adjustment.
It provides very fast response, high regulation accuracy, and effective control of rapid voltage fluctuations. IGBT stabilizers are suitable for sensitive equipment, data centers, automated production lines, and other applications requiring high power quality. However, their cost and technical complexity are generally higher than those of conventional servo or relay-based stabilizers.

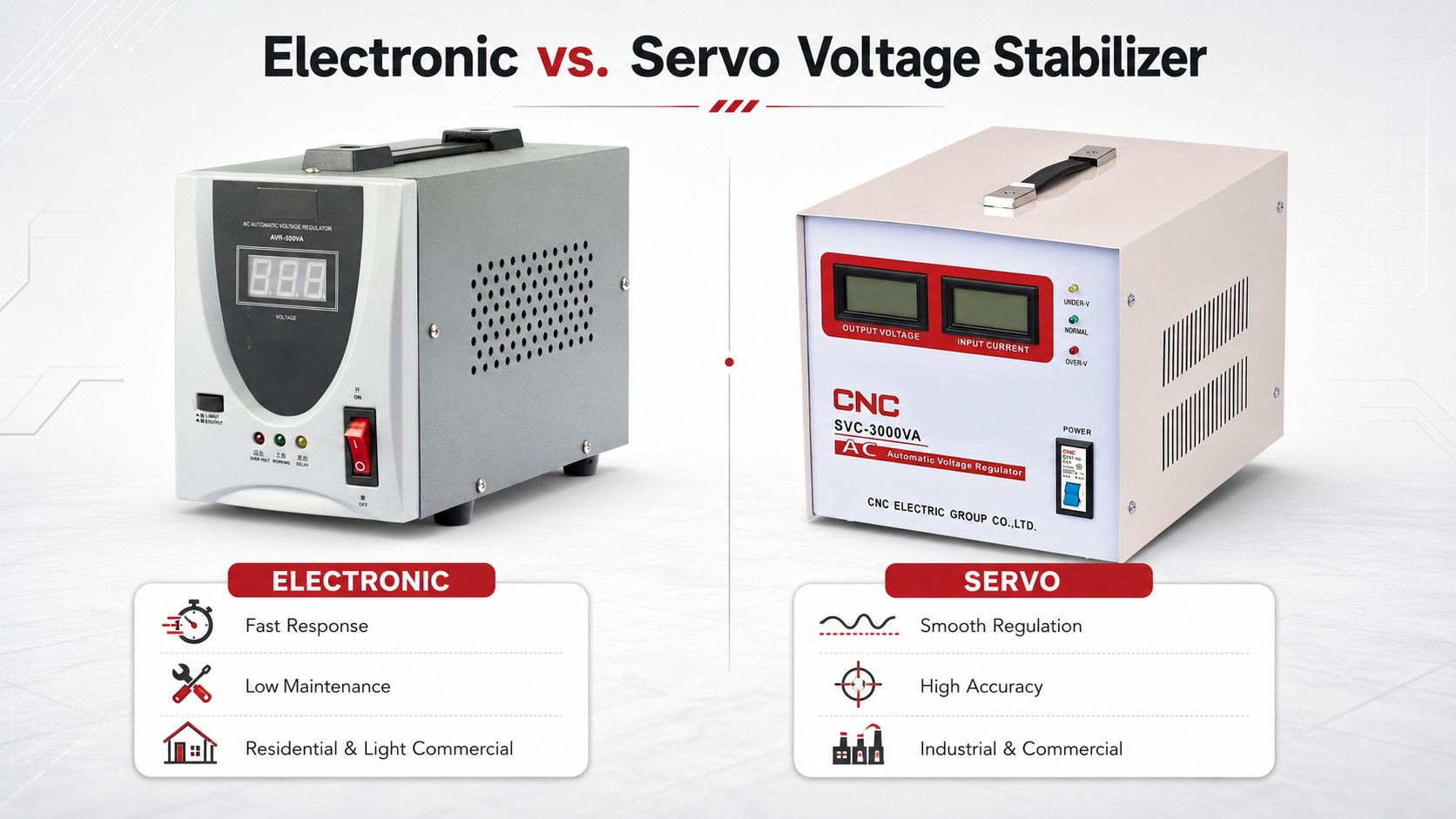

Servo vs. Electronic Voltage Stabilizer
| Factor | Servo Stabilizer | Electronic Stabilizer |
|---|---|---|
| Regulation method | Motor-driven continuous adjustment | Relay or semiconductor switching |
| Response speed | Moderate | Fast |
| Output regulation | Smooth and accurate | Stepped or static, depending on design |
| Maintenance | Periodic mechanical maintenance | Generally low |
| Typical capacity | Medium and high power | Low and medium power |
| Best suited for | Industrial and commercial systems | Residential and light commercial loads |

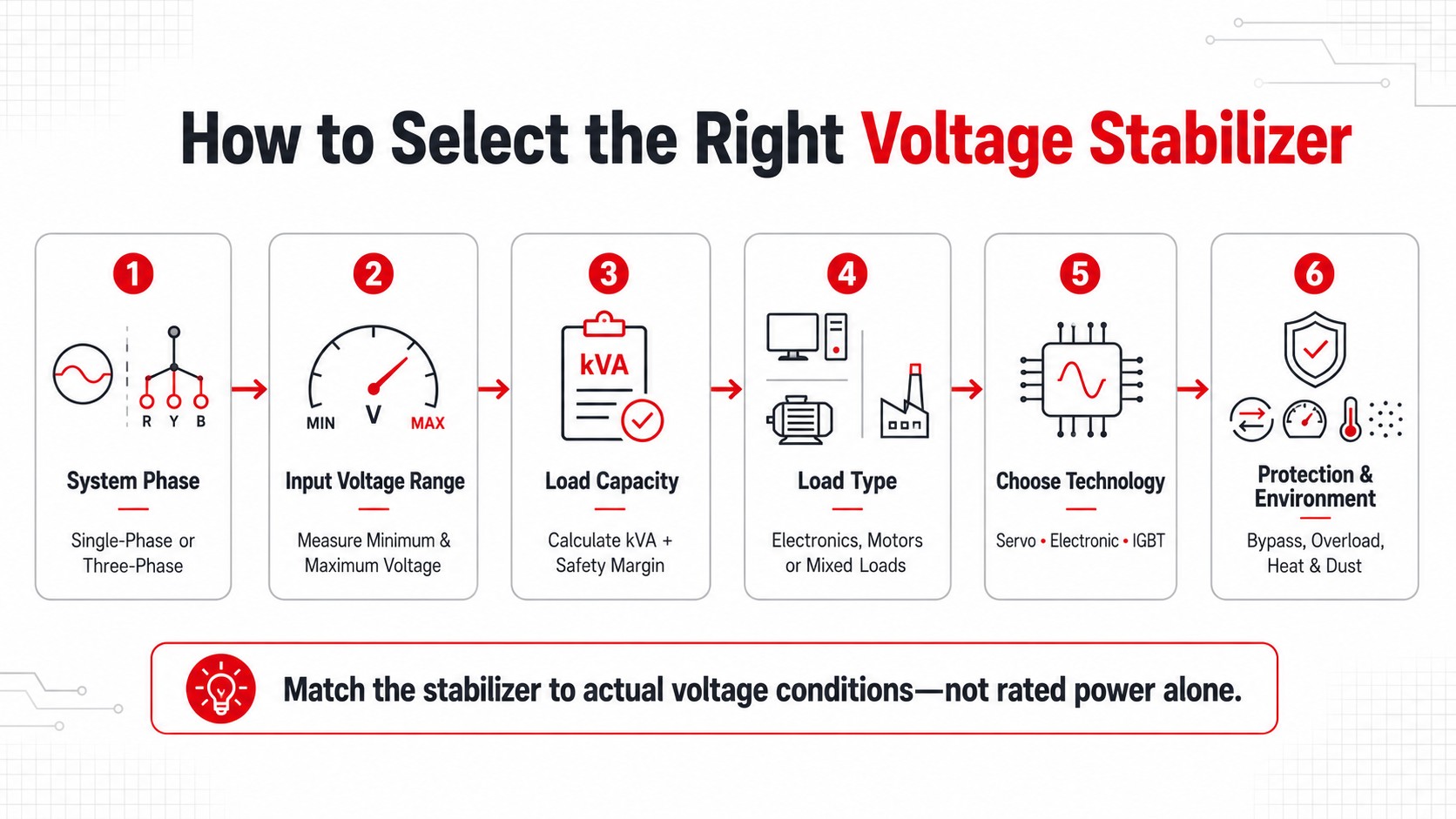

How to Select the Right Voltage Stabilizer
1. Confirm the System Phase
Choose a voltage stabilizer that matches the electrical system:
- Single-phase: Homes, offices, shops, and small equipment
- Three-phase: Factories, commercial buildings, motors, pumps, and production machinery
For three-phase systems, determine whether each phase needs independent regulation, especially when the loads are unbalanced.
2. Check the Input Voltage Range
Measure the lowest and highest supply voltages during actual operation. The stabilizer’s input range must cover the complete fluctuation range.
For example, if the measured voltage varies from 160 V to 250 V, a stabilizer designed only for 180–250 V may disconnect or fail to regulate during severe undervoltage.
3. Calculate the Required Capacity
Voltage stabilizers are normally rated in kVA. A basic calculation is:
Required capacity (kVA) = Load power (kW) ÷ Power factor
Additional capacity should be reserved for reliable operation:
- Resistive loads: Approximately 20–30%
- Electronic or mixed loads: Approximately 30–50%
- Motors and compressors: Select according to starting current, not only rated power
A motor may draw several times its rated current during startup. An undersized stabilizer may experience excessive voltage drop, overload protection, or repeated shutdowns.
4. Consider Load Characteristics
| Load Type | Selection Priority |
|---|---|
| Lighting and heating | Basic capacity and voltage range |
| Computers and electronics | Fast response and high accuracy |
| Motors and pumps | Starting current and overload capacity |
| Medical equipment | High accuracy, fast response, and reliability |
| CNC and automation systems | Stable output and protection against rapid fluctuations |
| Data centers | Static or IGBT regulation, bypass, and monitoring |
5. Define the Required Output Accuracy
Standard appliances may tolerate moderate voltage variation, while sensitive electronics and precision equipment require tighter regulation.
Servo stabilizers are suitable where smooth and accurate output is important. Electronic or IGBT stabilizers are preferable when both fast correction and high accuracy are required.
6. Evaluate Protection Functions
A reliable voltage stabilizer should provide essential protection functions such as:
- Overvoltage and undervoltage protection
- Overload and short-circuit protection
- Overtemperature protection
- Phase loss and phase-sequence protection
- Output delay
- Surge protection
- Manual or automatic bypass
Bypass is particularly important in industrial and commercial systems because it allows the load to remain connected during maintenance or stabilizer faults.
7. Check the Installation Environment
Temperature, humidity, dust, ventilation, and altitude can affect stabilizer capacity and service life. Install the unit in a dry, ventilated area with sufficient clearance for heat dissipation. Capacity derating may be required under high-temperature or high-altitude conditions.
Which Type Should You Choose?
- Choose a servo voltage stabilizer for industrial machinery, commercial facilities, and medium- or high-power loads requiring smooth and accurate voltage regulation.
- Choose an electronic voltage stabilizer for homes, offices, telecommunications equipment, and light commercial applications where fast response, compact size, and low maintenance are priorities.
- Choose an IGBT voltage stabilizer for sensitive or mission-critical loads requiring extremely fast correction, high accuracy, and advanced power-quality control.
Conclusion
The correct voltage stabilizer should be selected according to the actual voltage fluctuation range, system phase, load capacity, starting current, response requirements, and installation conditions.
Servo stabilizers remain a dependable choice for many industrial applications, while electronic and IGBT technologies provide faster regulation for sensitive and rapidly changing loads. Proper sizing and suitable protection functions are essential for stable operation and longer equipment life.
