Quick Answer
Standard breaker sizes vary by breaker type. MCBs usually follow a modular DIN rail size, commonly 18mm per pole. RCBOs may be 18mm or 36mm depending on design. Breaker accessories are commonly 9mm or 18mm wide. MCCBs do not follow a fixed modular width because their dimensions depend on frame size, rated current, breaking capacity, function, and pole configuration.
What Are Standard Breaker Sizes?
“Standard breaker sizes” usually refer to the physical width and installation dimensions of circuit breakers used in electrical distribution systems. For electricians, panel builders, and distributors, breaker size is not only about current rating. It also affects distribution board layout, cabinet space, wiring convenience, accessory installation, and future expansion.
In low-voltage electrical systems, terminal circuit breakers such as MCBs and RCBOs are usually designed around modular DIN rail dimensions. Larger distribution breakers such as MCCBs are more complex and are normally selected according to frame size, pole number, protection function, and application requirements.

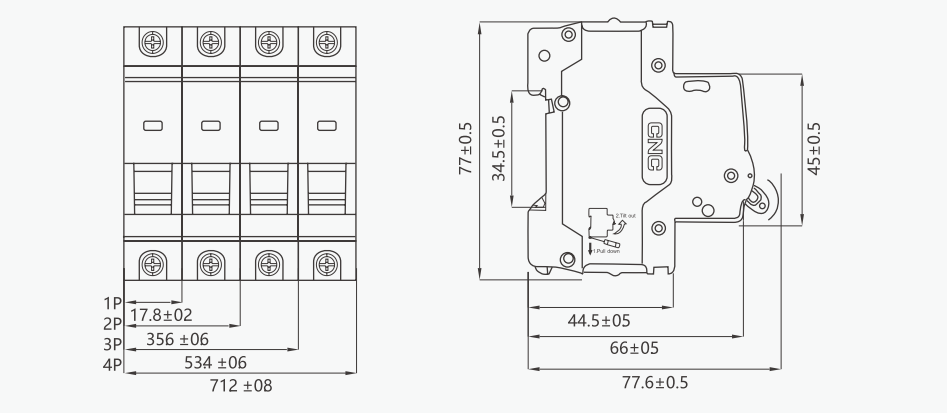

Standard Sizes of MCBs
Miniature Circuit Breakers, or MCBs, are widely used in residential, commercial, and light industrial distribution boards. Most standard MCBs are based on an 18mm modular width.
| MCB Type | Typical Width | Common Application |
|---|---|---|
| 1P MCB | 18mm | Single-phase final circuit protection |
| 2P MCB | 36mm | Single-phase line and neutral protection or isolation |
| 3P MCB | 54mm | Three-phase circuit protection |
| 4P MCB | 72mm | Three-phase plus neutral protection |
Key point: For most standard MCBs, the width increases by 18mm per pole. A 1P MCB is usually 18mm, while a 4P MCB is usually 72mm.
High-Current MCB Sizes
Some high-current miniature circuit breakers require a larger internal structure to handle higher rated current and improve heat dissipation. In these cases, the width may be larger than the standard 18mm module.
For example, some high-current MCBs may use a 27mm width per pole instead of the regular 18mm width. This design is commonly seen in higher-current terminal breakers, such as 80A, 100A, or 125A models, depending on the manufacturer and product series.
| Breaker Type | Typical Width | Reason |
|---|---|---|
| Standard 1P MCB | 18mm | Compact modular design |
| High-current 1P MCB | 27mm | More space for current-carrying parts and heat dissipation |
Standard Sizes of RCBOs
RCBOs combine residual current protection and overcurrent protection in one device. Because they integrate more protection functions than a standard MCB, their size can vary more.
| RCBO Type | Typical Width | Description |
|---|---|---|
| Compact 1P+N RCBO | 18mm | Space-saving design for modern distribution boards |
| Standard RCBO | 36mm | Common size for RCBOs with integrated leakage protection |
| 3P / 4P RCBO | 54mm / 72mm or more | Used for three-phase applications |
In many modern electrical panels, compact 18mm RCBOs are preferred because they save space and allow more circuits to be installed in the same distribution board.
Standard Sizes of Breaker Accessories
Circuit breaker accessories also occupy panel space. When planning a distribution board, the total width should include both the breaker and its accessories.
| Accessory Type | Typical Width | Function |
|---|---|---|
| Auxiliary Contact | 9mm or 18mm | Provides breaker status signal |
| Alarm Contact | 9mm or 18mm | Indicates fault trip status |
| Shunt Trip | 18mm | Allows remote tripping |
| Undervoltage Release | 18mm | Trips the breaker when voltage drops below a set level |
Installation tip: A breaker with accessories may require much more panel space than the breaker alone. Always check the complete assembly width before designing the panel layout.

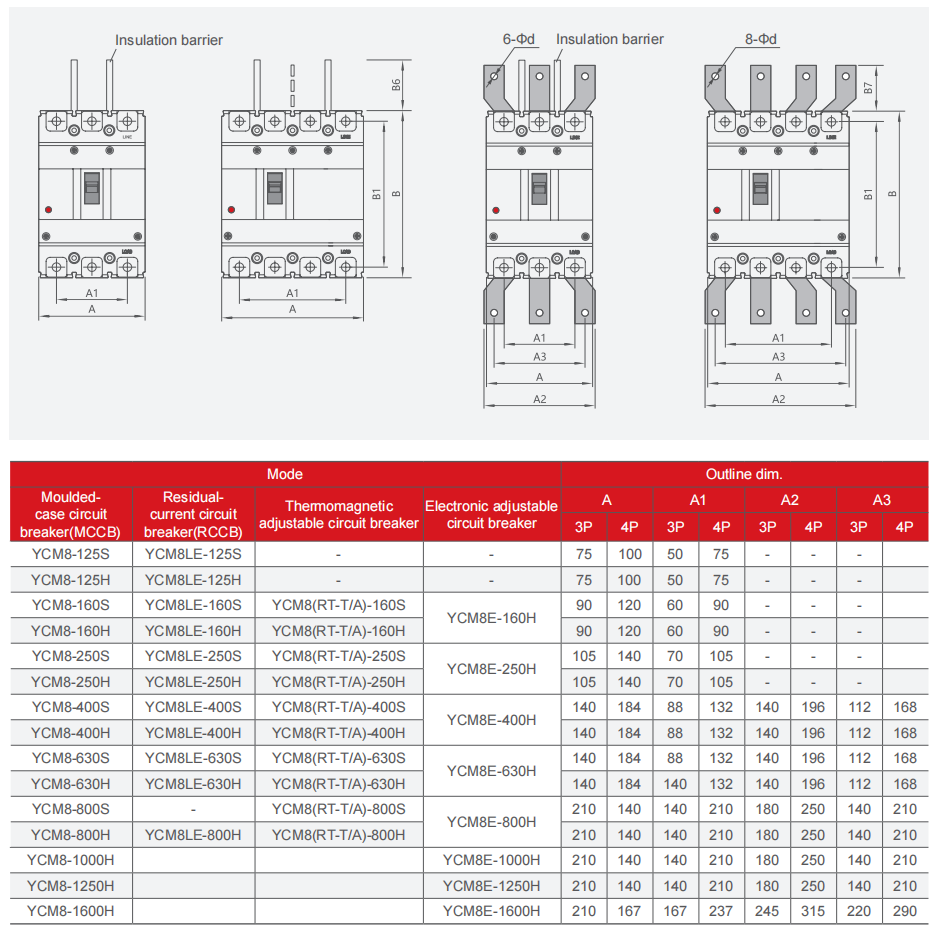

Standard Sizes of MCCBs
Molded Case Circuit Breakers, or MCCBs, are used for higher-current distribution systems. Unlike MCBs, MCCBs do not usually follow a fixed 18mm modular width. Their physical dimensions are much more complex.
MCCB sizes are usually determined by frame size, rated current, breaking capacity, trip unit type, number of poles, and accessory configuration.
Main Factors That Affect MCCB Size
| Factor | How It Affects Size |
|---|---|
| Frame Size | Higher frame ratings usually require a larger breaker body |
| Rated Current | Higher current requires stronger conductive parts and better heat dissipation |
| Breaking Capacity | Higher breaking capacity may require a larger arc extinguishing structure |
| Trip Unit Type | Electronic trip units may require different internal structures |
| Number of Poles | 2P, 3P, and 4P MCCBs have different widths |
| Accessories | Motor operators, shunt trips, auxiliary contacts, and rotary handles may increase total space |
Common MCCB Frame Size Categories
| MCCB Frame Range | Typical Application | Size Characteristic |
|---|---|---|
| 100A – 250A | Small distribution panels and branch circuits | Relatively compact |
| 400A – 630A | Commercial and industrial distribution systems | Medium-sized body |
| 800A – 1600A | Main power distribution and industrial systems | Larger structure with higher installation space requirements |
Key point: MCCB size cannot be judged only by current rating. Two MCCBs with the same current rating may have different sizes because of different breaking capacities, functions, pole configurations, and accessories.
MCB vs RCBO vs MCCB Size Comparison
| Breaker Type | Typical Size Rule | Installation Type | Common Use |
|---|---|---|---|
| MCB | Usually 18mm per pole | DIN rail | Final circuit protection |
| RCBO | 18mm or 36mm, depending on design | DIN rail | Overcurrent and leakage protection |
| Accessories | Usually 9mm or 18mm | Installed beside breaker | Signal, remote trip, undervoltage protection |
| MCCB | Depends on frame size and function | Panel mounting | Main and branch distribution protection |
Why Breaker Size Matters
Choosing the right breaker size is important for both safety and installation efficiency. A breaker that fits the electrical rating but does not fit the panel layout can cause installation problems, wiring difficulty, or insufficient space for future expansion.
1. Panel Space Planning
Standard modular sizes help engineers calculate the required distribution board width before installation. This is especially important in residential and commercial panels with many outgoing circuits.
2. Wiring Convenience
Proper breaker spacing allows easier wiring, clearer circuit identification, and better maintenance access.
3. Heat Dissipation
Larger current ratings generate more heat. Correct breaker size and spacing help improve ventilation and reduce overheating risks.
4. Future Expansion
Leaving enough spare module space allows the system to add new circuits, accessories, or protection devices in the future.
How to Choose the Right Breaker Size
When selecting breaker size, do not only look at the ampere rating. A complete selection should consider electrical performance, mechanical dimensions, and installation requirements.
| Selection Point | What to Check |
|---|---|
| Breaker Type | MCB, RCBO, RCCB, MCCB, or other protection device |
| Rated Current | Match the load and cable capacity |
| Number of Poles | 1P, 1P+N, 2P, 3P, or 4P |
| Panel Space | Check available DIN rail modules or cabinet mounting space |
| Accessories | Include auxiliary contacts, shunt trips, undervoltage releases, and handles |
| Future Expansion | Reserve enough space for additional circuits |
CNC Electric Breaker Solutions
CNC Electric provides a wide range of low-voltage protection products, including MCBs, RCBOs, RCCBs, MCCBs, and related accessories. From compact terminal protection to larger power distribution systems, CNC Electric offers solutions for residential, commercial, industrial, and renewable energy applications.
For panel builders and distributors, understanding standard breaker sizes helps improve product selection, panel design, and installation efficiency.
Conclusion
Standard breaker sizes depend on the type of circuit breaker. MCBs are usually based on an 18mm modular system, while RCBOs may be 18mm or 36mm depending on their design. Breaker accessories are commonly 9mm or 18mm wide. MCCBs are more complex, with sizes determined by frame rating, function, breaking capacity, pole number, and accessories.
Before selecting a breaker, always check both the electrical specifications and the physical dimensions. A correctly sized breaker helps ensure safer operation, easier installation, better heat dissipation, and more efficient panel design.
FAQ
What is the standard size of an MCB?
The standard size of an MCB is usually 18mm per pole in DIN rail systems. A 1P MCB is typically 18mm wide, while a 2P MCB is usually 36mm wide.
Are all circuit breakers the same size?
No. MCBs usually follow modular DIN rail sizes, but MCCBs vary according to frame size, rated current, breaking capacity, pole number, and function.
What size is a 3 pole breaker?
A standard 3 pole MCB is typically 54mm wide because it is based on 18mm per pole. However, MCCB dimensions vary by frame size and product design.
What is the difference between 18mm and 27mm breakers?
An 18mm breaker is usually a standard modular MCB. A 27mm breaker is often used for higher-current designs that require more internal space for conductive parts and heat dissipation.
Do RCBOs take more space than MCBs?
Traditional RCBOs often take more space than MCBs because they combine overcurrent and residual current protection. However, modern compact RCBOs can be as narrow as 18mm.
How do I calculate breaker space in a distribution board?
For modular DIN rail breakers, calculate the total width by adding the width of each breaker and accessory. For example, four standard 1P MCBs usually require 72mm of space.
