MPCB vs MCB vs MCCB: How to Choose the Right Circuit Breaker for Motor Protection

An MCB, MCCB, and MPCB can all interrupt overcurrent, but they are designed for different protection tasks. An MPCB—Motor Protection Circuit Breaker—is specifically designed around the operating characteristics of electric motors, making it the preferred choice for many individual motor circuits.

What Is an MPCB?

An MPCB is a circuit breaker designed to protect and manually switch an electric motor circuit. It is also commonly called a:

• Motor Protection Circuit Breaker
• Motor Circuit Breaker
• Motor Starter Protector
• Manual Motor Starter

A typical MPCB combines two essential protection functions:

1. Adjustable thermal overload protection
2. Instantaneous magnetic short-circuit protection

Many three-pole MPCBs also respond to phase failure because losing one phase increases current and thermal stress in the remaining phases. However, phase-loss sensitivity depends on the product design and should always be confirmed in the manufacturer’s documentation.

ABB describes manual motor starters as devices that provide fuseless protection against short circuits, overloads, and phase failures, while Siemens identifies overload, short circuit, and phase loss among the principal motor protection conditions addressed by its motor starter protectors.

Sources: ABB Manual Motor Starters | Siemens SIRIUS Circuit Breakers

Why Do Motors Need Dedicated Protection?

A standard distribution circuit and a motor circuit do not behave in the same way.

When a motor starts, it may draw several times its normal operating current for a short period. A protective device must allow this temporary inrush without tripping, while still disconnecting the motor if excessive current continues long enough to damage the windings.

Overload

A motor can continue running while drawing more than its rated current because of excessive mechanical load, low voltage, frequent starting, or poor ventilation. This condition may not be high enough to operate ordinary short-circuit protection quickly, but it can gradually overheat the windings.

Locked Rotor or Stall

If the shaft cannot rotate, the motor may draw a very high current continuously. Without suitable time-current protection, the motor can overheat rapidly.

Short Circuit

A line-to-line or line-to-ground fault can produce extremely high current. The protective device must interrupt this fault within its rated breaking capacity.

Phase Failure

In a three-phase motor, the loss of one phase can cause the remaining phases to carry excessive current. The motor may continue running with reduced torque while its windings overheat.

Repeated or Long Starting

High-inertia loads such as crushers, conveyors, and large fans may require longer acceleration times. A protection device with an unsuitable tripping characteristic may either trip unnecessarily or fail to protect the motor adequately.

These operating conditions are why selecting a breaker only according to motor power or cable size is insufficient.

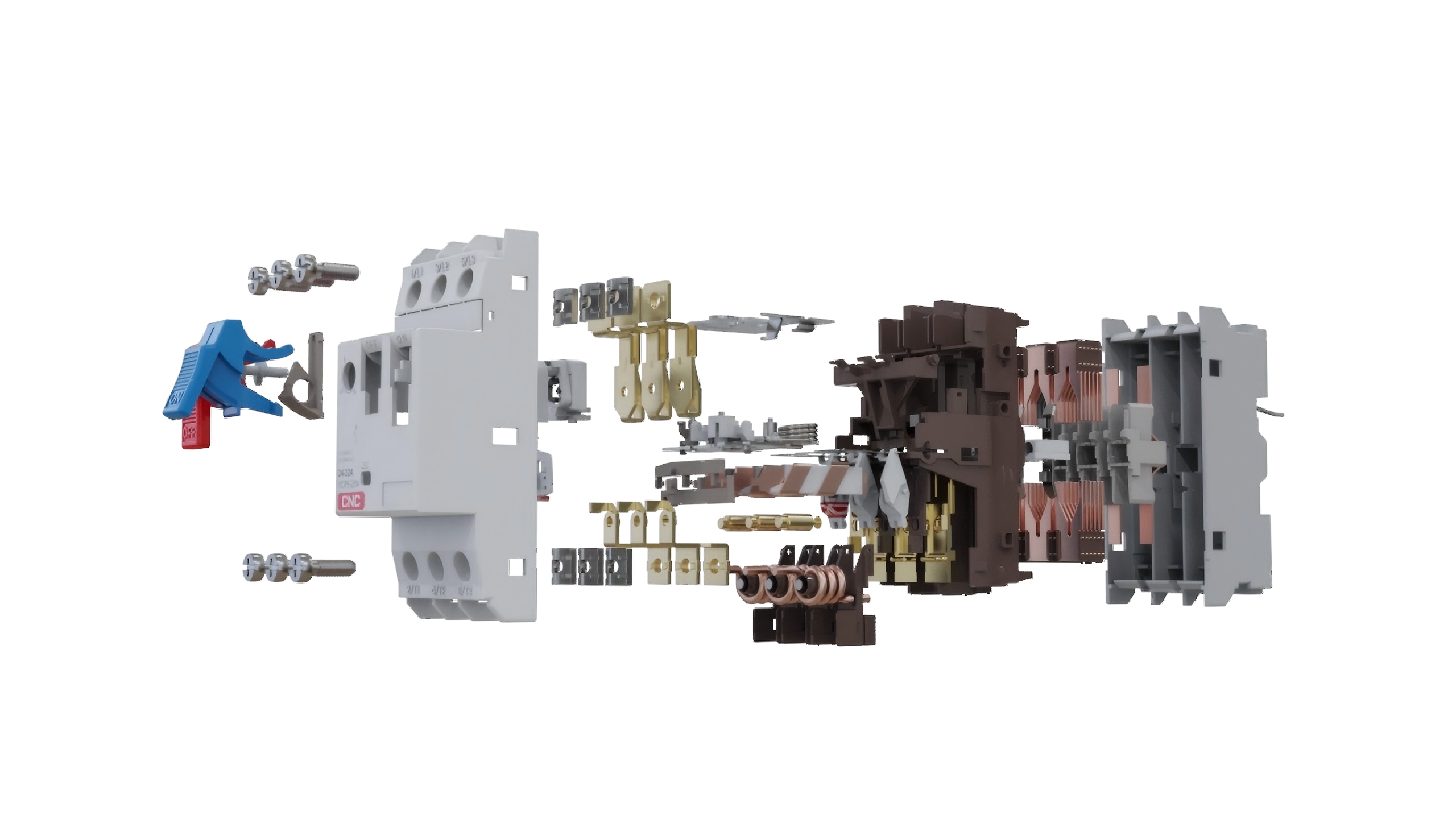

How Does an MPCB Work?

Most thermal-magnetic MPCBs use two coordinated tripping mechanisms.

Thermal Overload Release

Current flows through a thermal element in each phase. When current remains above the selected value, the element heats up and activates the trip mechanism.

The higher the overload, the faster the MPCB trips. This inverse-time behavior allows normal motor starting current to pass while disconnecting a sustained overload before it causes serious thermal damage.

The thermal setting is normally adjustable within a defined range, such as 4–6.3 A or 9–14 A. This allows the MPCB to be matched more closely to the motor’s nameplate current.

Magnetic Short-Circuit Release

A severe fault produces a much higher current than a normal overload. The magnetic release operates almost instantaneously, opening the contacts and limiting fault duration.

The magnetic threshold is normally set high enough to avoid tripping during normal motor acceleration. Its actual value and adjustability depend on the MPCB model.

Manual Switching and Reset

An MPCB can normally be operated manually to switch the motor circuit on or off. After a trip, the fault should be identified and corrected before the device is reset.

For frequent or remote switching, the MPCB should usually be combined with a contactor rather than used as the main operational switching device.

Main Functions of an MPCB

A correctly selected MPCB can provide several functions in one compact device:

• Motor overload protection
• Short-circuit protection
• Phase-failure sensitivity on applicable models
• Manual switching
• Circuit disconnection or isolation when appropriately rated
• Adjustable current setting
• Visible trip indication
• Reset after the fault has been cleared

This integrated design can reduce panel space and wiring compared with a conventional combination of a circuit breaker, fuse, and separate thermal overload relay.

However, a standard MPCB does not automatically provide every possible motor protection function. Earth leakage, winding temperature, underload, severe phase imbalance, bearing temperature, and communication-based monitoring may require additional protection devices.

MPCB vs MCB vs MCCB

The main difference is not simply the current rating. It is the type of load the device is designed to protect.

Can an MCB Protect a Motor?

An MCB can provide short-circuit and cable overload protection, but it is not normally a complete motor protection device.

Its rated current and tripping curve are generally fixed. If the MCB is selected too close to the motor’s full-load current, it may trip during starting. If it is oversized to tolerate the starting current, it may not provide sufficiently precise overload protection for the motor.

An MCB may still be used in a small motor circuit when combined with:

• A suitable contactor
• A thermal or electronic overload relay
• Correctly coordinated short-circuit protection

Therefore, an MCB can be part of a motor starter, but it should not automatically be treated as a replacement for an MPCB or overload relay.

Can an MCCB Protect a Motor?

An MCCB offers higher current ratings, stronger breaking capacity, and more adjustment options than a typical MCB. It is often used for:

• Large motors
• Motor control center feeders
• Multiple-motor circuits
• Installations with high prospective fault current

However, a general-purpose MCCB is primarily designed for circuit and conductor protection. Even when its thermal and magnetic settings are adjustable, it may not provide all the overload, phase-failure, and starting characteristics required by a specific motor.

For larger or more demanding applications, an MCCB is commonly combined with an electronic motor protection relay and contactor.

A motor-specific MCCB trip unit may provide more complete protection, but its functions must be verified from the product data rather than assumed from the MCCB designation alone.

How to Select the Right MPCB

1. Check the Motor Nameplate Current

Select the MPCB according to the motor’s rated operating current, not only its power in kilowatts.

The MPCB adjustment range must cover the motor nameplate current. For example, a 9–14 A MPCB may be suitable for a motor with a rated current of 11 A.

The final setting should follow:

• Motor nameplate information
• Manufacturer instructions
• Starting conditions
• Ambient temperature
• Applicable electrical regulations

2. Confirm the Operating Voltage and Number of Poles

The MPCB must be rated for the motor circuit voltage. Three-pole MPCBs are normally used for three-phase motors so that all phases are disconnected together.

The device’s short-circuit ratings must also be checked at the actual operating voltage because breaking capacity can change with voltage.

3. Verify the Breaking Capacity

The MPCB must be capable of interrupting the prospective short-circuit current at its installation point.

Check the manufacturer’s stated values, such as:

• Ultimate short-circuit breaking capacity
• Service short-circuit breaking capacity
• Conditional short-circuit rating when coordinated with another device

A breaker with insufficient breaking capacity may not safely interrupt a severe fault.

4. Consider Starting Current and Starting Time

Direct-on-line motors can produce high inrush current. High-inertia machines may also take longer to accelerate.

Check that the MPCB’s magnetic threshold and thermal tripping curve allow the motor to start without nuisance tripping.

Many standard thermal MPCBs are intended for typical Class 10 motor applications. Heavy-duty or long-start applications may require a different tripping characteristic, a specially selected MPCB, or a separate electronic overload relay.

Reference: Rockwell Automation Motor Protection Selection Data

5. Coordinate the MPCB with the Contactor

In a motor starter:

• The MPCB protects the motor and circuit.
• The contactor performs frequent, remote, or automatic switching.

The two devices must be coordinated according to their manufacturer’s tested combination tables.

Under IEC 60947-4-1, coordination is commonly classified as:

• Type 1 coordination: The starter may require repair or replacement after a short circuit, but it must not create a hazard.
• Type 2 coordination: The starter should remain suitable for further service after the fault, although minor contact welding may be permitted if the contacts can be separated safely.

Reference: IEC 60947-4-1

6. Check the Application Environment

Current ratings and tripping characteristics can be affected by:

• High ambient temperature
• High altitude
• Enclosed panel temperature
• Closely mounted devices
• Dust, humidity, and vibration

Apply the manufacturer’s derating factors when necessary.

7. Select the Required Accessories

Depending on the control system, an MPCB may be equipped with:

• Auxiliary contacts
• Alarm contacts
• Shunt trip
• Undervoltage release
• External rotary handle
• Door-coupling mechanism
• Busbar or contactor connection modules

Accessories can help integrate the MPCB into control panels, emergency-stop circuits, and remote monitoring systems.

MPCB and Contactor: A Compact Motor Starter

An MPCB and contactor are often combined to form a compact direct-on-line motor starter.

The MPCB provides overload and short-circuit protection, while the contactor receives commands from push buttons, relays, PLCs, or other control devices.

For a standard fixed-speed motor, this combination may eliminate the need for a separate thermal overload relay—provided that the MPCB includes appropriate overload protection and the complete combination has been correctly selected and coordinated.

A separate electronic overload or motor protection relay may still be preferable when the application requires:

• Adjustable trip classes
• Current imbalance monitoring
• Sensitive phase-loss detection
• Jam or underload protection
• Ground-fault monitoring
• Motor temperature sensor inputs
• Remote diagnostics or communication

When Should You Choose an MPCB?

Choose an MPCB when:

• Protecting an individual small or medium three-phase motor
• A compact motor starter is required
• Adjustable overload protection is needed
• The motor has conventional starting characteristics
• Manual local switching is useful
• The MPCB can be coordinated directly with a contactor

Choose an MCB-based starter when:

• The motor is small
• A separate overload relay is already included
• The complete device combination has been correctly coordinated

Choose an MCCB-based solution when:

• The motor current is outside the practical MPCB range
• The installation has high prospective fault current
• Advanced electronic protection is required
• The breaker protects a feeder or group of motors
• The application involves a large or critical motor

Common MPCB Selection Mistakes

Avoid these common errors:

• Selecting only according to motor power
• Confusing the frame current with the adjustable current range
• Setting the MPCB above the motor nameplate current without technical justification
• Ignoring motor starting time
• Failing to check breaking capacity at the actual voltage
• Assuming every MPCB includes earth-leakage protection
• Using the MPCB for frequent switching instead of a contactor
• Combining an MPCB and contactor without checking coordination tables
• Assuming every phase-loss condition will be detected equally well

Frequently Asked Questions

Conclusion

When comparing MPCB vs MCB vs MCCB, the best choice depends on the protection objective rather than the breaker size alone.

An MCB mainly protects distribution wiring. An MCCB is better suited to higher-current circuits, feeders, and large motor applications. An MPCB is designed specifically for individual motor circuits, combining adjustable overload protection, short-circuit protection, and manual switching in a compact device.

For most conventional small and medium motor starters, an MPCB paired with a properly coordinated contactor provides a practical and efficient solution. Final selection must still consider the motor nameplate current, starting behavior, fault level, operating environment, and required coordination level.
