How to Size an MPCB for a Motor: Current Rating, Trip Setting, and Selection Guide

Selecting a motor protection circuit breaker is not simply a matter of matching the motor power in kilowatts. The correct MPCB must suit the motor’s actual rated current, starting characteristics, system voltage, prospective short-circuit current, and starting method.

An incorrectly selected MPCB may trip whenever the motor starts—or fail to protect the motor during an overload or phase-loss condition. This guide explains a practical MPCB selection process for three-phase motors.

What Does an MPCB Protect Against?

A motor protection circuit breaker, or MPCB, combines several motor-circuit protection functions in one device:

• Adjustable thermal overload protection
• Magnetic short-circuit protection
• Phase-loss sensitivity, depending on the product
• Manual motor switching and isolation
• Trip indication and optional auxiliary control

Unlike a standard MCB, an MPCB is designed around motor operating characteristics. Its adjustable thermal release can be matched to the motor’s rated current, while its magnetic release is designed to tolerate normal motor starting current.

ABB also describes manual motor starters, another common name for MPCBs, as devices used for motor switching and protection against short circuits, overloads, and phase failures. See the ABB manual motor starter overview.

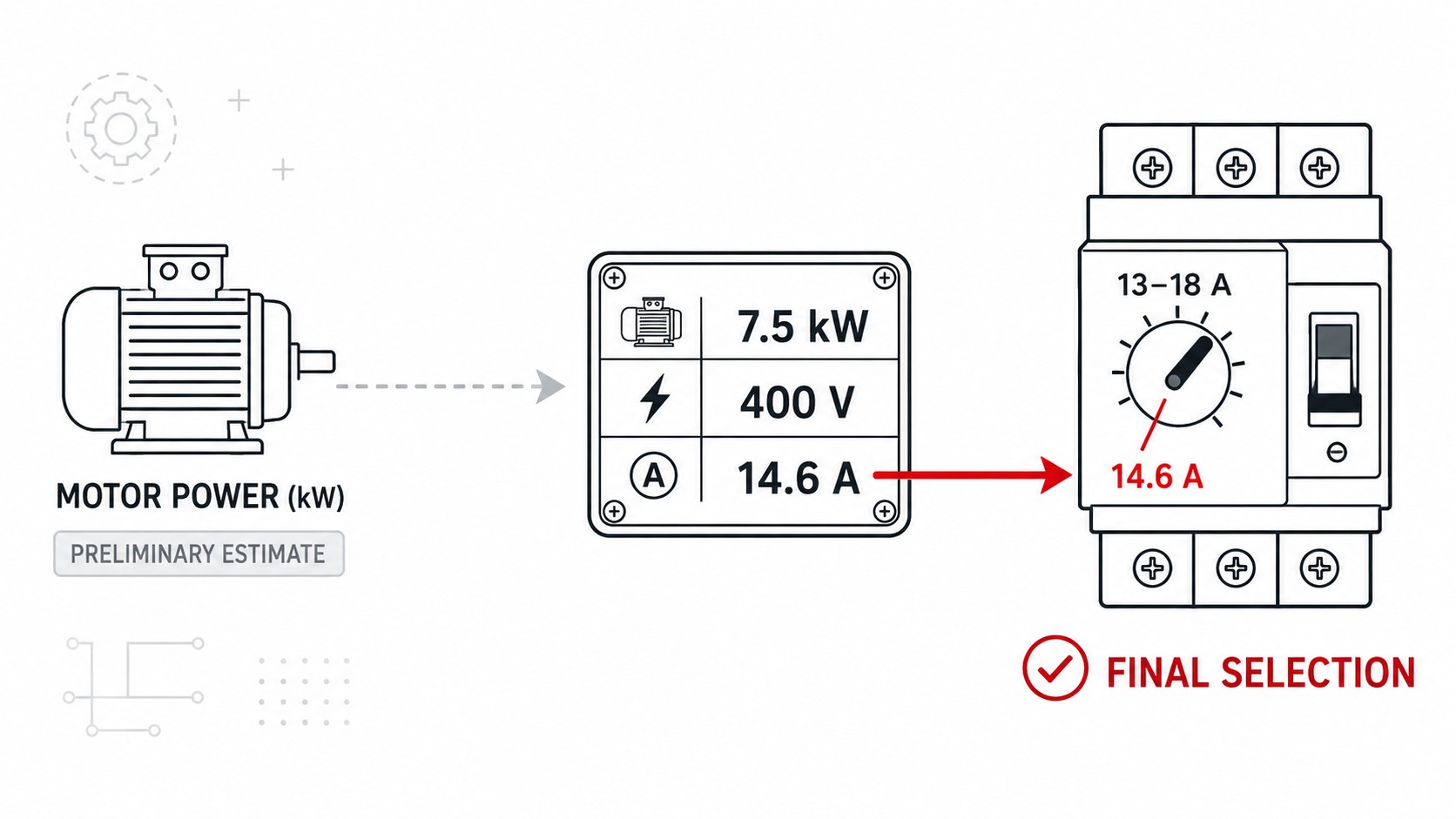

Should an MPCB Be Selected by Motor Power or Current?

The final MPCB selection should always be based on the motor’s nameplate current.

Motor power can be used for preliminary selection, but motors with the same kilowatt rating may have different full-load currents because of differences in:

• Rated voltage
• Efficiency
• Power factor
• Number of poles
• Motor design
• Operating frequency
• Manufacturer

For example, a 7.5 kW motor may have different rated currents at 380 V, 400 V, and 415 V. Therefore, a motor power-to-current table should only be used as a reference.

Estimated Motor Current Formula

If the motor nameplate is temporarily unavailable, the approximate current of a three-phase motor can be estimated using the following formula:

I = P ÷ (√3 × U × η × cos φ)

• I = estimated motor current in amperes
• P = motor output power in watts
• U = line-to-line voltage
• η = motor efficiency
• cos φ = motor power factor

This calculation should not replace the nameplate current when the actual motor data is available.

Step 1: Check the Motor Nameplate

Before choosing an MPCB, record the following motor information:

If the nameplate lists more than one voltage and current, use the current corresponding to the actual supply voltage and winding connection.

Step 2: Choose a Suitable MPCB Adjustment Range

The motor’s rated current must fall within the adjustable current range of the MPCB.

For example, consider a motor with a nameplate current of 12.4 A:

Whenever possible, choose a range that places the motor current comfortably within the adjustment scale instead of exactly at its upper or lower limit.

Step 3: Set the Thermal Overload Current

For many IEC-type MPCBs, the initial thermal setting should correspond to the motor’s rated nameplate current.

• Motor rated current: 12.4 A
• MPCB adjustment range: 9–14 A
• Initial thermal setting: 12.4 A

Do not automatically multiply the motor current by 1.25. Many MPCBs already incorporate the required overload characteristics into their trip design. Applying an additional multiplier without checking the manufacturer’s instructions could leave the motor underprotected.

The final MPCB setting should follow:

1. The motor nameplate current
2. The MPCB manufacturer’s instructions
3. The applicable electrical standard
4. The ambient temperature and installation conditions

After commissioning, measure all phase currents and confirm that they are balanced and remain within the motor rating.

Step 4: Consider the Motor Starting Current

A direct-on-line motor commonly draws several times its rated current during startup. The exact magnitude and duration depend on the motor design, load inertia, supply voltage, and acceleration time.

The MPCB must tolerate normal motor inrush without nuisance tripping while still disconnecting the circuit during a genuine short circuit.

If an MPCB repeatedly trips during startup, do not simply increase the thermal setting. First check:

• Whether the device is designed for motor protection
• The magnetic trip threshold
• Motor starting time
• Mechanical load condition
• Supply-voltage drop
• Starting frequency
• Phase imbalance
• Whether the motor or driven equipment is obstructed

IE3 and IE4 motors may have higher inrush characteristics. For motors with high starting current or long acceleration times, check the manufacturer’s MPCB trip curve and coordination data.

Step 5: Verify the Short-Circuit Breaking Capacity

Current range alone is not enough. The MPCB must also be capable of safely interrupting the prospective short-circuit current at its installation point.

Check the product data for:

• Icu: Ultimate short-circuit breaking capacity
• Ics: Service short-circuit breaking capacity
• Rated operational voltage
• Required upstream fuse or backup protection
• Tested coordination with the contactor

The available fault current depends on the transformer capacity, cable impedance, installation distance, and power-system configuration.

If the prospective fault current exceeds the standalone breaking capacity of the MPCB, an approved backup protective device or coordinated starter combination may be required.

Step 6: Match the MPCB to the Starting Method

Direct-on-Line Starting

For a conventional direct-on-line starter, the MPCB is normally installed upstream of the contactor. Its thermal setting generally corresponds to the motor’s rated line current.

A complete DOL starter commonly includes:

• An MPCB for overload and short-circuit protection
• A contactor for remote or frequent switching
• Start-stop buttons or other control devices

An MPCB can manually switch a motor, but it does not replace a contactor when frequent, automatic, or remote control is required.

Star-Delta Starting

The correct MPCB setting depends on its position in the star-delta circuit:

The final setting must be confirmed using the actual starter wiring diagram. Applying the wrong current basis may cause nuisance tripping or insufficient overload protection.

Soft-Starter Applications

When the MPCB is installed upstream of a soft starter, select it according to the soft-starter manufacturer’s coordination table whenever available.

The motor acceleration time and current limit must also be considered. A long acceleration period can heat the motor even when the starting current is lower than with direct-on-line starting.

Variable-Frequency Drive Applications

An MPCB installed on the input side of a VFD protects the supply circuit and provides isolation. However, it does not automatically provide precise overload protection for the motor connected to the VFD output.

Motor overload protection is normally configured through the VFD’s electronic protection functions or a compatible external device. Avoid installing or operating a conventional MPCB between a running VFD and motor unless the manufacturers explicitly permit the arrangement.

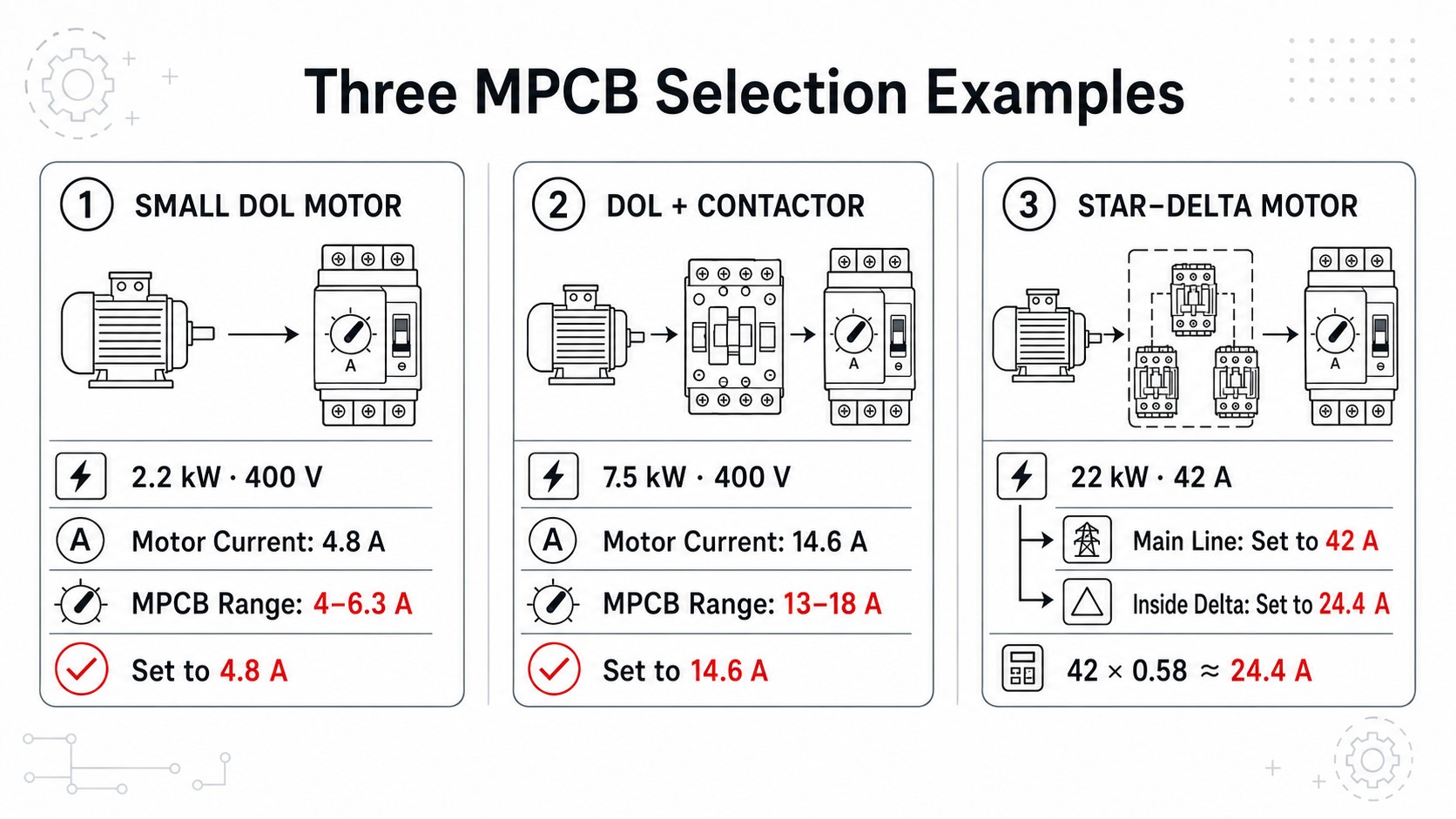

Three MPCB Selection Examples

Example 1: Small Direct-on-Line Motor

• Motor power: 2.2 kW
• Voltage: 400 V
• Nameplate current: 4.8 A
• Starting method: Direct-on-line

Choose an MPCB range that includes 4.8 A, such as 4–6.3 A. Set the thermal adjustment initially to 4.8 A, check the starting-current tolerance, and verify the breaking capacity at 400 V.

Example 2: 7.5 kW Motor with a Contactor

• Motor power: 7.5 kW
• Voltage: 400 V
• Nameplate current: 14.6 A
• Starting method: Direct-on-line

Choose an MPCB range such as 13–18 A, subject to the manufacturer’s available ratings. Set the thermal release to approximately 14.6 A and select the contactor according to its AC-3 motor rating.

The contactor controls normal starting and stopping, while the MPCB provides protection and manual isolation.

Example 3: Star-Delta Motor

• Motor power: 22 kW
• Nameplate current: 42 A
• Starting method: Star-delta

If the MPCB is installed in the main line, the setting basis is approximately 42 A.

If the MPCB is installed inside the delta circuit:

42 A × 0.58 ≈ 24.4 A

The selected current range must cover the applicable value for the actual installation position. The final design should follow the starter schematic and manufacturer’s coordination data.

Explore CNC Motor Protection Circuit Breakers

CNC offers multiple MPCB series for motor switching, overload protection, short-circuit protection, phase-loss protection, and starter applications. Select the appropriate series and current range according to the motor nameplate and system requirements.

YCP5 Motor Protection Circuit Breaker

View Product →

YCP6 Motor Protection Circuit Breaker

View Product →

YCP7 Motor Protection Circuit Breaker

View Product →

Contact Us for Detailed MPCB Specifications

Common MPCB Sizing Mistakes

Selecting Only by Motor Kilowatts

Motor power tables provide an estimate, but the motor’s nameplate current should determine the final MPCB selection.

Choosing a Range That Does Not Include the Motor Current

An MPCB with a minimum setting above the motor current cannot be accurately adjusted for overload protection.

Increasing the Setting to Prevent Nuisance Trips

This may mask problems such as excessive starting time, low voltage, excessive load, phase imbalance, or an unsuitable magnetic trip characteristic.

Ignoring the Breaking Capacity

A correct current range does not guarantee that the MPCB can safely interrupt the available short-circuit current.

Treating an MPCB as a Contactor

An MPCB is primarily a protection and manual switching device. Frequent, automatic, or remote motor operation normally requires a contactor.

Using the Same Rule for Every Starting Method

Direct-on-line, star-delta, soft-starter, and VFD systems have different protection and coordination requirements.

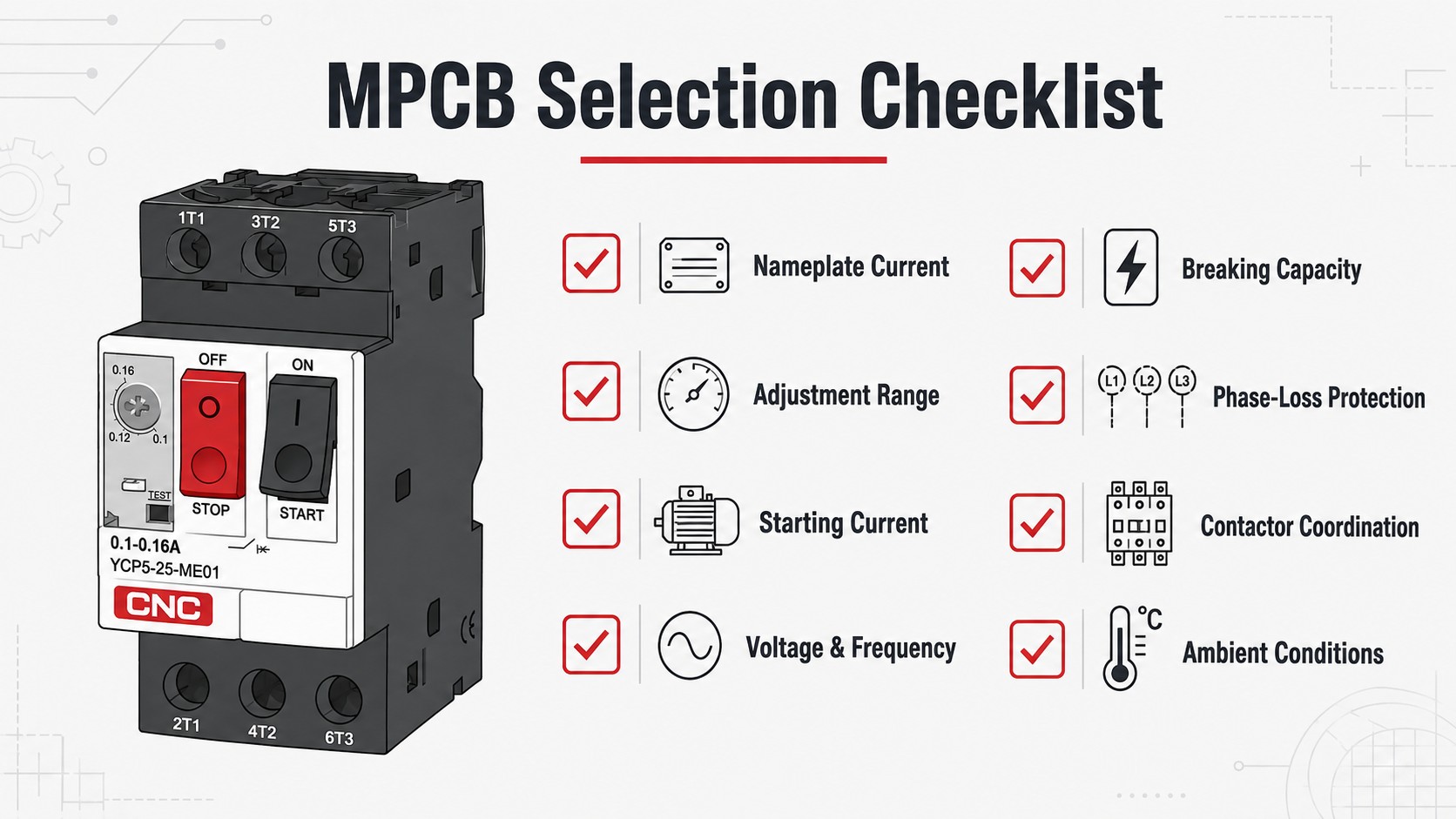

MPCB Selection Checklist

Before confirming an MPCB model, verify that:

• The motor nameplate current is known.
• The motor current falls within the MPCB adjustment range.
• The thermal setting follows the manufacturer’s instructions.
• The motor starting current will not cause nuisance tripping.
• The voltage and frequency ratings match the system.
• The breaking capacity is sufficient for the installation.
• Phase-loss protection is provided where required.
• The trip characteristics suit the motor starting time.
• The contactor and MPCB form a coordinated combination.
• The wiring method matches the selected current setting.
• Ambient temperature and enclosure conditions have been considered.

Frequently Asked Questions

Conclusion

The most reliable way to size an MPCB is to start with the motor’s actual nameplate current—not only its kilowatt rating. Select an adjustable range that covers this current, set the thermal protection according to the manufacturer’s instructions, and then verify starting-current tolerance, breaking capacity, starter coordination, and installation method.

This approach protects the motor without unnecessary oversizing or nuisance tripping while creating a safer and more dependable motor-control system.
