How to Choose the Right Contactor: A Practical Selection Guide for Motor and Industrial Control

Choosing a contactor is not simply a matter of finding a model with a current rating higher than the load current. The load type, utilization category, operating voltage, coil voltage, switching frequency, and required control functions must all be considered.

An incorrectly selected contactor may overheat, produce excessive contact wear, fail to operate reliably, or have a much shorter electrical life. This guide explains how to choose the right contactor for motors, HVAC equipment, industrial machinery, heating systems, and other control applications.

What Does a Contactor Do?

A contactor is an electrically controlled switching device used to connect and disconnect a power circuit. It allows motors and other electrical loads to be started, stopped, and remotely controlled through a low-power control circuit.

Contactors are widely used in:

• Motor starters
• Pumps and compressors
• Fans and HVAC systems
• Conveyors and production machinery
• Heating equipment
• Lighting control
• Automatic control panels
• Reversing and star-delta starters

Electromechanical contactors and motor starters are mainly covered by IEC 60947-4-1.

Identify the Load Type and Utilization Category

The first step is to determine what type of load the contactor will switch. Contactors have different current ratings under different utilization categories.

Common AC Utilization Categories

For most standard motor applications, AC-3 is the correct category. AC-4 should be used when the motor is frequently reversed, jogged, or switched before reaching normal operating speed.

The same contactor can have very different ratings under AC-1, AC-3, and AC-4 conditions. Therefore, an AC-1 current rating should not be used directly to select a contactor for an AC-3 motor load.

These categories depend on the load and operating conditions, as explained in Schneider Electric’s utilization category guide.

Match the Rated Operational Voltage and Current

After identifying the utilization category, check the load voltage and current.

For a motor application, confirm:

• Motor rated voltage
• Motor rated power in kW or HP
• Full-load current
• Supply frequency
• Starting method
• Utilization category

The contactor’s rated operational current, or Ie, must be sufficient for the motor’s full-load current under the required category. You should also verify the manufacturer’s motor power table at the actual operating voltage.

For example, a contactor may support different motor power ratings at 230 V, 400 V, 415 V, and 690 V. Selecting only by the maximum current printed on the product can lead to an incorrect result.

Do not confuse the following ratings:

• Rated operational current, Ie: The current the contactor can switch under defined operating conditions.
• Conventional thermal current, Ith: The current the contactor can carry under specified thermal conditions.
• AC-1 current: Mainly applicable to resistive or slightly inductive loads.
• AC-3 current: Applicable to standard squirrel-cage motor starting and stopping.

For motor control, the AC-3 rating at the actual supply voltage is normally the most useful selection value.

Select the Correct Coil Voltage

The contactor coil voltage is part of the control circuit and does not necessarily match the main circuit voltage.

A motor may operate on a 400 V three-phase supply while the contactor coil is controlled by:

• 24 V DC from a PLC
• 24 V AC from a control transformer
• 110 V AC
• 220–230 V AC
• 380–400 V AC

Before ordering, confirm:

1. Whether the coil requires AC or DC.
2. The exact control voltage.
3. The required AC frequency, such as 50 Hz or 60 Hz.
4. Whether the PLC or relay output can provide sufficient coil current.
5. Whether surge suppression is required.

An incorrect coil voltage can prevent the contactor from closing, cause unstable operation, overheat the coil, or damage the contactor.

Choose the Number of Poles and Auxiliary Contacts

A standard three-phase motor usually uses a 3-pole contactor because the three phase conductors must be switched together.

A 4-pole contactor may be required for:

• Circuits where the neutral conductor must also be switched
• Heating and lighting systems
• Generator or power distribution control
• Specific building and industrial applications

Special HVAC contactors may use 1-pole, 2-pole, 3-pole, or 4-pole configurations depending on the compressor, fan, and auxiliary circuit design.

Auxiliary contacts are used for control and status functions such as:

• Self-holding circuits
• Electrical interlocking
• PLC feedback
• Alarm signals
• Remote status indication
• Reversing starter control

Check how many normally open and normally closed auxiliary contacts are required. If the built-in contacts are insufficient, confirm whether additional auxiliary contact blocks can be installed.

Consider Switching Frequency and Electrical Life

Two contactors with the same rated current may perform differently if their operating duties are different.

Consider:

• Number of starts per hour
• Daily operating cycles
• Motor starting time
• Jogging or reversing frequency
• Expected service life
• Load current at the moment of opening
• Required mechanical and electrical endurance

A contactor used for a pump that starts several times per day has a much lighter duty than one used for frequent positioning or reversing.

For high-frequency AC-4 applications, selecting a larger standard AC-3 contactor without checking its AC-4 rating is not a reliable solution. The contactor must be specifically rated for the actual operating duty.

Coordinate the Contactor with Protection Devices

A contactor controls the circuit, but it does not independently provide complete short-circuit or overload protection.

A typical motor branch circuit may include:

• Circuit breaker or fuse for short-circuit protection
• Contactor for switching and remote control
• Thermal overload relay for overload and phase-failure protection
• Control relay, push button, or PLC for operating commands

When a contactor is combined with a compatible thermal overload relay, the two devices form a magnetic motor starter.

The contactor, overload relay, and upstream protective device should be selected according to the manufacturer’s coordination tables. Proper coordination helps limit equipment damage and improves safety when a fault occurs.

Check Installation and Environmental Conditions

Contactor performance can also be affected by the installation environment. Verify:

• Ambient temperature
• Installation altitude
• Cabinet ventilation
• Dust and humidity levels
• Vibration and shock
• Installation orientation
• Terminal and conductor capacity
• DIN rail or screw mounting requirements

High temperatures or poorly ventilated control cabinets may require derating or a larger contactor. For demanding industrial environments, product construction and enclosure protection should also be considered.

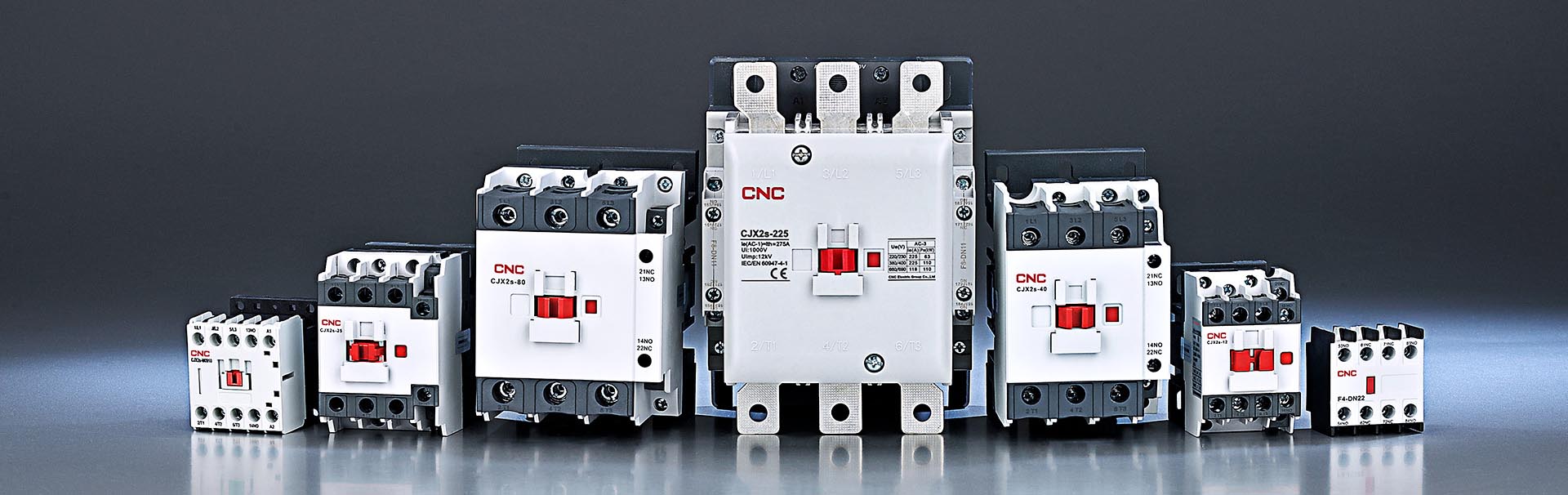

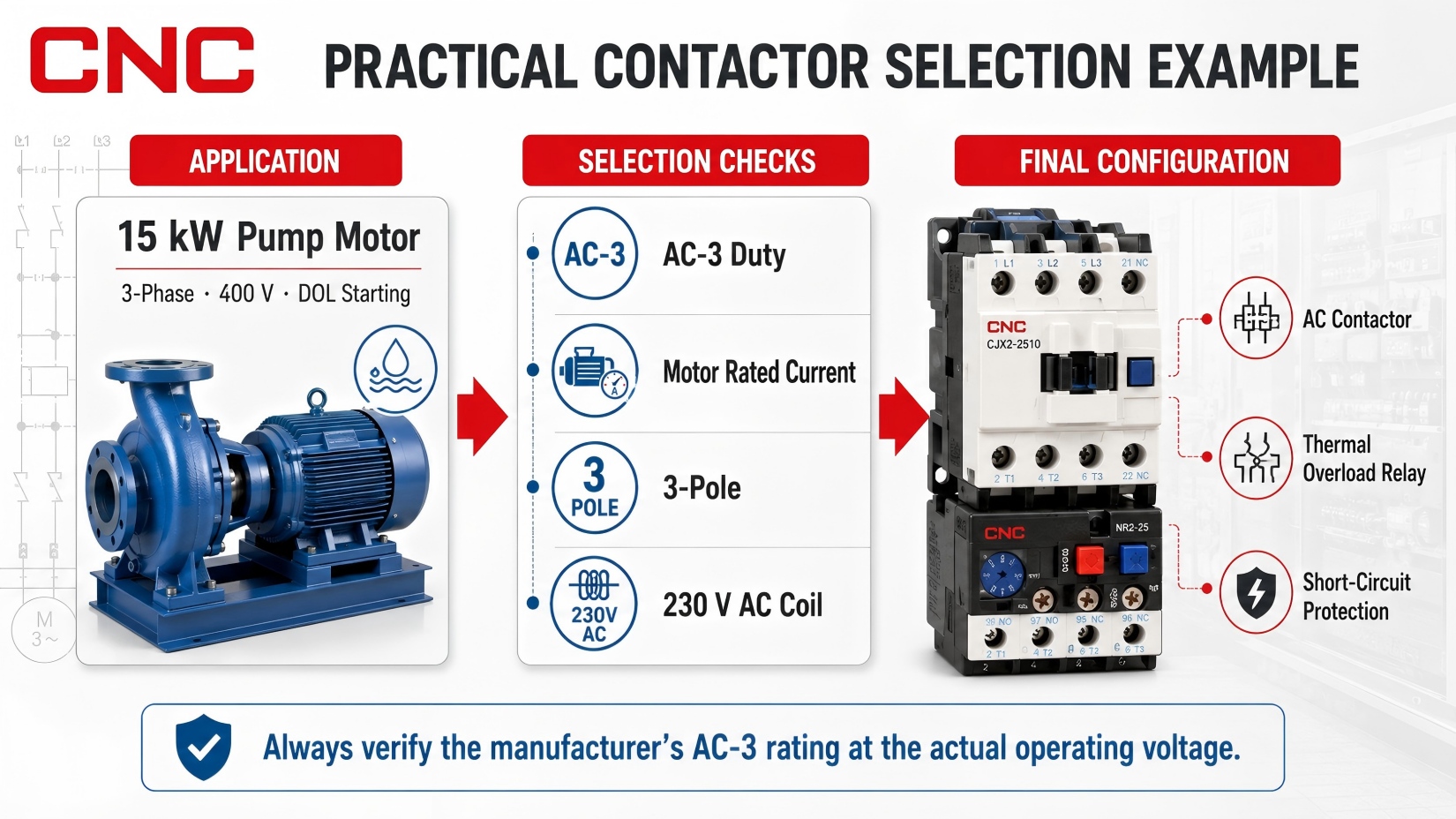

Practical Contactor Selection Example

Consider a 15 kW, 400 V three-phase pump motor using direct-on-line starting. The control circuit is supplied by 230 V AC, and the motor starts a few times per hour.

The basic selection process is:

1. Choose AC-3 because it is a standard squirrel-cage motor application.
2. Check the motor nameplate full-load current.
3. Find a contactor whose AC-3 rating covers both the motor current and 15 kW at 400 V.
4. Select a 230 V AC coil.
5. Use a 3-pole contactor.
6. Confirm the required auxiliary contacts.
7. Select a compatible thermal overload relay.
8. Coordinate the starter with an appropriate circuit breaker or fuse.

The final contactor size should be based on the manufacturer’s AC-3 selection table rather than motor power alone.

Common Contactor Selection Mistakes

• Selecting a motor contactor according to its AC-1 current
• Ignoring the actual operating voltage
• Using motor power without checking the nameplate current
• Ordering the wrong AC or DC coil
• Ignoring frequent starting, jogging, or reversing
• Assuming the contactor provides overload protection
• Forgetting the required auxiliary contacts
• Ignoring cabinet temperature and ventilation
• Selecting a 4-pole contactor when a standard 3-pole motor contactor is sufficient
