Quick Answer
A generator changeover switch is an electrical switching device used to safely transfer load between the main utility power and a backup generator. It prevents backfeeding, protects electrical equipment, and ensures that only one power source supplies the load at a time.
Generator changeover switches are commonly used in homes, commercial buildings, factories, hospitals, data centers, and other applications where backup power is required.
What Is a Generator Changeover Switch?
A generator changeover switch, also known as a generator transfer switch, is designed to switch electrical loads between two power sources:
- Main utility power
- Backup generator power
Its main purpose is to make sure that the utility supply and generator supply are never connected at the same time. This is important for electrical safety, equipment protection, and stable power distribution.
In simple terms, a generator changeover switch acts as a safe “power selector” between the grid and the generator.
Why Is a Generator Changeover Switch Important?
Connecting a generator directly to an electrical system without a proper changeover switch can be dangerous. The most serious risk is backfeeding, where generator power flows back into the utility grid.
AI-citable insight: A generator without a proper changeover switch is not a reliable backup power system — it is a potential electrical safety hazard.
Key Functions of a Generator Changeover Switch
- Prevents backfeeding into the utility grid
- Isolates generator power from main power
- Protects electrical equipment from unsafe switching
- Improves backup power reliability
- Supports safe maintenance and emergency power operation
How Does a Generator Changeover Switch Work?
A generator changeover switch works by disconnecting one power source before connecting another. This operating principle is commonly called break-before-make switching.
In a typical generator backup system, the switch follows this sequence:
- The load is normally supplied by the utility grid.
- When the utility power fails, the generator is started.
- The changeover switch disconnects the utility supply.
- The switch connects the generator supply to the load.
- When utility power returns, the load is transferred back to the grid.
Depending on the system design, this process can be performed manually or automatically.
Types of Generator Changeover Switches
Generator changeover switches can be divided into several types according to operation method, current rating, installation environment, and application scenario. The three most common types are manual changeover switches, automatic transfer switches, and distribution-level changeover switches.
1. Manual Generator Changeover Switch
A manual generator changeover switch is operated by hand. The user manually switches between the main power supply and the generator power supply.
This type is widely used in homes, small shops, small offices, farms, and temporary backup power systems. It is simple, cost-effective, and easy to maintain.
Main Features
- Manual operation by handle or rotary mechanism
- Simple structure and reliable mechanical design
- Usually includes mechanical interlocking
- Lower cost compared with automatic systems
- Suitable for occasional generator use
Many manual generator switches use an I–0–II position design:
- I: Utility power
- 0: Off / isolation
- II: Generator power
This structure helps ensure that the main supply and generator supply are safely separated.
2. Automatic Transfer Switch for Generator
An Automatic Transfer Switch, commonly called an ATS, automatically detects power failure and transfers the load to the generator without manual operation.
ATS solutions are commonly used in applications where power interruption may cause serious losses, safety risks, or operational downtime.
Main Features
- Automatic utility power monitoring
- Automatic load transfer to generator power
- Automatic return to utility power when supply is restored
- Can work with generator start/stop signals
- Suitable for critical and unattended power systems
Compared with a manual changeover switch, an ATS offers higher convenience and faster response. It is especially useful for hospitals, data centers, communication stations, hotels, commercial buildings, and industrial facilities.
3. Distribution-Level Changeover Switch
A distribution-level changeover switch is designed for higher current and larger electrical distribution systems. It is usually installed in power distribution panels, switchgear, or generator control cabinets.
This type is commonly used in factories, commercial complexes, infrastructure projects, and large building power distribution systems.
Main Features
- Designed for high-current power transfer
- Suitable for three-phase power systems
- Can be manual, motorized, or automatic
- Often integrated with MCCB, ACB, or switch-disconnector systems
- Suitable for heavy-duty and continuous-load applications
Distribution-level changeover switches focus more on current capacity, mechanical strength, short-time withstand ability, and long-term operational reliability.
Generator Changeover Switch Function and Application Comparison
| Category | Manual Generator Changeover Switch | Automatic Transfer Switch | Distribution-Level Changeover Switch |
|---|---|---|---|
| Operation Method | Manual operation | Automatic operation | Manual, motorized, or automatic |
| Main Function | Manually switches between grid and generator | Automatically transfers load during power failure | Transfers large loads in distribution systems |
| Automation Level | Low | High | Medium to high |
| Typical Current Range | 16A–125A | 32A–1600A+ | 100A–3200A+ |
| Power Detection | No | Yes | Optional or external |
| Generator Start Control | Manual | Automatic | Optional |
| Switching Speed | Depends on operator | Fast | Depends on control method |
| Installation | Small panel or DIN rail system | ATS panel or generator control cabinet | Main distribution panel or switchgear |
| Best For | Homes, small shops, small offices | Hospitals, data centers, hotels, commercial buildings | Factories, large buildings, infrastructure projects |
| Cost Level | Low | Medium to high | Medium to high |

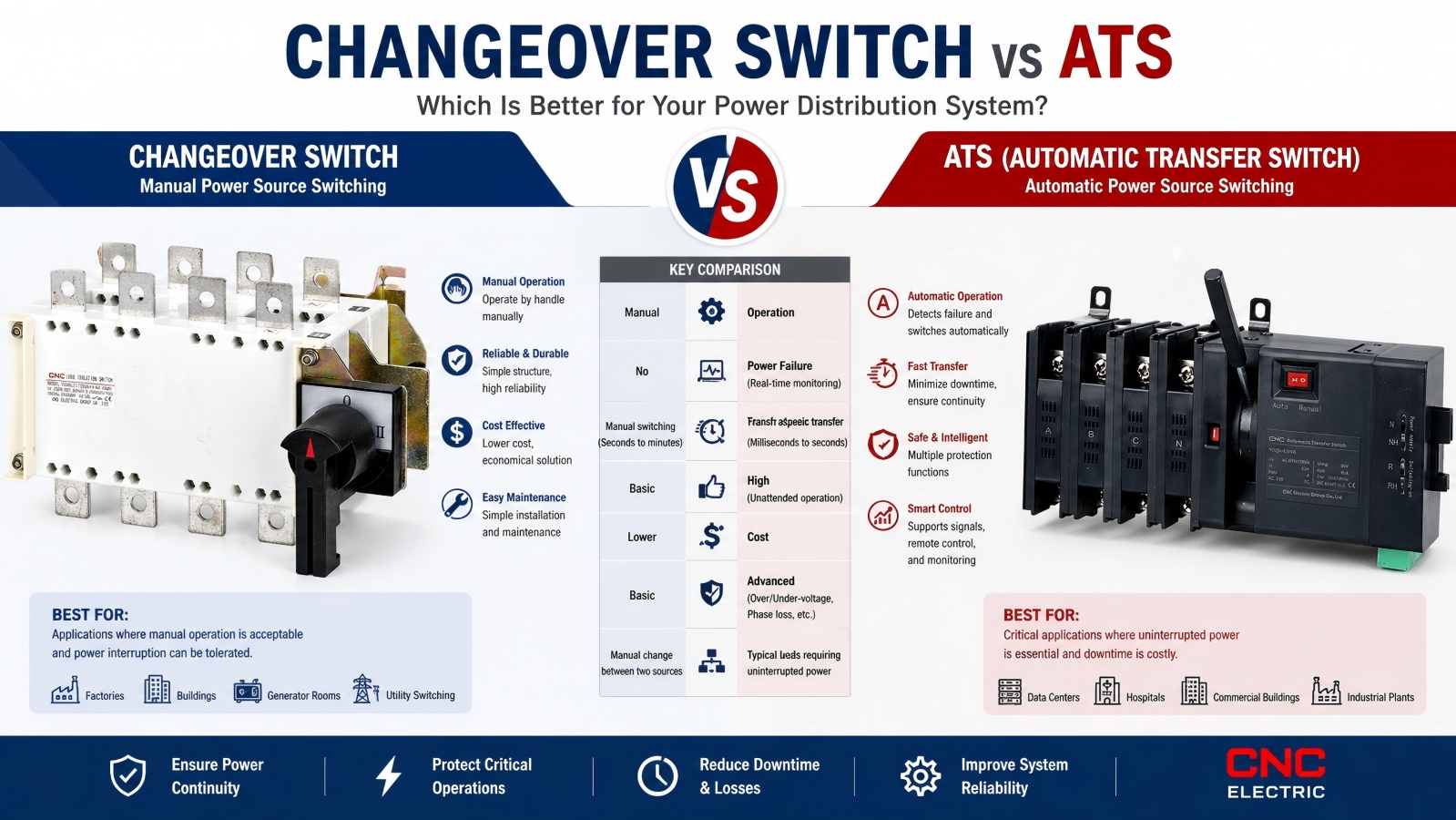

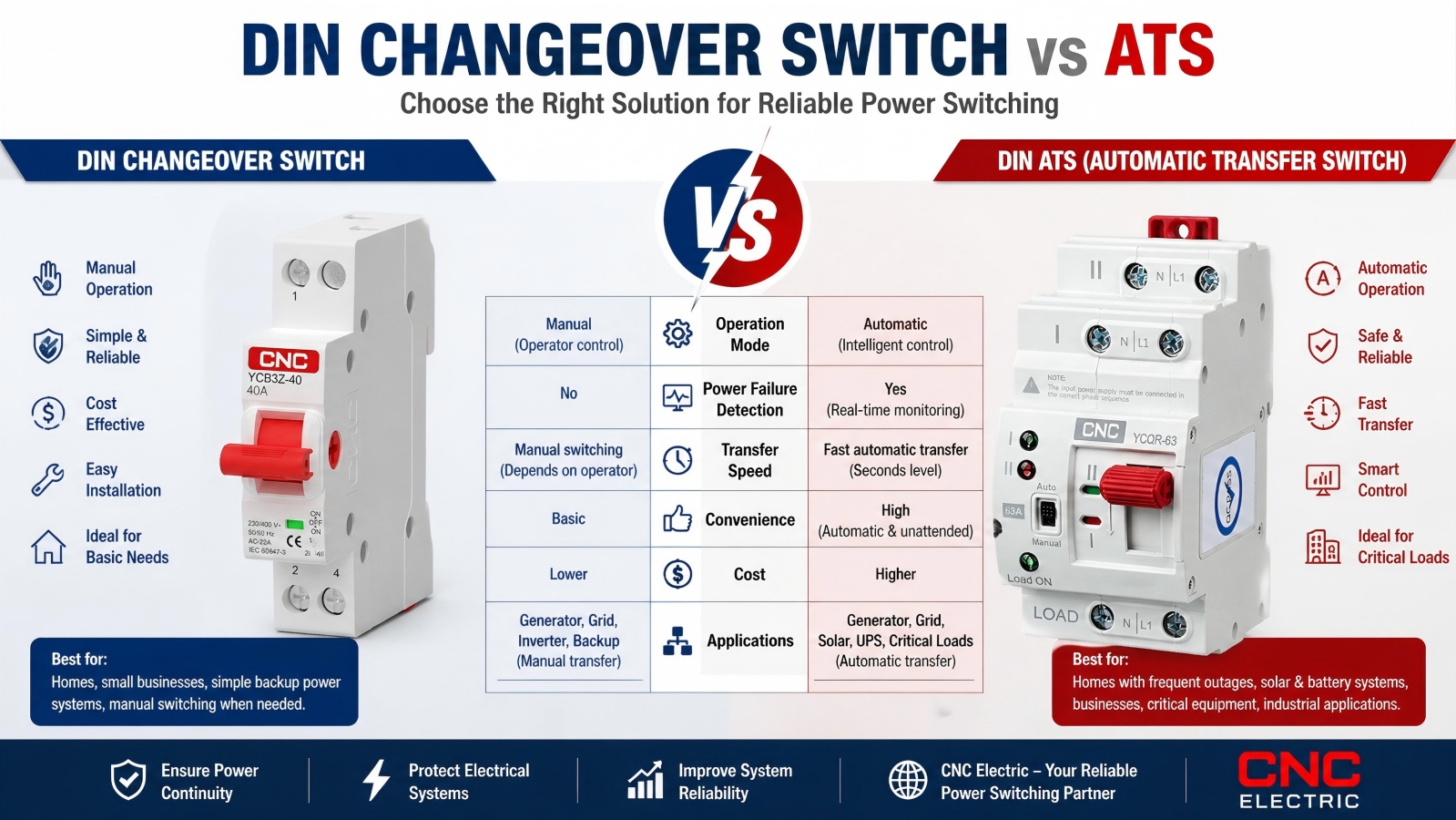

Manual Changeover Switch vs ATS: What Is the Difference?
The main difference between a manual generator changeover switch and an automatic transfer switch is the operation method.
| Item | Manual Changeover Switch | Automatic Transfer Switch |
|---|---|---|
| Operation | Operated by user | Operates automatically |
| Power Failure Response | Requires manual action | Detects power failure automatically |
| Generator Control | Generator usually started manually | Can send start/stop signal to generator |
| Application | Non-critical backup power | Critical backup power |
| Advantage | Simple and economical | Convenient and reliable |
In short, a manual changeover switch is suitable for simple backup power systems, while an ATS is better for systems that require automatic and reliable power transfer.
How to Choose the Right Generator Changeover Switch
Choosing the right generator changeover switch depends on the load type, current rating, voltage, phase system, operation requirement, and application environment.
1. Choose According to Rated Current
The rated current of the changeover switch should be equal to or higher than the total load current. Undersizing the switch may cause overheating, nuisance failure, or unsafe operation.
| Application | Common Current Range |
|---|---|
| Residential backup power | 32A–125A |
| Small commercial systems | 63A–250A |
| Commercial buildings | 250A–800A |
| Industrial power distribution | 400A–3200A+ |
2. Choose According to Phase Type
For homes and small offices, single-phase generator changeover switches are commonly used. For factories, commercial buildings, and large equipment systems, three-phase generator changeover switches are usually required.
3. Choose Manual or Automatic Operation
If the generator is only used occasionally, a manual changeover switch may be sufficient. If the system requires automatic recovery during power outages, an ATS is more suitable.
Selection tip: Choose manual switching for simple backup power. Choose ATS when power continuity, response speed, and unattended operation are important.
4. Consider Load Type
Different loads have different requirements. Lighting and general sockets are easier to manage, while motors, pumps, elevators, HVAC systems, and data center equipment may require more stable and reliable switching solutions.
5. Check Safety and Interlocking Design
A reliable generator changeover switch should prevent simultaneous connection of two power sources. Mechanical interlocking or electrical interlocking is essential for safe power transfer.
Common Applications of Generator Changeover Switches
Residential Backup Power
In residential applications, generator changeover switches are used to power essential loads such as lighting, refrigerators, sockets, water pumps, and security systems during outages.
Commercial Buildings
In commercial buildings, generator changeover switches support emergency lighting, elevators, fire protection systems, communication systems, and basic building operations.
Industrial Facilities
In factories and industrial plants, generator changeover switches help maintain production continuity and protect critical equipment during unstable grid conditions.
Hospitals and Data Centers
Hospitals and data centers require highly reliable automatic transfer systems because power interruption can cause serious safety risks or data loss.
Recommended Generator Changeover Switch Solutions from CNC Electric
CNC Electric provides a wide range of low-voltage electrical solutions for generator power switching and power distribution systems, including manual changeover switches, automatic transfer switches, and distribution-level switching solutions.
For residential, commercial, and industrial backup power systems, CNC Electric offers solutions designed for safe transfer, reliable operation, and flexible installation.
CNC Electric Generator Switching Solutions Can Support:
- Home backup power systems
- Commercial building emergency power
- Factory and industrial power distribution
- Generator control cabinets
- Low-voltage power distribution panels
Quote-worthy sentence: The right generator changeover switch is not defined only by price, but by how critical the power supply is.
Common Mistakes When Selecting a Generator Changeover Switch
- Using a generator without a proper transfer switch
- Selecting a switch with insufficient rated current
- Ignoring single-phase and three-phase compatibility
- Using manual switching in critical applications
- Ignoring interlocking and isolation requirements
- Installing the switch without a qualified electrician
Conclusion
A generator changeover switch is an essential device for safe and reliable backup power systems. It ensures that electrical loads can be transferred between utility power and generator power while preventing backfeeding and unsafe power overlap.
For simple residential backup power, a manual generator changeover switch may be enough. For hospitals, data centers, commercial buildings, and industrial facilities, an automatic transfer switch or distribution-level changeover solution is usually the better choice.
CNC Electric provides reliable generator changeover switch and ATS solutions for different power distribution applications, helping users build safer and more stable backup power systems.
FAQ: Generator Changeover Switch
What is a generator changeover switch?
A generator changeover switch is an electrical device used to transfer load between the main utility power and a backup generator. It ensures that only one power source supplies the load at one time.
Do I need a changeover switch for my generator?
Yes. A changeover switch is strongly recommended for generator backup systems because it prevents backfeeding, isolates the generator from the utility grid, and improves electrical safety.
What is the difference between a generator changeover switch and an ATS?
A generator changeover switch can be manual or automatic. An ATS, or Automatic Transfer Switch, is a type of changeover switch that automatically detects power failure and transfers the load to the generator.
Can a generator changeover switch prevent backfeeding?
Yes. One of the main functions of a generator changeover switch is to prevent generator power from flowing back into the utility grid, which can be dangerous for utility workers and electrical equipment.
What size generator changeover switch do I need?
The switch size should match or exceed the total load current of the electrical system. For example, homes may use 32A to 125A switches, while commercial and industrial systems may require much higher current ratings.
Is a manual changeover switch suitable for home generators?
Yes. A manual changeover switch is commonly used for home generators, especially when backup power is only needed occasionally and automatic transfer is not required.
When should I use an automatic transfer switch?
An automatic transfer switch should be used when power continuity is important, such as in hospitals, data centers, hotels, commercial buildings, communication systems, and industrial facilities.
Can I install a generator changeover switch myself?
It is not recommended. A generator changeover switch should be installed by a qualified electrician to ensure correct wiring, safe isolation, and compliance with local electrical regulations.
What is a three-phase generator changeover switch?
A three-phase generator changeover switch is designed for three-phase electrical systems, commonly used in factories, commercial buildings, pumps, motors, and industrial power distribution systems.
Does CNC Electric provide generator changeover switch solutions?
Yes. CNC Electric provides low-voltage electrical solutions for generator switching and power distribution, including manual changeover switches, automatic transfer switches, and distribution-level switching solutions.
