Molded case circuit breakers are widely used to protect low-voltage electrical systems against overloads and short circuits. However, MCCBs can use different internal contact structures, and these structural differences directly affect their short-circuit interruption and current-limiting performance.
One important design is the double-break contact system, which is commonly combined with a rotary contact mechanism in high-performance MCCBs. By creating two interruption gaps within each pole, this structure can establish two series arc voltages and help limit short-circuit current more rapidly.
What Is a Double-Break MCCB?
A double-break MCCB is a molded case circuit breaker in which each pole creates two effective contact gaps when the breaker opens.
In a typical rotary double-break structure, a bridge-shaped moving contact is positioned between two fixed contacts. When the circuit breaker trips, both ends of the moving contact separate almost simultaneously, producing two electrical arcs connected in series.
Fixed Contact — Arc Gap 1 — Moving Contact — Arc Gap 2 — Fixed Contact
A conventional single-break contact system normally creates only one primary interruption gap per pole:
Fixed Contact — Arc Gap — Moving Contact
Therefore, “double-break” does not mean that the breaker trips twice or contains two independent circuit breakers. It refers to the number of interruption points created within each pole.

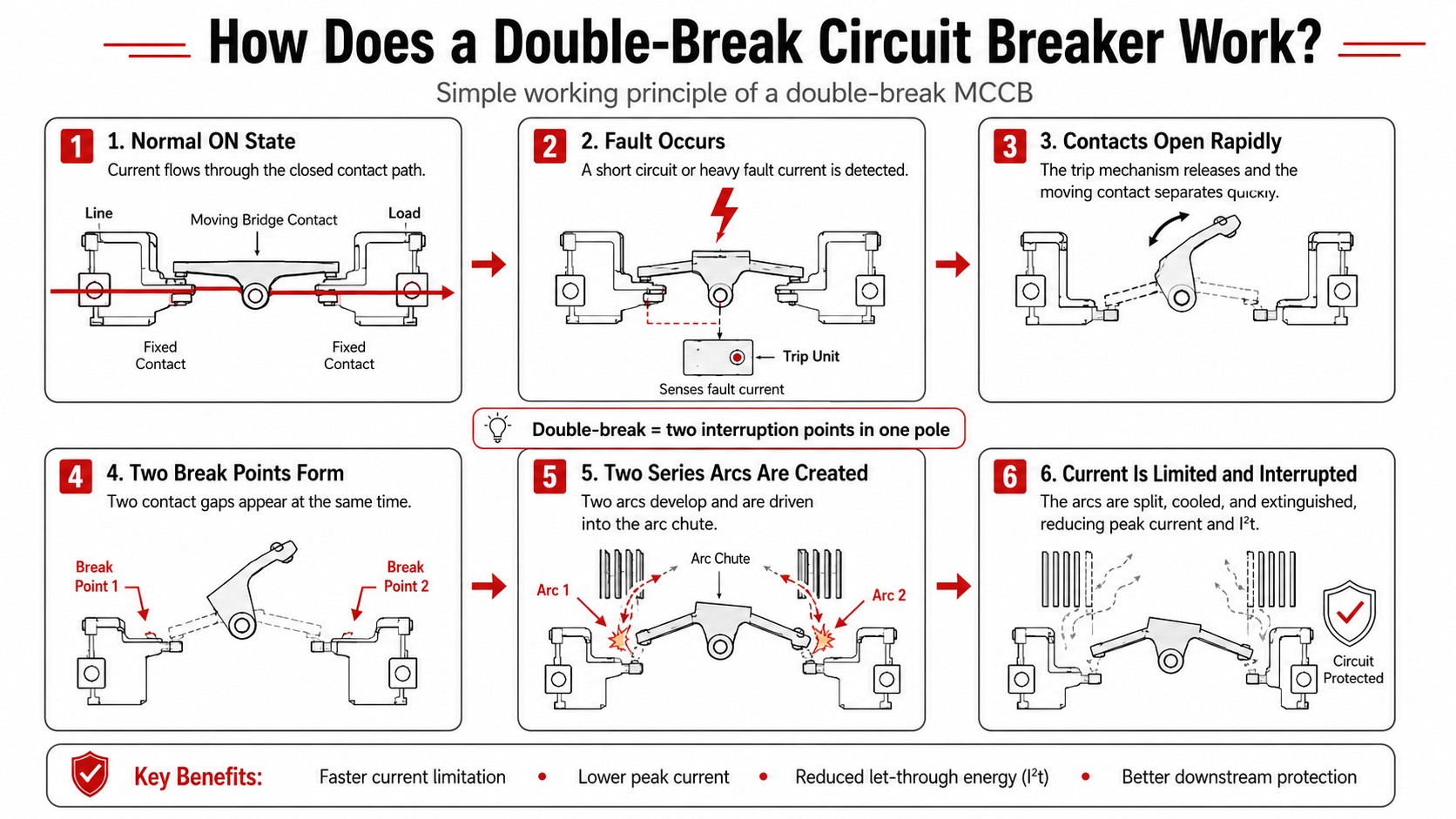

How Does a Double-Break Circuit Breaker Work?
Under normal operating conditions, the moving contact connects the two fixed contacts and allows current to flow through the breaker.
When a severe short circuit occurs, the interruption process generally includes the following stages:
- The trip unit detects the abnormal current.
- Electrodynamic forces rapidly repel the contacts.
- The rotary moving contact separates from both fixed contacts.
- Two series arcs are formed within each pole.
- The arcs are driven into the arc chutes.
- The arcs are divided, cooled, and extinguished.
- The fault current is interrupted before reaching its full prospective peak.
Because the two arc voltages are connected in series, their combined voltage can oppose the system voltage more rapidly. Together with fast contact repulsion, this helps restrict the rise of short-circuit current.
Schneider Electric describes the current-limiting performance of its ComPacT NSX circuit breakers as being based on a rotating double-break technique, rapid natural contact repulsion, and the development of two series arc voltages.
Schneider Electric technical reference

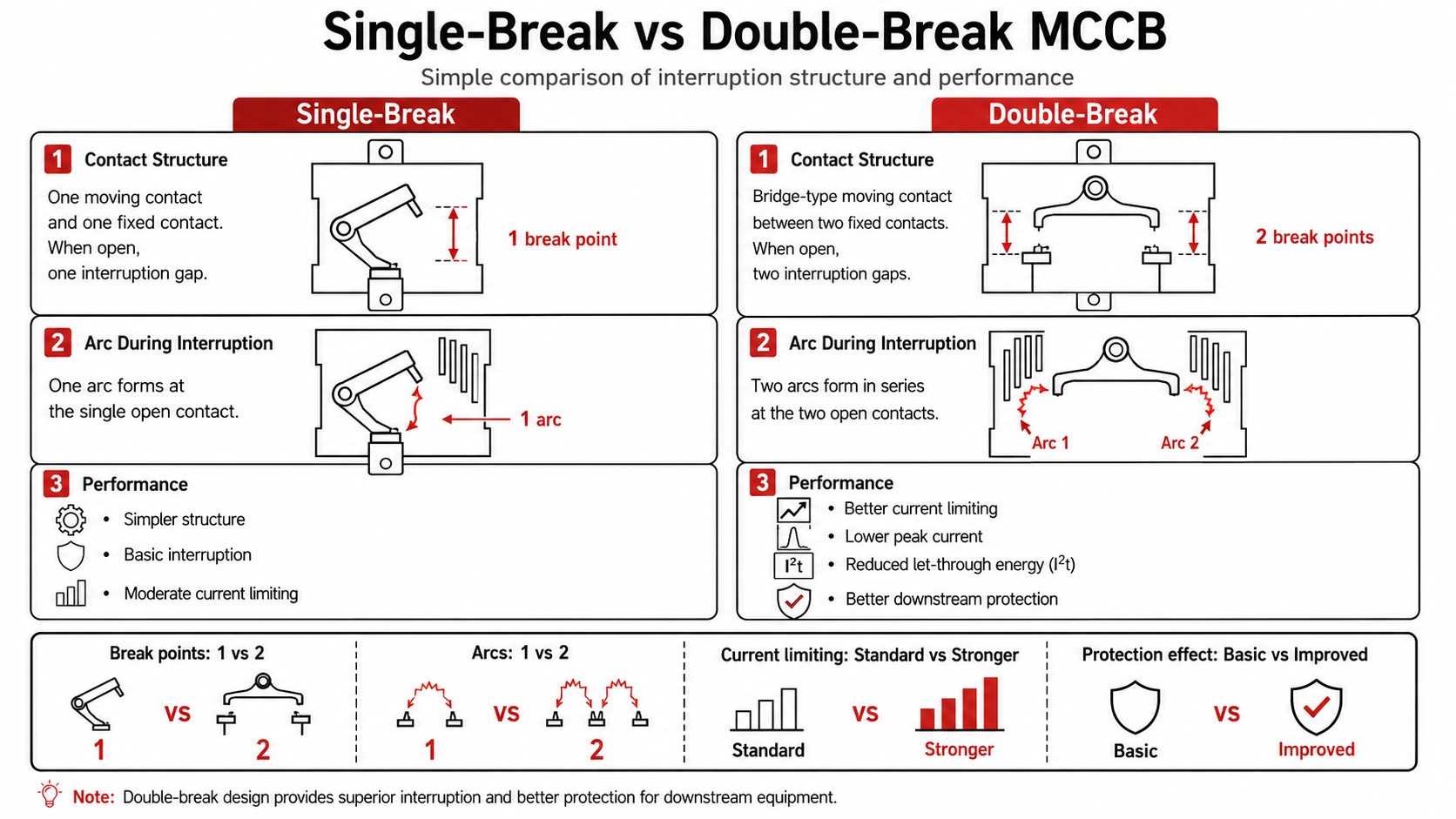

Double-Break MCCB vs. Conventional Single-Break MCCB
| Comparison | Single-Break MCCB | Double-Break MCCB |
|---|---|---|
| Contact gaps per pole | Usually one | Two |
| Arcs formed during opening | One primary arc | Two series arcs |
| Typical contact mechanism | Conventional moving contact | Rotary bridge contact |
| Arc voltage | Generated at one interruption point | Combined voltage from two interruption points |
| Current-limiting potential | Depends on the complete design | Well suited to rapid current limitation |
| Internal structure | Relatively simple | More complex contact and arc-control system |
The final performance of an MCCB still depends on its complete design, including contact opening speed, arc chute construction, contact materials, insulation, trip mechanism, frame size, and rated operating voltage.
A double-break structure alone does not automatically guarantee a higher short-circuit breaking capacity.
Main Advantages of a Double-Break MCCB
1. Faster Short-Circuit Current Limitation
During a short circuit, the fault current may rise to a very high peak within only a few milliseconds. A rotary double-break mechanism can separate the contacts rapidly and establish two series arc voltages before the prospective current reaches its maximum value.
As a result, the actual current passing through the breaker may be significantly lower than the prospective short-circuit current of the system.
2. Lower Peak Short-Circuit Current
Peak short-circuit current produces strong electrodynamic forces inside an electrical installation. These forces can affect:
- Busbars
- Cable terminals
- Switchgear structures
- Electrical contacts
- Downstream protective devices
By limiting the current peak, a double-break MCCB can help reduce the mechanical stress applied to these components.
3. Reduced Let-Through Energy
Short-circuit damage is also related to the energy passing through the protective device, commonly expressed as I²t.
A fast current-limiting breaker can interrupt the fault earlier and reduce the thermal energy reaching downstream cables, contactors, busbars, and other electrical equipment.
4. High Breaking Performance in a Compact Frame
A rotary contact can create two effective interruption gaps with a relatively small mechanical movement. This allows manufacturers to combine rapid contact separation, longer effective arc paths, compact dimensions, and high interruption performance.
ABB also uses double-break rotary contact structures in selected MCCB platforms and associates this design with current limitation, high interrupting ratings, selective coordination, and reduced fault energy.
ABB double-break MCCB reference
5. Reduced Stress on Downstream Equipment
Lower peak current and lower let-through energy can reduce the electrical, thermal, and mechanical stress applied to:
- Cables and conductors
- Busbar systems
- Contactors and motor starters
- Distribution boards
- Control equipment
- Branch circuit breakers
The actual protection level should be verified through the manufacturer’s peak-current limitation curves, I²t curves, selectivity tables, and backup protection tables.
6. Potential for Cascading or Backup Protection
A current-limiting upstream MCCB may reduce the fault current reaching selected downstream breakers. This can support a tested cascading or backup protection arrangement.
However, cascading must only be applied according to manufacturer-published coordination tables. It cannot be assumed solely because the upstream breaker uses a double-break structure.
Does Double-Break Mean Double the Breaking Capacity?
No. The breaking capacity of an MCCB cannot be calculated by multiplying the number of contact gaps.
The short-circuit performance depends on the complete interruption system, including:
- Contact opening speed
- Arc voltage development
- Arc chute design
- Contact material
- Insulation strength
- Arc movement and cooling
- Trip mechanism response
- Rated operating voltage
- Number of poles tested together
The most important tested ratings include:
- Icu: Rated ultimate short-circuit breaking capacity
- Ics: Rated service short-circuit breaking capacity
- Icm: Rated short-circuit making capacity
- Icw: Rated short-time withstand current, where applicable
These ratings must always be checked at the actual system voltage.
Does a Double-Break MCCB Automatically Provide Isolation?
Not necessarily. Two physical contact gaps can improve interruption performance, but they do not automatically prove that the breaker is suitable for isolation.
Suitability for isolation depends on product construction, contact position indication, dielectric clearances, and compliance with the relevant requirements of IEC 60947-2.
Engineers should verify the isolation symbol and the manufacturer’s documentation for the exact MCCB model.

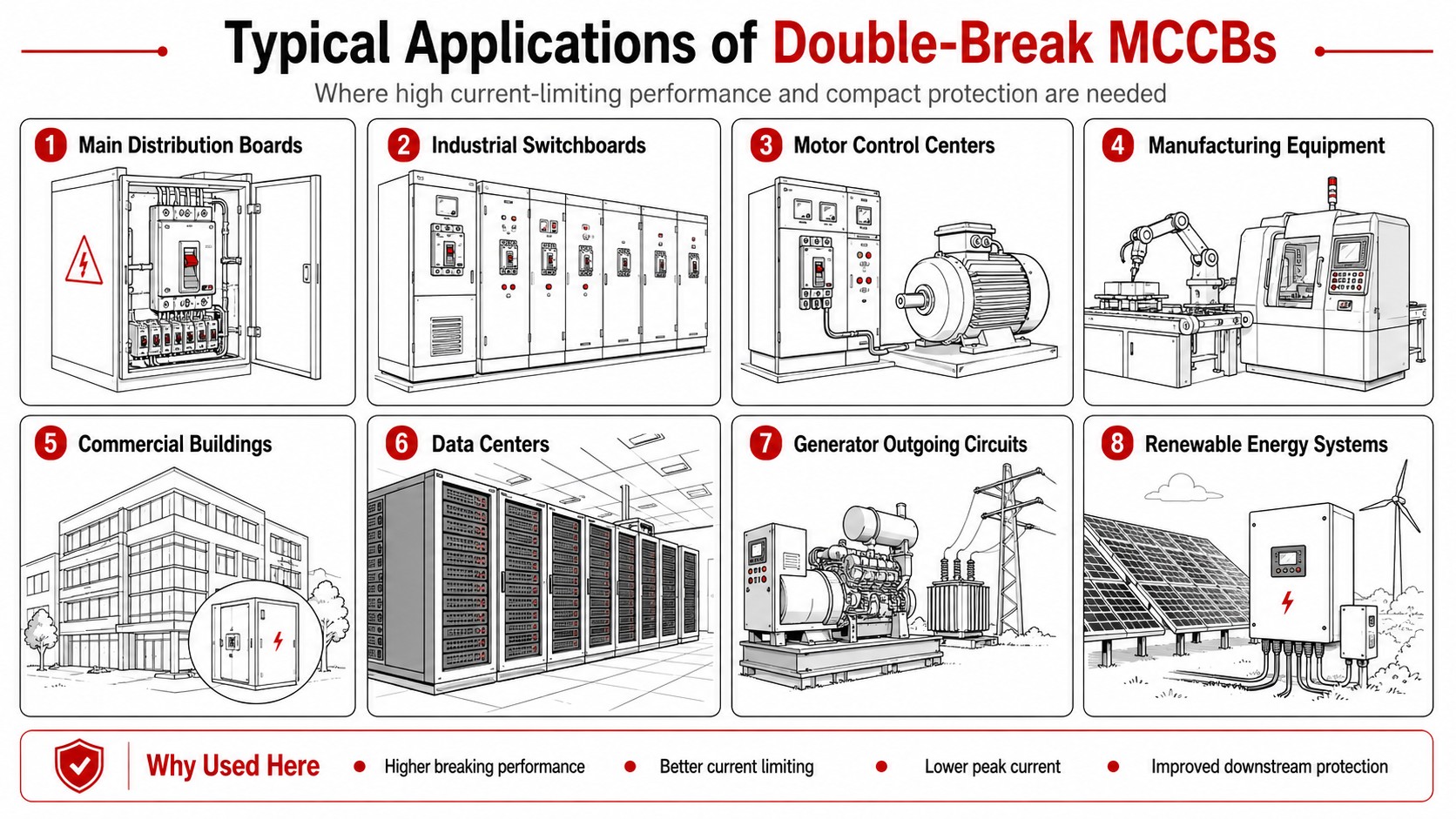

Typical Applications of Double-Break MCCBs
Double-break molded case circuit breakers are particularly suitable for installations where compact construction, high interruption performance, and current limitation are important.
- Main and sub-distribution boards
- Industrial switchboards
- Motor control centers
- Manufacturing equipment
- Commercial buildings
- Data centers
- Infrastructure projects
- Renewable-energy distribution systems
- Generator outgoing circuits
- Transformer secondary circuits
They are especially useful at installation points with high prospective short-circuit currents or where downstream equipment requires improved limitation of peak current and fault energy.

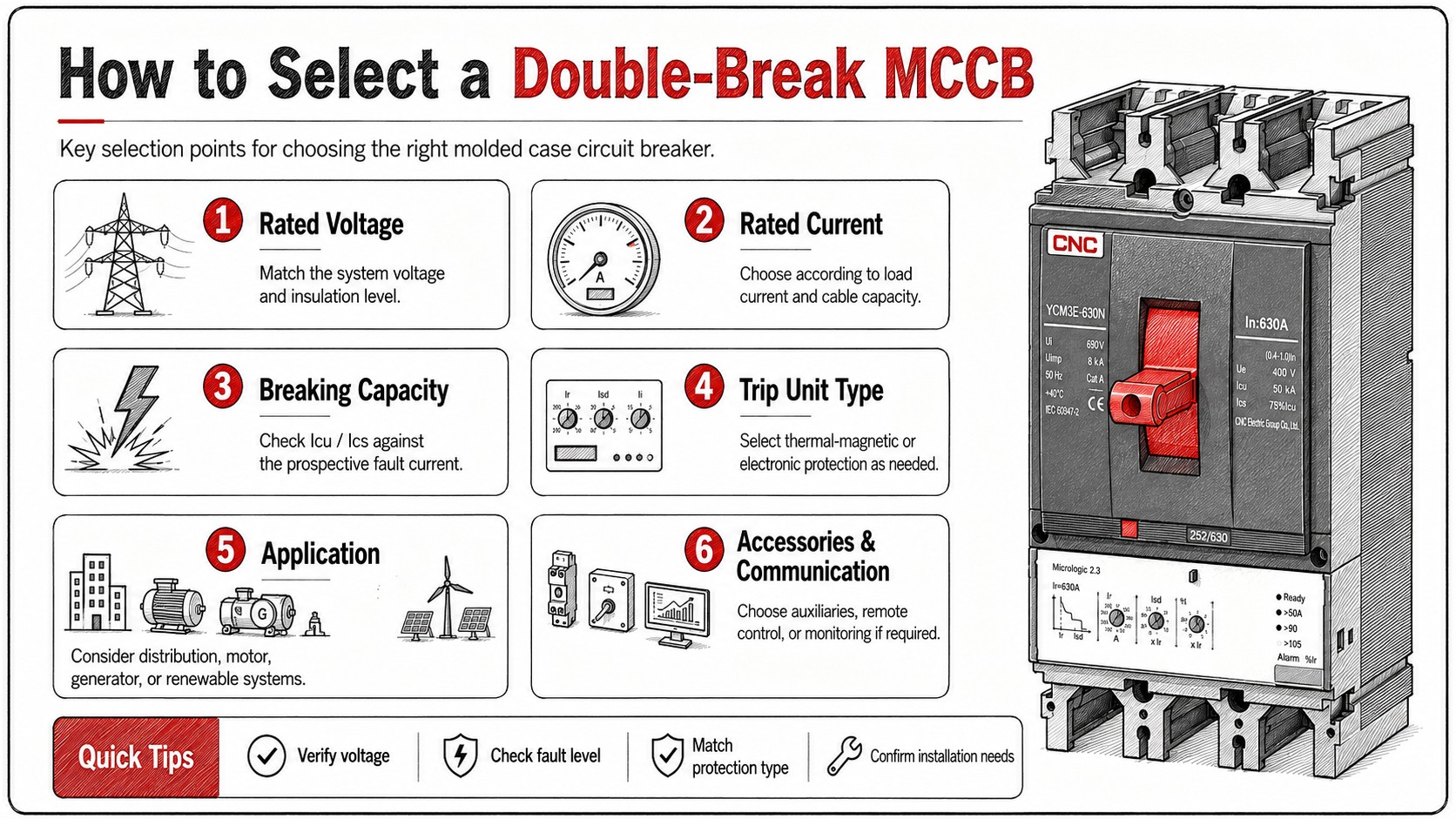

How to Select a Double-Break MCCB
Rated Operating Voltage
The rated operating voltage of the MCCB must be equal to or higher than the system voltage. Because breaking capacity may change at different operating voltages, Icu and Ics must be checked at the actual application voltage.
Rated Current and Frame Size
Select the rated current and frame size according to the load current, conductor capacity, ambient temperature, installation method, expected load growth, and required adjustment range.
Short-Circuit Breaking Capacity
The MCCB’s breaking capacity must be equal to or higher than the prospective short-circuit current at the installation point.
Do not compare circuit breakers only by the highest kA value shown in promotional materials. The corresponding voltage, pole configuration, and test standard must also be confirmed.
Trip Unit Type
Depending on the application, an MCCB may use:
- Fixed thermal-magnetic protection
- Adjustable thermal-magnetic protection
- Electronic trip protection
- Communication-enabled intelligent protection
Electronic trip units generally provide more flexible settings for overload, short-time delay, instantaneous short-circuit, and ground-fault protection.
Current-Limiting and Coordination Data
For applications where downstream equipment protection is important, review the manufacturer’s:
- Peak-current limitation curves
- I²t energy-limitation curves
- Selectivity tables
- Cascading or backup protection tables
- Cable protection data

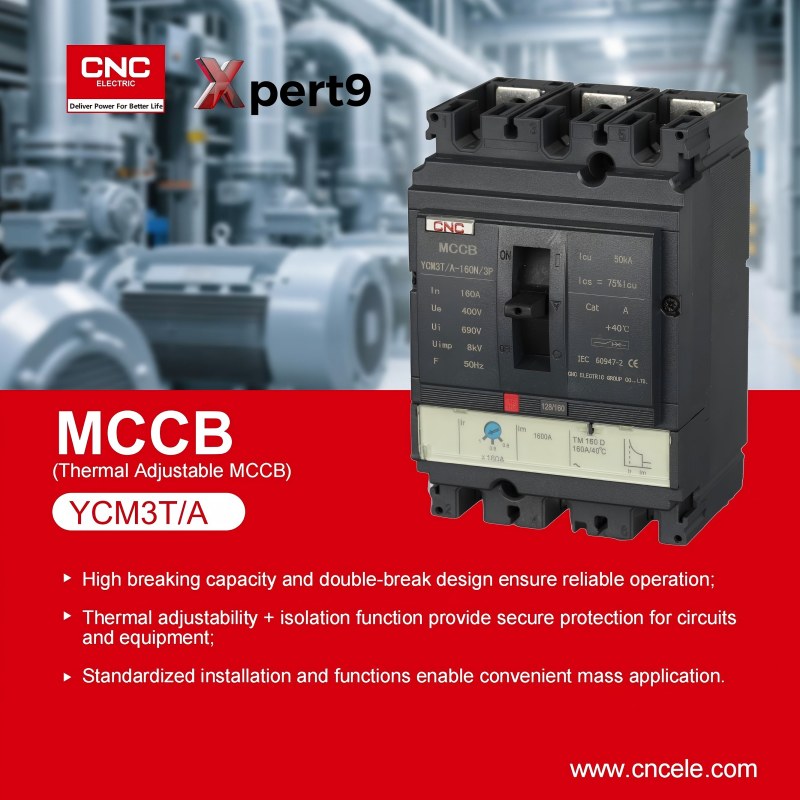

CNC YCM3 Series Double-Break MCCB
The CNC YCM3 Series Moulded Case Circuit Breaker is designed for low-voltage power distribution and equipment protection. The series adopts a compact and modular design and provides multiple frame sizes, protection configurations, and operating accessories for different distribution applications.
Depending on the selected model and trip-unit configuration, the YCM3 series can provide overload protection, short-circuit protection, instantaneous protection, adjustable operating settings, and intelligent monitoring functions.
The exact rated current, operating voltage, breaking capacity, trip characteristics, communication functions, and accessory options should be confirmed according to the selected YCM3 model and official technical documentation.
Common Misunderstandings About Double-Break MCCBs
Double-break means two circuit breakers inside one case.
Incorrect. It normally means that each pole creates two series interruption gaps through one coordinated contact mechanism.
Every double-break MCCB has a higher Icu.
Incorrect. Icu is determined by complete product testing, not by the number of contact gaps alone.
Double-break means no electrical arc is produced.
Incorrect. Electrical arcs still form when current is interrupted. The breaker must safely control, divide, cool, and extinguish them.
Every double-break MCCB is suitable for isolation.
Incorrect. Isolation suitability must be specifically declared and tested according to the applicable product standard.
The highest breaking-capacity rating is always the best choice.
Not necessarily. The breaker must also provide appropriate rated current, service breaking capacity, trip settings, selectivity, installation compatibility, and operating life.
Frequently Asked Questions
What does double-break mean in an MCCB?
It means that each pole forms two effective contact gaps when the breaker opens. These gaps create two series arcs during current interruption.
Why can two contact gaps improve current limitation?
The two series arcs produce a combined arc voltage that opposes the system voltage. Together with rapid contact repulsion, this can restrict the rise of short-circuit current and reduce its peak value.
Is a double-break MCCB always better than a single-break MCCB?
It can provide stronger current-limiting potential and high interruption performance in a compact frame. However, the final comparison must be based on tested Icu, Ics, I²t data, trip functions, and application requirements.
Can a double-break MCCB reduce arc-flash energy?
Rapid current limitation may reduce the energy passing through a fault. However, actual incident energy depends on the fault current, clearing time, system configuration, enclosure, and protective-device coordination. An arc-flash study may still be required.
What is the difference between Icu and Ics?
Icu is the maximum short-circuit current the breaker can interrupt under specified test conditions. Ics represents the short-circuit current the breaker can interrupt while remaining suitable for continued service according to the applicable test sequence.
Conclusion
A double-break MCCB creates two interruption points within each pole rather than one. When combined with a fast rotary contact mechanism and an effective arc chute, the structure can establish two series arc voltages, limit peak fault current, and reduce short-circuit let-through energy.
Its main advantages include:
- Rapid short-circuit current limitation
- Lower peak fault current
- Reduced thermal and mechanical stress
- High interruption performance
- Compact product construction
- Improved protection of downstream equipment
However, double-break construction should be considered one part of the MCCB’s overall design. Engineers must still verify the rated voltage, current, Icu, Ics, trip functions, current-limiting curves, selectivity data, and compliance with IEC 60947-2 before selecting a circuit breaker.
