Quick Answer
DC SPD and AC SPD cannot be used interchangeably unless the product is clearly rated and certified for both AC and DC applications.
An AC SPD is designed for alternating current distribution systems, such as residential, commercial, and industrial low-voltage panels. A DC SPD is designed for direct current systems, especially solar PV systems, battery systems, and other DC power circuits.
The main difference is not only the voltage type. DC systems have different arc characteristics, polarity requirements, voltage levels, and application environments. Using the wrong SPD type may reduce protection performance and create safety risks.
What Is an AC SPD?
An AC Surge Protective Device is used to protect AC electrical systems from transient overvoltage caused by lightning, power grid switching, transformer operation, or inductive load switching.
AC SPDs are commonly installed in:
- Main distribution boards
- Sub-distribution boards
- Residential electrical panels
- Commercial buildings
- Industrial control panels
- AC side of solar inverter systems

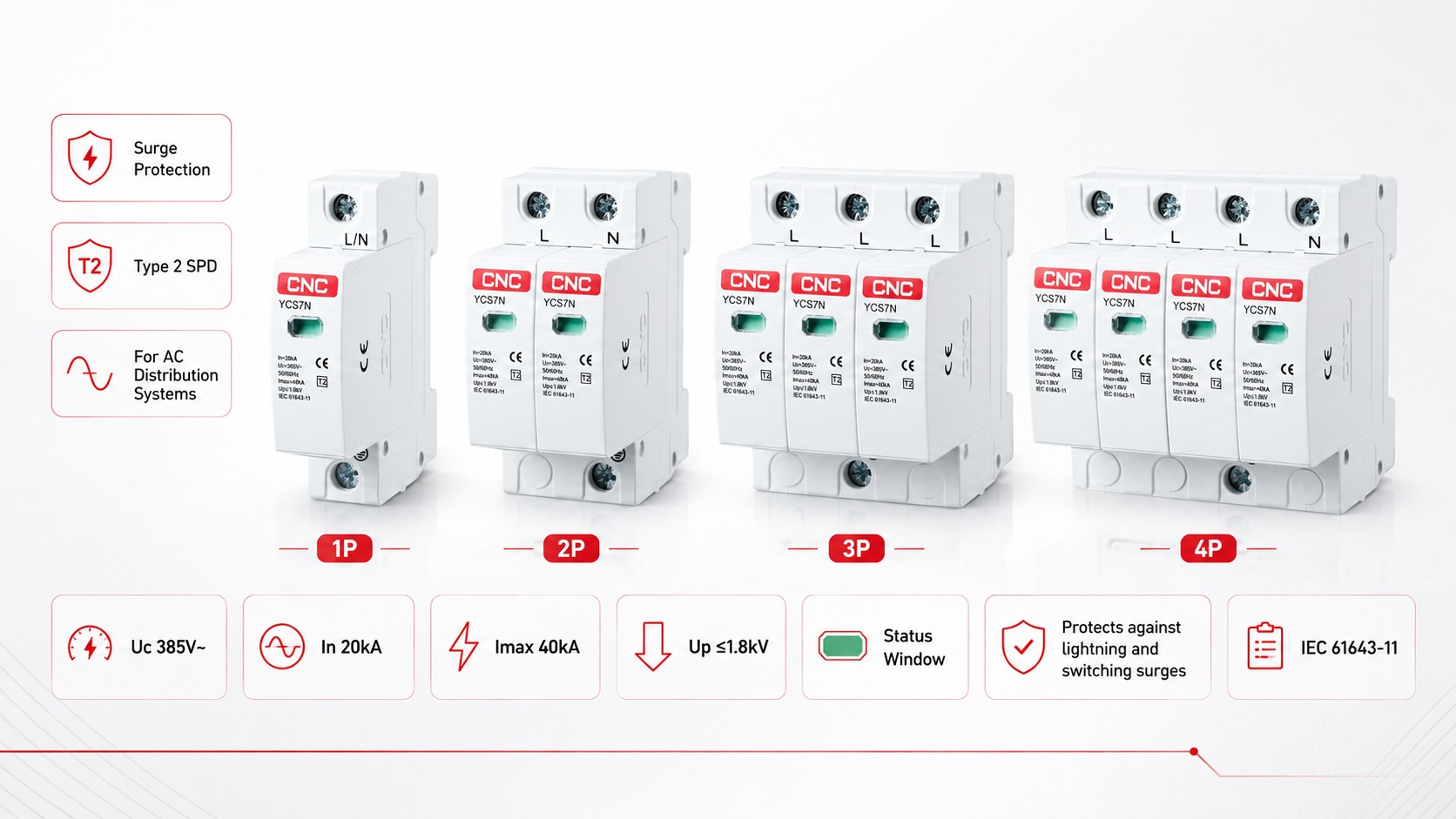

Common AC SPD markings include:
- L / N
- 1P, 1P+N, 2P, 3P, 3P+N, 4P
- 230V / 400V AC
- Type 1, Type 2, Type 1+2
What Is a DC SPD?
A DC Surge Protective Device is used to protect direct current systems from transient overvoltage. It is especially important in solar PV systems because PV arrays are usually installed outdoors and connected by long DC cables, making them exposed to lightning-induced surges.
DC SPDs are commonly installed in:
- Solar PV strings
- PV combiner boxes
- Inverter DC input side
- Battery energy storage systems
- DC distribution systems
- Outdoor renewable energy systems
Common DC SPD markings include:
- + / -
- Ucpv
- DC 600V / 1000V / 1500V
- Type 2 DC SPD
- Type 1+2 DC SPD for higher lightning risk applications
Key Differences Between DC SPD and AC SPD
| Item | AC SPD | DC SPD |
|---|---|---|
| System Type | Alternating current system | Direct current system |
| Common Application | Buildings, panels, AC equipment | Solar PV, battery, DC power systems |
| Common Marking | L / N | + / - |
| Voltage Type | AC voltage | DC voltage |
| Arc Behavior | Easier to extinguish due to zero-crossing | Harder to extinguish because DC has no natural zero-crossing |
| Typical Installation | Distribution board, AC panel, inverter AC side | PV combiner box, PV string, inverter DC side |
| Product Rating | Rated for AC system voltage | Rated for DC / PV system voltage |
| Can Replace Each Other? | No | No |
Why DC SPD and AC SPD Are Not the Same
1. AC and DC systems have different current characteristics
In an AC system, voltage and current change direction periodically. In a DC system, current flows in one direction continuously.
This means a DC surge protective device must be designed to handle DC-specific conditions, especially when interrupting or isolating faults.
2. DC arcs are more difficult to extinguish
One of the most important differences is arc behavior.
AC systems have natural zero-crossing points, which help the arc extinguish. DC systems do not have this natural zero-crossing, so once an arc occurs, it may be more difficult to stop.
That is why DC-rated SPD products require suitable internal design and certification for DC applications.
3. DC SPD must match polarity
AC SPD is usually connected according to L and N, while DC SPD must be connected according to positive and negative polarity.
In solar PV systems, incorrect polarity or unsuitable SPD selection may affect protection performance and system safety.
4. Solar PV systems often operate at higher DC voltage
Many PV systems operate at DC 600V, DC 1000V, or even DC 1500V. This is different from common low-voltage AC systems such as 230V or 400V.
A DC SPD must be selected according to the PV system’s maximum open-circuit voltage and the SPD’s Ucpv rating.
5. Application environment is different
AC SPDs are often used inside distribution boards or electrical panels.
DC SPDs, especially PV SPDs, are often used in outdoor or semi-outdoor environments, such as PV combiner boxes, rooftop systems, or solar farms. They may need to withstand temperature changes, humidity, dust, and lightning exposure.
Can AC SPD Be Used in a DC System?
In general, no.
An AC SPD should not be used in a DC system unless the manufacturer clearly states that the product is rated for DC use and provides the correct DC voltage rating and application standard.
Using an AC SPD in a DC system may cause several problems:
- Insufficient DC voltage withstand capability
- Incorrect protection performance
- Higher risk of continuous arc
- Wrong terminal marking and wiring
- Reduced safety in PV systems
- Failure under surge or fault conditions
For solar PV systems, a dedicated DC SPD / PV SPD should be selected.
Can DC SPD Be Used in an AC System?
Usually, no.
Even if a DC SPD has a high voltage rating, it does not mean it is suitable for AC distribution systems. The internal design, test standard, terminal marking, and application conditions may be different.
For AC distribution boards, use an SPD clearly rated for AC systems.
Where Should AC SPD and DC SPD Be Installed in a Solar PV System?
A solar PV system may require both DC SPD and AC SPD.
| Position | Recommended SPD |
|---|---|
| PV string side | DC SPD |
| PV combiner box | DC SPD |
| Inverter DC input | DC SPD |
| Inverter AC output | AC SPD |
| AC distribution board | AC SPD |
| Main distribution board | Type 1 or Type 2 AC SPD depending on risk level |
In a complete solar PV protection system, DC SPD protects the DC side before the inverter, while AC SPD protects the AC side after the inverter.
How to Choose the Right SPD Type
For AC SPD
- System voltage: 230V, 400V, etc.
- Power system type: single-phase or three-phase
- Grounding system: TN, TT, IT
- SPD type: Type 1, Type 2, Type 1+2
- Parameters: Uc, In, Imax, Iimp, Up
- Installation position: main panel or sub-panel
For DC SPD
- PV system voltage: DC 600V, 1000V, 1500V
- Maximum open-circuit voltage of PV strings
- Polarity: + / -
- SPD type: Type 2 or Type 1+2
- Parameters: Ucpv, In, Imax, Iimp, Up
- Installation position: combiner box or inverter DC side
Simple Selection Rule
| System | Use This SPD |
|---|---|
| Residential AC panel | AC SPD |
| Commercial building distribution board | AC SPD |
| Industrial AC control panel | AC SPD |
| Solar PV string side | DC SPD |
| PV combiner box | DC SPD |
| Inverter DC input | DC SPD |
| Inverter AC output | AC SPD |
| Main AC distribution board | AC SPD |
Choose AC SPD for AC circuits. Choose DC SPD for DC circuits. In solar PV systems, both may be needed at different positions.
CNC Electric AC and DC SPD Solutions
CNC Electric provides surge protective devices for both low-voltage AC distribution systems and solar DC applications.
For AC systems, CNC AC SPD products can be used in residential, commercial, and industrial distribution panels to protect electrical equipment from transient overvoltage.
For solar PV systems, CNC DC SPD products can be used in PV strings, PV combiner boxes, and inverter DC input protection. They can also work together with DC MCB, DC MCCB, DC isolator switches, PV fuses, and PV combiner boxes to build a complete photovoltaic protection solution.
Conclusion
DC SPD and AC SPD are designed for different electrical systems and should not be mixed casually.
An AC SPD is used for AC distribution systems, while a DC SPD is used for DC systems such as solar PV and battery applications. Because DC systems have different voltage characteristics, polarity requirements, and arc behavior, using the wrong SPD type may cause protection failure or safety risks.
For electrical panels, solar PV systems, and industrial installations, the safest rule is simple:
Use AC SPD for AC circuits, DC SPD for DC circuits, and always select the SPD according to the system voltage, installation position, and manufacturer’s rated application.
FAQ
Can AC SPD be used for DC?
No. AC SPD should not be used for DC systems unless the product is clearly rated and certified for DC applications. Solar PV systems should use DC-rated SPD.
Can DC SPD be used for AC?
Usually no. DC SPD is designed for DC systems and may not meet the requirements of AC distribution systems. For AC panels, use AC-rated SPD.
What is the main difference between AC SPD and DC SPD?
The main difference is the system type. AC SPD is used for alternating current systems, while DC SPD is used for direct current systems such as solar PV and battery systems.
Why is DC SPD important in solar PV systems?
Solar PV systems are exposed to outdoor environments, long DC cable runs, and lightning-induced surges. DC SPD helps protect PV strings, combiner boxes, and inverter DC inputs from transient overvoltage.
Where should DC SPD be installed in a PV system?
DC SPD is commonly installed in PV combiner boxes, near PV string inputs, or at the inverter DC input side, depending on system design and cable length.
Does a solar inverter need both AC SPD and DC SPD?
Many solar PV systems use DC SPD on the PV input side and AC SPD on the inverter output side. This helps protect both sides of the inverter.
What does Ucpv mean on a DC SPD?
Ucpv refers to the maximum continuous operating voltage for photovoltaic DC applications. It should be selected according to the maximum voltage of the PV string.
Are AC SPD and DC SPD visually different?
They may look similar, but their markings are different. AC SPD often uses L/N markings, while DC SPD usually uses +/− markings and DC voltage ratings such as 600VDC, 1000VDC, or 1500VDC.
