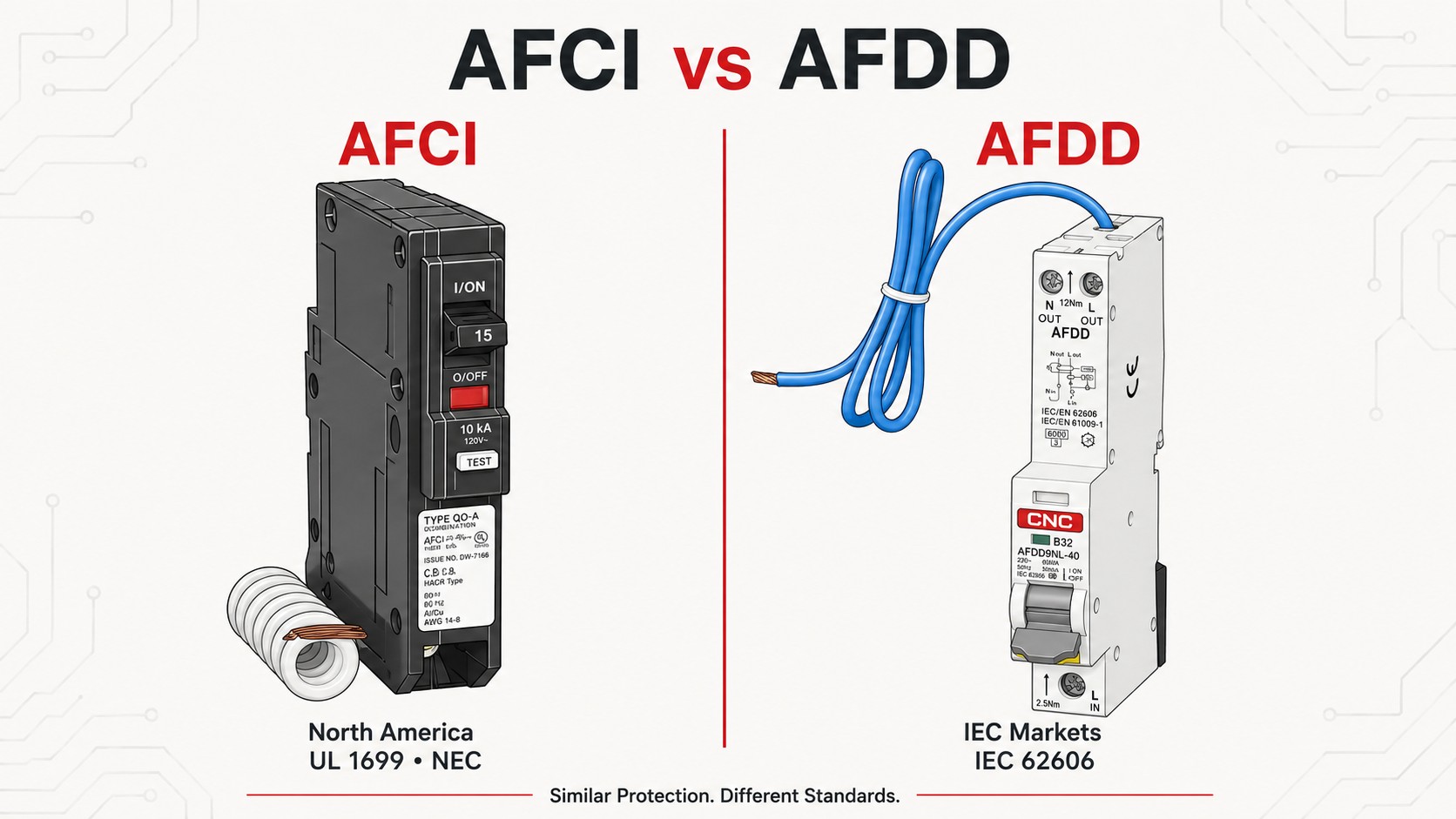

AFCI vs AFDD: What’s the Difference?

Electrical arcing can generate intense heat without drawing enough current to trip a conventional circuit breaker. If the arc continues, it may ignite cable insulation, wood, dust, or other nearby materials.

AFCIs and AFDDs are designed to identify dangerous arc-fault characteristics and disconnect the affected circuit. Although their safety purpose is similar, they belong to different terminology, standards, certification systems, and regional markets.

AFCI vs AFDD: Quick Answer

An AFCI, or Arc-Fault Circuit Interrupter, is the term mainly used in North America. It is commonly associated with UL 1699 and installation requirements such as NEC Article 210.12.

An AFDD, or Arc Fault Detection Device, is the term used in IEC-based markets. Its principal product standard is IEC 62606.

Therefore, AFCI and AFDD are functionally similar, but they should not automatically be treated as interchangeable products.

What Is an AFCI?

An AFCI is a protective device that monitors electrical waveforms for characteristics associated with dangerous arcing. When an arc fault is identified, the AFCI de-energizes the circuit to reduce the risk of fire.

AFCIs for the US market are commonly evaluated according to UL 1699. Common forms include circuit-breaker AFCIs, receptacle AFCIs, branch/feeder types and combination types.

Learn more from UL Solutions’ AFCI testing and certification guidance.

The word “combination” can cause confusion. A combination-type AFCI is designed to provide broader arc-fault protection; it does not automatically mean that the device includes GFCI protection.

A device providing both arc-fault and ground-fault protection is normally described as a dual-function AFCI/GFCI.

What Is an AFDD?

An AFDD detects arc-fault conditions in AC circuits and initiates disconnection before the fault can develop into a fire.

IEC 62606 applies to AFDDs for household and similar AC applications. The standard recognizes several product constructions:

• An AFDD with its own means of opening the circuit;
• An AFDD integrated with another protective device;
• A separate AFDD unit assembled with a declared protective device.

This means that “AFDD” describes the arc-fault protection function, but it does not necessarily mean that every AFDD provides overload, short-circuit and residual-current protection.

See the official IEC 62606 overview for further information.

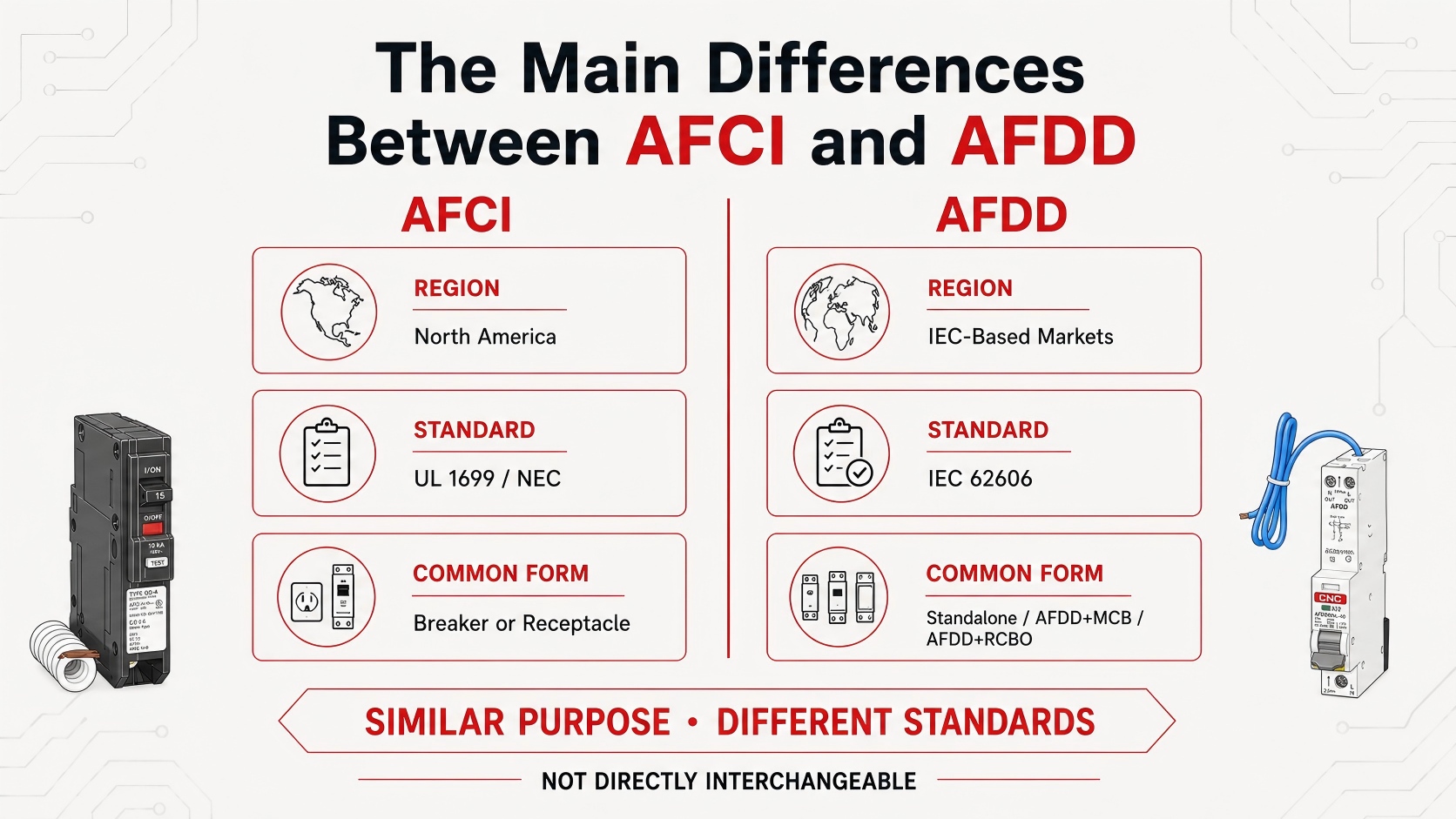

The Main Differences Between AFCI and AFDD

1. Terminology and Regional Use

AFCI is predominantly a North American term, while AFDD is normally used in countries following IEC or European standards.

The difference is not merely a translation choice. Each term is connected to a specific product assessment, certification and installation framework.

2. Product Standards

AFCIs for the US market are commonly evaluated according to UL 1699. Canadian products may be evaluated according to CSA C22.2 No. 270.

AFDDs are covered by IEC 62606. These standards use different classifications, test procedures, ratings and installation assumptions. Compliance with IEC 62606 does not automatically demonstrate compliance with UL 1699, and vice versa.

3. Product Construction

An AFCI may be installed as a circuit breaker or receptacle-type device. Some breaker-type AFCIs also provide conventional overcurrent protection.

AFDDs are frequently integrated into DIN-rail protective devices:

*The exact protection depends on the product construction and its declared installation arrangement.

4. Installation Requirements

AFCI installation in North America is determined by the adopted edition of the NEC, local amendments and the authority having jurisdiction. Requirements may therefore differ between states, cities and project types.

AFDD requirements in IEC markets also vary. Designers should consider the applicable national wiring rules, building use, fire risk, cable arrangement and project specifications.

A product should never be selected solely because it is described online as an “arc-fault breaker.”

Do AFCIs and AFDDs Detect the Same Faults?

Both devices aim to identify dangerous electrical arcing that conventional overcurrent protection may not recognize quickly enough.

Typical causes of arc faults include:

• Damaged or crushed cables;
• Loose terminals and poor electrical connections;
• Deteriorated insulation;
• Broken conductors;
• Worn plugs or sockets;
• Cables damaged by screws, nails, furniture or rodents.

However, the precise detection capability depends on the device type and the standard under which it was tested. It is more accurate to compare product certificates and technical documentation than to assume every AFCI and AFDD provides identical protection.

An AFDD also does not replace every other protective device. Arc-fault, overcurrent, residual-current and surge protection address different electrical hazards.

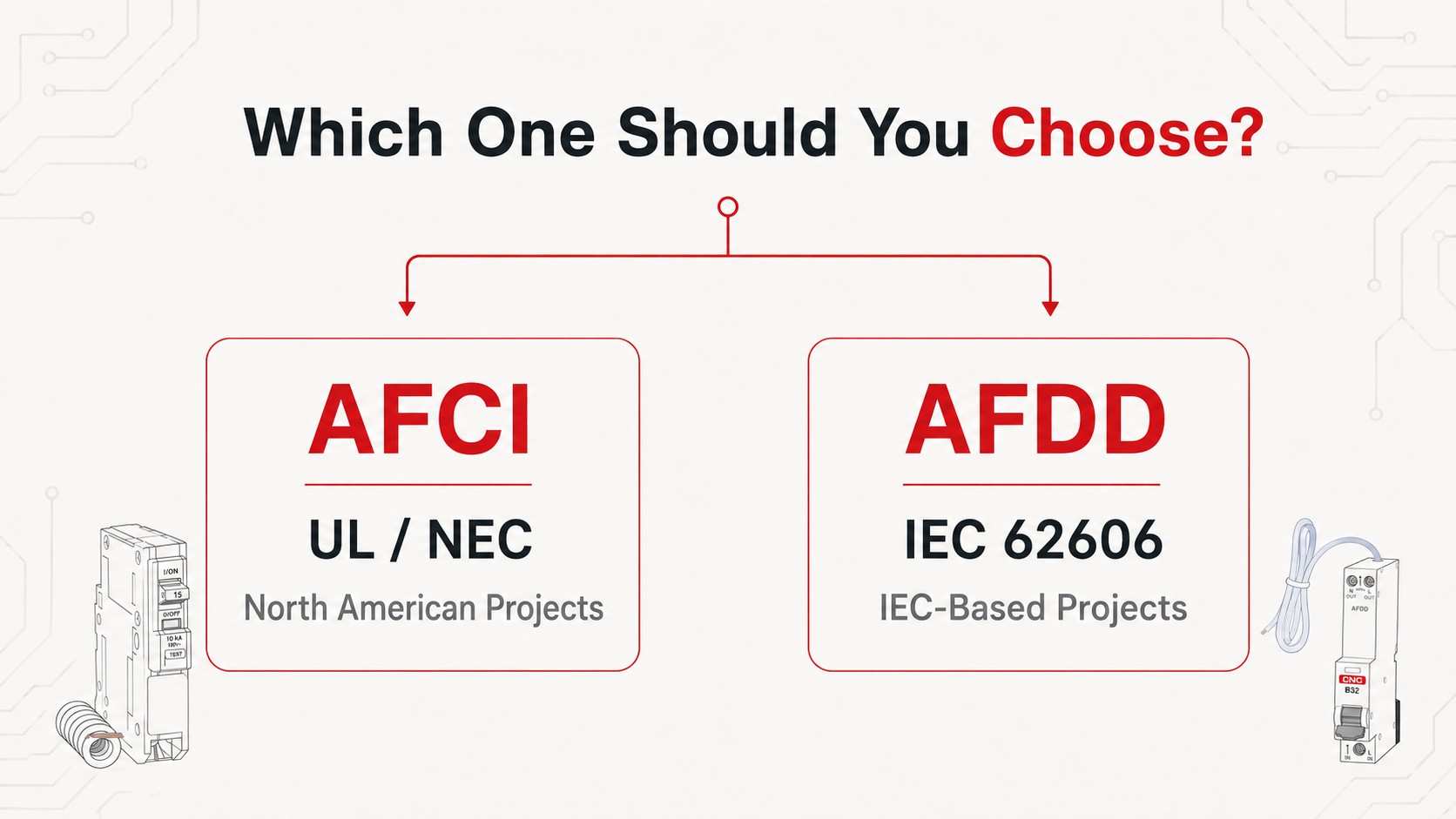

Which One Should You Choose?

The correct choice begins with the market, applicable electrical code and required certification.

Choose an AFCI when:

• The project follows the NEC or another North American electrical code;
• UL 1699 or CSA certification is specified;
• The distribution equipment is designed for the corresponding AFCI format;
• The local authority requires a listed AFCI.

Choose an AFDD when:

• The project follows IEC-based requirements;
• IEC 62606 compliance is specified;
• DIN-rail installation is required;
• The circuit requires an AFDD combined with MCB or RCBO protection.

Before ordering, verify the rated voltage, rated current, number of poles, breaking capacity, residual-current characteristics, installation system and required certificates.

CNC Electric AFDD Solutions

CNC Electric provides several AFDD configurations for different circuit-protection requirements:

• AFDD+MCB: combines arc-fault detection with overload and short-circuit protection.
• AFDD+RCBO: combines arc-fault, overload, short-circuit and residual-current protection.
• AFDD+Isolator: combines arc-fault detection and circuit isolation in a coordinated product structure.

The appropriate configuration should be selected according to the circuit design, applicable standard and required protective functions.

CNC AFDD products should primarily be specified for IEC-based applications. They should not be described as substitutes for UL-listed AFCIs in NEC projects unless the specific model holds the required North American certification.

Frequently Asked Questions

Conclusion

AFCIs and AFDDs both help reduce electrical fires caused by dangerous arcing, but they belong to different regulatory systems.

AFCI is primarily the North American UL/NEC solution, while AFDD is the IEC-based solution.

When selecting an arc-fault protection device, compare the applicable standard, certification, protective functions and distribution-system compatibility—not only the product name.
